TLS Digital Display Spring Testing Machine
Contact: Jessica Skype: jessica-hssd
Application:
Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed, tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.
Main specification:
Model |
TLS- 005 |
TLS- 01 |
TLS- 02 |
TLS- 05 |
TLS- 1 |
TLS- 2 |
TLS- 3 |
TLS- 5 |
Max test force(N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
Structure |
Single column, double spaces(lower tensile,upper compression) |
|||||||
Control method |
Single chip control |
|||||||
Test accuracy |
1 class |
|||||||
|
Test force test arrange (F·S) |
2%~100%F·S |
|||||||
Test force value relative error |
≤±1% |
|||||||
Displacement value relative error |
≤±1% |
|||||||
Displacement resolution |
0.01mm |
|||||||
Deformation value relative error |
≤±(50+0.15L)um |
|||||||
Speed adjust range |
0.05-500mm/min(stepless speed regulating) |
|||||||
Speed relative error |
≤±1% |
|||||||
Effective tensile space |
Standard: 600mm Heighten: 850mm |
|||||||
Effective compression space |
Standard: 600mm Heighten:850mm |
|||||||
Pressure plate size |
110mm |
|||||||
Upper and lower platen parallelism |
≤0.05mm |
|||||||
Power supply |
AC220V±10%,50Hz |
|||||||
Dimension |
550×400×1600mm |
|||||||
Weight |
About 100kg |
|||||||
Main Features:
1. Automatic calibration: system can automatically realize the accuracy of the calibration value
2. Automatic stop: After the sample broken, the moving beam automatic stop.
3. Automatic display: Real-time display two kinds curves: spring testing force and height, test force and deformation
4. One point or multi-point test: can preset standard values, upper and lower deviation, automatically determine whether spring qualified, lower or higher than the standard value of the standard value;
5. Measurements can be segmented, and can be calculated each segment stiffness (elastic coefficient) K, and the average stiffness;
6. Automatic return: beam automatic return to initial position when testing finished.
7. Breakage judgment: sample after fracture,beam automatic stop moving
8. Limiting protection: Program control and Mechanical limiting protection.
9. Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working
Configuration:
1.Single column double space high strength main unit |
1set |
1.1 Precision arc synchronized deceleration system |
1set |
1.2.Taiwan ABBA high precision ball screw assembly |
1set |

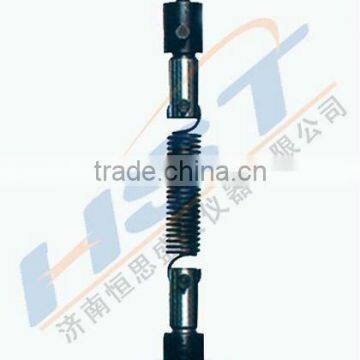

1.3.Special Tensile grip |
1set |
1.4.Special compression grip |
1set |
2. Test and control system |
1set |
2.1 High precision optical encoder |
1 pc |
2.2 Digital speed control system |
1 pc |
2.3 A full digital speed regulating motor |
1 set |
2.4 High precision load sensor |
1 pc |
2.5 Special test control system |
1 set |
2.6 Mini printer (optional) |
1 pc |
3 . Instruction book |
1 pc |
4.Certification |
1 pc |
5.Packaging list |
1 pc |
Packaging & Shipping
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
