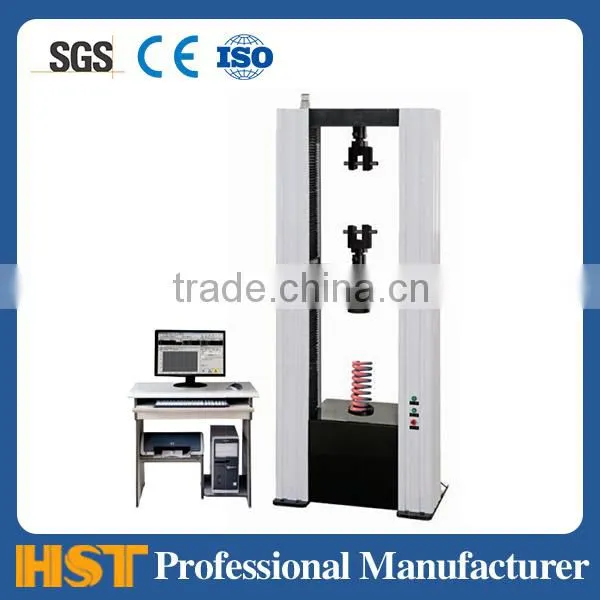

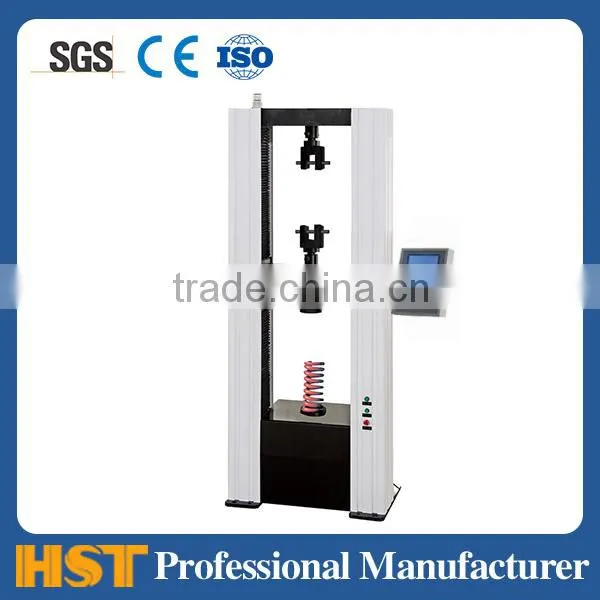

TLW computer control Tension Spring Testing Machine
Application:
Tension Spring Testing Machine Adopting electric load reduction system after deceleration to
driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment.
Mainly used to tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.
Main specification:
Model |
TLW- 10 |
TLW- 20 |
TLW- 30 |
TLW- 50 |
TLW- 100 |
TLW- 200 |
TLW- 300 |
|
Max test force(N) |
10kN |
20kN |
30kN |
50kN |
100kN |
200kN |
300kN |
|
Structure |
Four columns floor type(upper tensile, lower compression / upper compression, lower tensile) |
|||||||
Control method |
Computer automatic control |
|||||||
Test accuracy |
1 class |
|||||||
|
Test force test arrange (F·S) |
2%~100%F·S( stepless ) |
|||||||
Test force value relative error |
≤±1% |
|||||||
Displacement value relative error |
≤±1% |
|||||||
Displacement resolution |
0.01mm |
|||||||
Deformation value relative error |
≤±(50+0.15L)um |
|||||||
Speed adjust range |
0.05-300mm/min |
0.05-200mm/min |
||||||
Speed error |
≤±1% |
|||||||
Effective tensile space |
800 |
700 |
700 |
|||||
Effective compression space |
800 |
700 |
700 |
|||||
Pressure plate size |
400 |
500 |
550 |
|||||
Pressure plate diameter |
110mm |
|||||||
Power supply |
AC220V±10%,50Hz |
|||||||
Tension Spring Testing Machine
Main Features:
1.Automatically clearing: test force, displacement, according to the needs to be cleared at any time;
2.Automatic shifting: automatic switching the appropriate range to ensure accuracy load;
3.Automatic calibration: system can automatically realize the accuracy of the calibration value
4.Control method:You can achieve a variety of control method, test force, test speed, displacement, etc., with the following features:
a) Setting the test force P, detect the spring deformation F;
b) Setting the deformation F, detect the spring test force P;
c) Setting the test force P, detect the remaining height of the spring ( or the tensile length of the tensile spring) H,
d) Setting the spring remaining height of the spring, ( or the tensile length of the tensile spring) H, detect the spring test force P; Can set the pre-compression height of the pre-compressed spring , the number of pre-compression can be arbitrarily set;
e) Setting max10 detection points (can be set into the return detection);
f) The detection of the spring deformation is in contact with the work pressure plate shall prevail, then the test should have the reaction force, the size of the test force (ie, the initial force) arbitrarily set;
g) The deformation caused by the sensor can be compensated. The deformation caused by the sensor and stiffness of the machine does not affect the accuracy of displacement.
With function of automatic stop when overload ;
5.Breakage judgment: sample after fracture,beam automatic stop moving
6.Limiting protection: Program control and Mechanical limiting protection.
7.Limiting protection: Program control and Mechanical limiting protection
Tension Spring Testing Machine

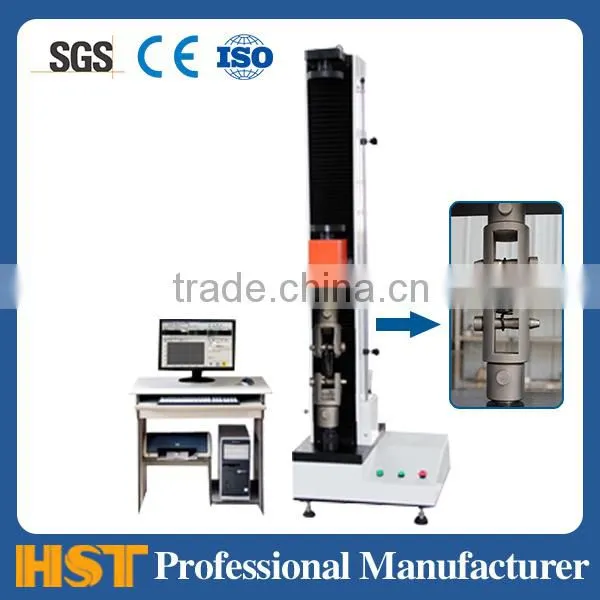

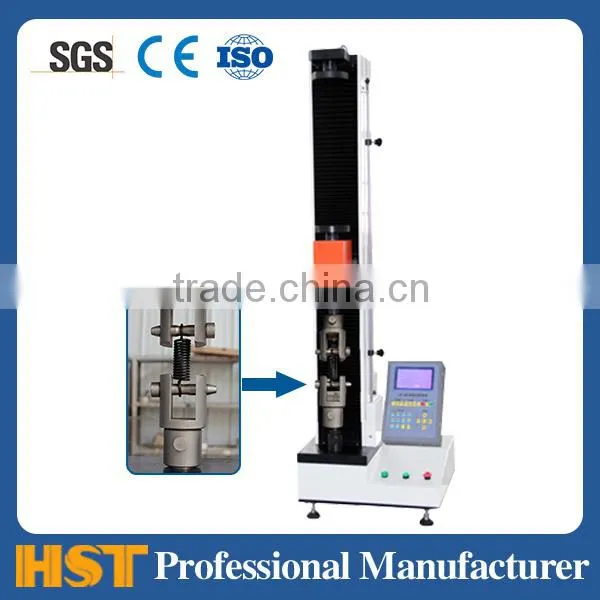

Grips: Tension Spring Testing Machine
Package: Tension Spring Testing Machine
CE Certificate: Tension Spring Testing Machine
