TLW Series Small Single Column Computer Control Spring Testing Machine

Name: TLW Series Small Single Column Computer Control Spring Testing Machine
Brand: hensgrand
SKU: 126939595

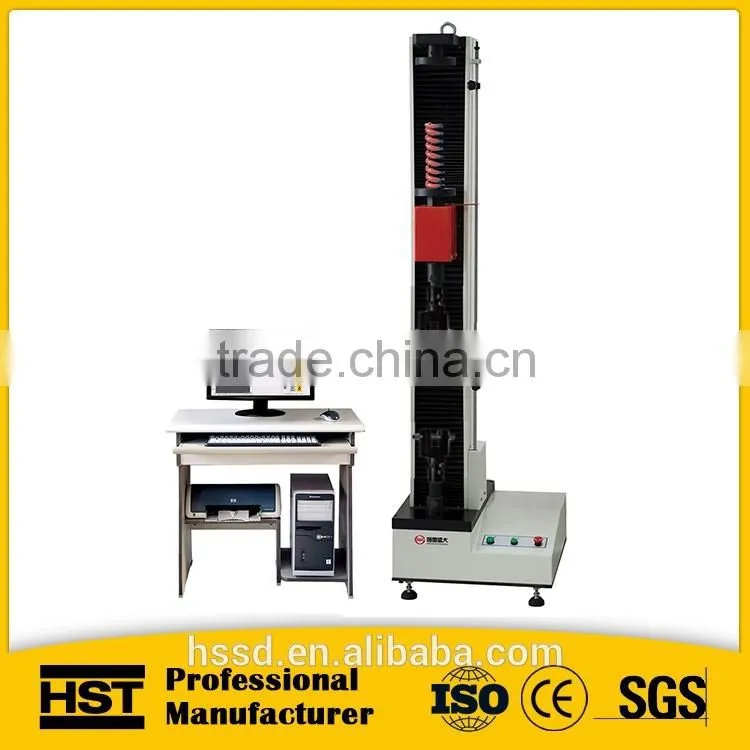

TLW Series Small Single Column Computer Control Spring Testing Machine thumbnail-1

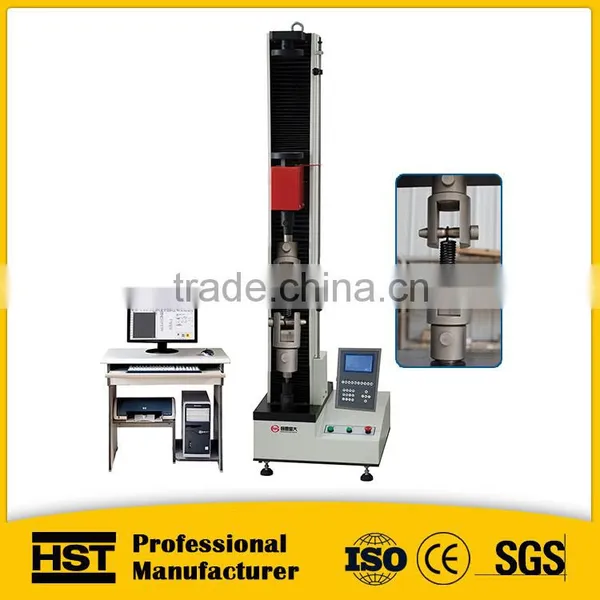

TLW Series Small Single Column Computer Control Spring Testing Machine thumbnail-2

TLW Series Small Single Column Computer Control Spring Testing Machine photo-1

TLW Series Small Single Column Computer Control Spring Testing Machine photo-2

US$ 990 - 2,100 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

hensgrand

Model Number:

TLW-01

Contact Supplier Request Quote Chat Now

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name hensgrand

Model Number TLW-01

Power Electronic

Usage Other, Spring Testing

TLW series small single column computer control spring testing machine

Product Application

Application:

Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment.

Mainly used to tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.

Specification Data

TLW computer control spring tester specification:

Model	TLW- 005	TLW- 01	TLW- 02	TLW- 05	TLW- 1	TLW- 2	TLW- 3	TLW- 5
Max test force(N)	50	100	200	500	1000	2000	3000	5000
Structure	Single column, double spaces(lower tensile,upper compression)
Control method	Computer control
Test accuracy	1 class
Test force test arrange (F·S)	2%~100%F·S
Test force value relative error	≤±1%
Displacement value relative error	≤±1%
Displacement resolution	0.01mm
Deformation value relative error	≤±(50+0.15L)um
Speed adjust range	0.001-500mm/min(stepless speed regulating)
Speed relative error	≤±1%
Effective tensile space	Standard: 600mm Heighten: 850mm
Effective compression space	Standard: 600mm Heighten:850mm
Pressure plate size	110mm
Upper and lower platen parallelism	≤0.05mm
Power supply	AC220V±10%,50Hz
Dimension	5504001600mm
Weight	About 100kg

Main Features:

1.Automatically clearing: test force, displacement, according to the needs to be cleared at any time;

2.Automatic shifting: automatic switching the appropriate range to ensure accuracy load;

3.Automatic calibration: system can automatically realize the accuracy of the calibration value

4.Control method:You can achieve a variety of control method, test force, test speed, displacement, etc., with the following features:

a) Setting the test force P, detect the spring deformation F;

b) Setting the deformation F, detect the spring test force P;

c) Setting the test force P, detect the remaining height of the spring ( or the tensile length of the tensile spring) H,

d) Setting the spring remaining height of the spring, ( or the tensile length of the tensile spring) H, detect the spring test force P; Can set the pre-compression height of the pre-compressed spring , the number of pre-compression can be arbitrarily set;

e) Setting max10 detection points (can be set into the return detection);

f) The detection of the spring deformation is in contact with the work pressure plate shall prevail, then the test should have the reaction force, the size of the test force (ie, the initial force) arbitrarily set;

g) The deformation caused by the sensor can be compensated. The deformation caused by the sensor and stiffness of the machine does not affect the accuracy of displacement.

With function of automatic stop when overload ;

5.Breakage judgment: sample after fracture,beam automatic stop moving

6.Limiting protection: Program control and Mechanical limiting protection.

7.Limiting protection: Program control and Mechanical limiting protection.

Machine photos

computer control spring tension and compression testing machine:

Computer control spring tester photo:

Fixture photo:

Wooden Package:

Certifications

CE certificate:
