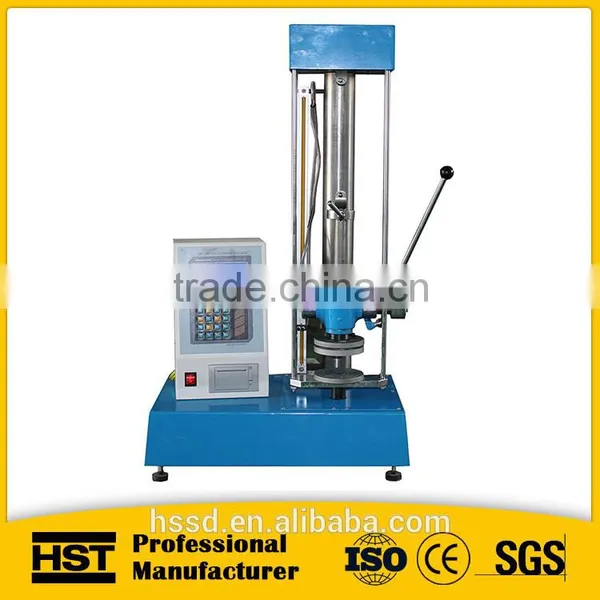

TLS-S manual digital display spring tester
Application:
This machine is based on the country's spring and compressive tester standards of technical requirement is made, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Can the compression spring, dish above precision extension spring, spring, spring, leaf-spring tower, card of spring, spring, spring, composite, gas springs, die spring, and special spring precision tension of the spring, stress, displacement, stiffness and strength test and analysis.
TLS-S manual digital display spring tester specification:
Max test force(N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
Test force accuracy(N) |
0.005 |
0.01 |
0.02 |
0.05 |
0.1 |
0.2 |
Displacement accuracy (mm) |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
|
Tensile test max distance between two pressure plate(mm) |
220 |
220 |
220 |
220 |
270 |
270 |
|
Compression test max distance between two pressure plate(mm) |
220 |
220 |
220 |
220 |
270 |
270 |
Plate size(mm) |
60 |
60 |
60 |
60 |
110 |
110 |

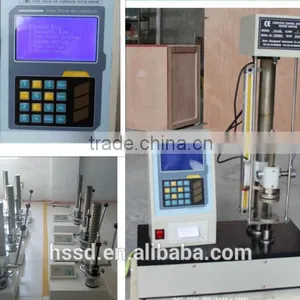

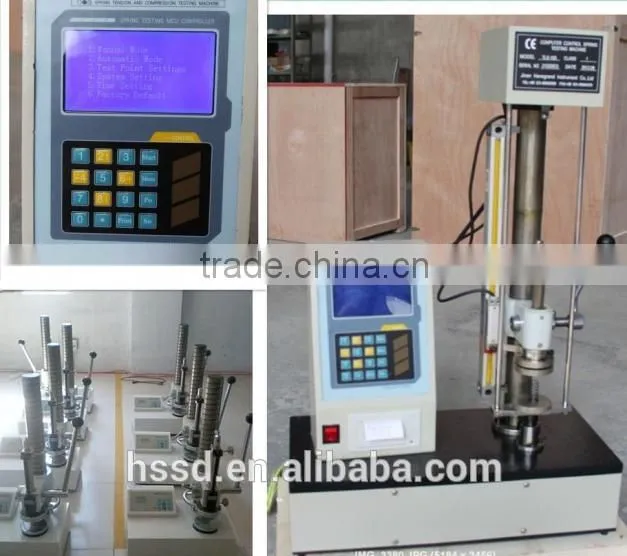

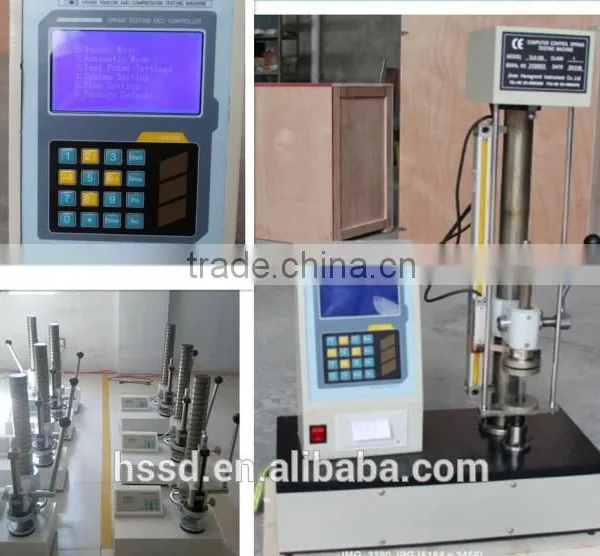

Manual operate spring tension and compression testing machine photo:

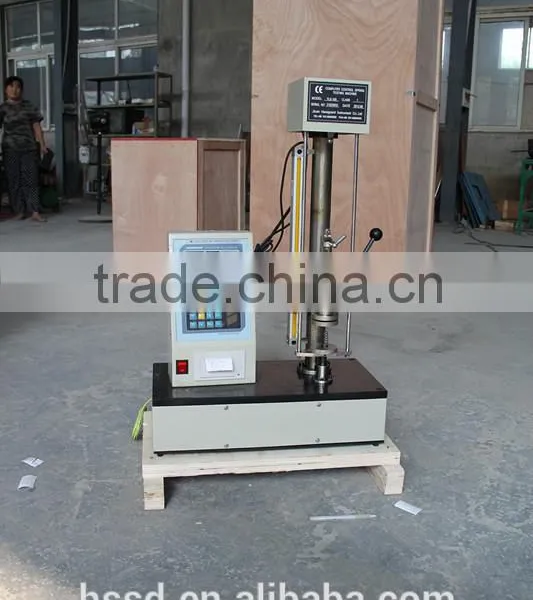

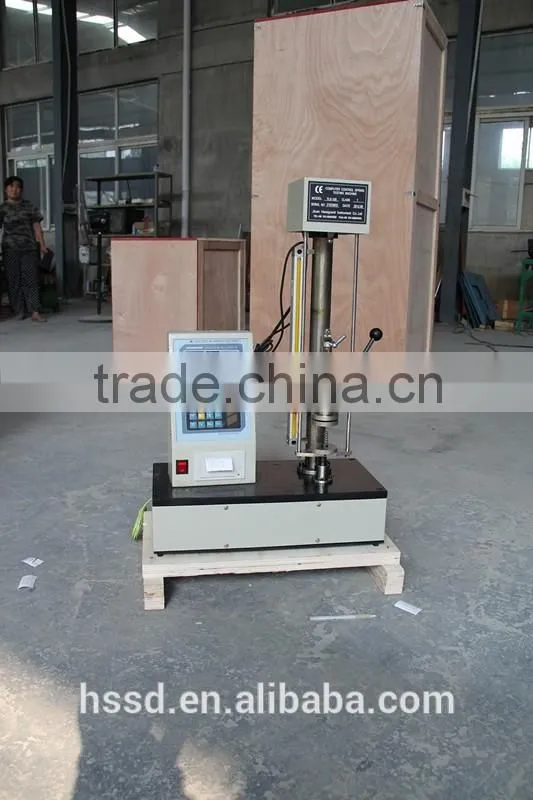

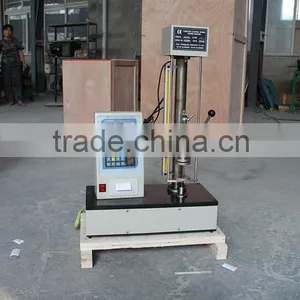

Wooden Package:
CE certificate:
Dear customer, if you need our testing machines, please send us inquiry without any hesitate ! We will supply our best service for you !
-------------
Adela Wang
Jinan Hensgrand Instrument Co.,Ltd.
Tel/WhatsApp: +86-18660396497
Fax:+86-531-81901323
TradeManager: cn1519065146tuuj
Please send us inquiry with your demand, we will reply within 24 hours.
10KN-300KN spring testing machine
