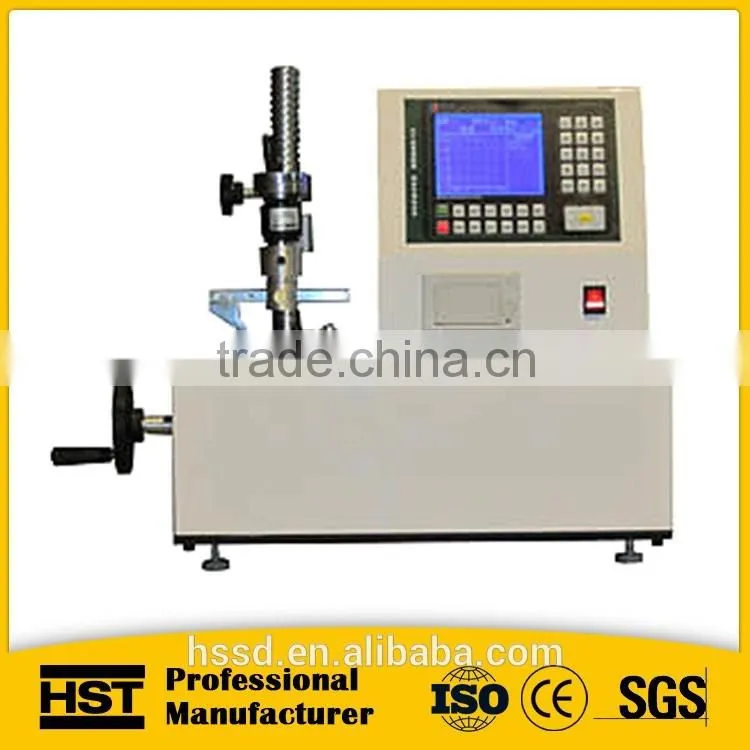

cheap manual TNS digital display spring torsion testing machine
Application:
TNS series vertical manual Torsion Spring Torque Testing Machine applies to twist spring, spring, elastic elements of rotor rolls and friction of the
torsional horn, the test of torsional moment. It is the ideal testing equipment of industrial and
mining enterprises, the technical supervision, inspection arbitration, scientific research institutes,universities and quality inspection unit and other departments.
Door type digital display spring testing machine specification:
Model |
TNS-50 |
TNS-100 |
TNS-200 |
TNS-500 |
TNS-1000 |
TNS-2000 |
TNS-5000 |
|||
Max. Torque(N.mm) |
50
|
100
|
200
|
500
|
1000
|
2000
|
5000
|
|||
Test range |
2%-100% |
|||||||||
Test machine class |
1 class |
|||||||||
Test force Min reading value |
0.001 Nmm |
0.01 Nmm |
0.1 Nmm |
|||||||
Angle min reading value |
0.1° |
|||||||||
Torque indicate relative error |
≤ ±1% |
|||||||||
Spring test length |
0-70mm/ 0-160mm /0-260mm |
|||||||||
Test angle range |
0°-±9999.9° |
|||||||||
Torque dish diam |
100mm |
180mm |
||||||||
Loading method |
Manual Loading |
|||||||||
Power supply |
AC 220V/50Hz |
|||||||||
Wooden Package:
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
CE certificate:
