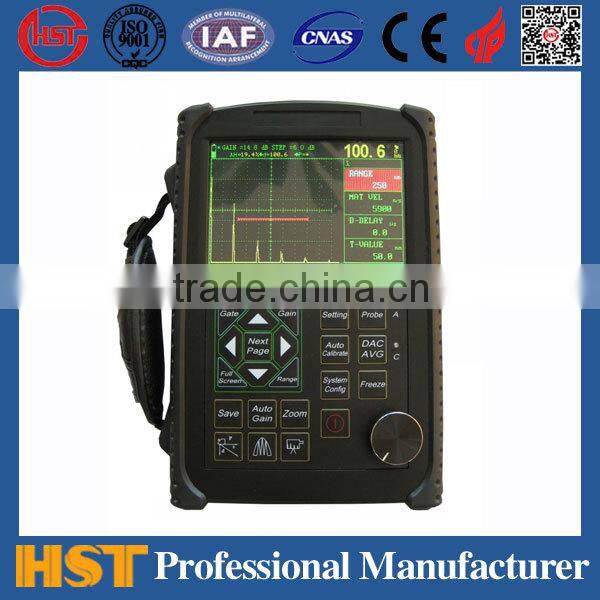

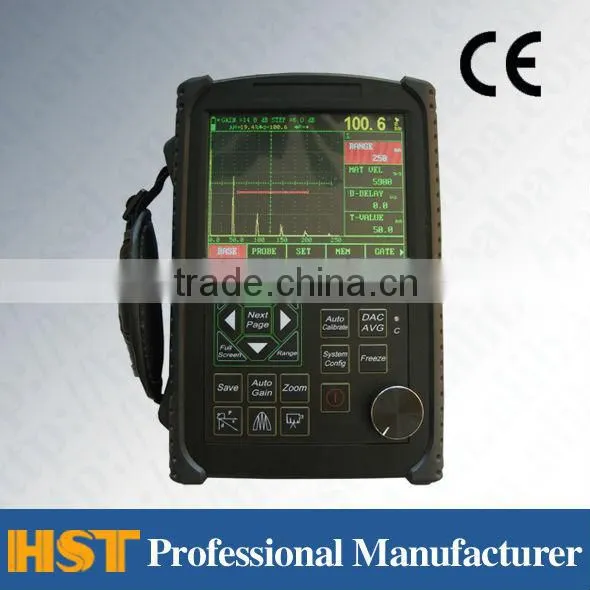

HUT650 Auto Calibration Digital Ultrasonic Metal Detector

FOB Price

USD $1,000 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HS or OEM
Model Number	HUT650

Product Description

HUT650 Auto Calibration Digital Ultrasonic Metal Detector

Product Description

Metal Ultrasonic Flaw Detector

Automated calibration,Automated gain

DAC,AVG,TCG,B scan,AWS

High-speed capture and very low noise

Solid metal housing

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

Features:

· Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,);

· Automated switch three staff gauge ((Depth d,level p,distance s);

· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

· Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

· 6dB DAC functions;

· Standards of test for DAC is saved.

· 500 independence setup, any criterion can be input freely, we can work in the scene without test block;

· Big memory of 1000 A graph

· Automated gain and gain scan;

· Peak Hold and Peak Memory;

· B scan;

· AWS D1.1

· Automated make video of test process and play; use upan,the length of video is unlimited.

· Powerful pc software and reports can be export to excel;

· Li battery, continue working time up to 10 hours;

· The embeded software can be online updated;

Other assistant function

· Display freeze;

· Automated echo degree;

· Angles and K-value;

· Lock and unlock function of system parameters;

· Electronic clock calendar ;

· Two gates setting and alarm indication;

· Gate and DAC alarm;

Specification:

Title	Parameter	Title	Parameter
Measuring Range(mm)	0 ~ 10000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ~ +3400
Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ~ 99.99
Dynamic range	≥34dB	Port Type	BNC(Q9)
Resolving Power	≥36dB	Operating Temperature (°C)	-20~50
Frequency Range(MHz)	0.5 ~ 20	H×W×D(mm)	240×156×50
Gain(dB)	0 ~ 120	Weight(kg)	1.0(with battery)
Material Velocity(m/s)	1000 ~ 15000

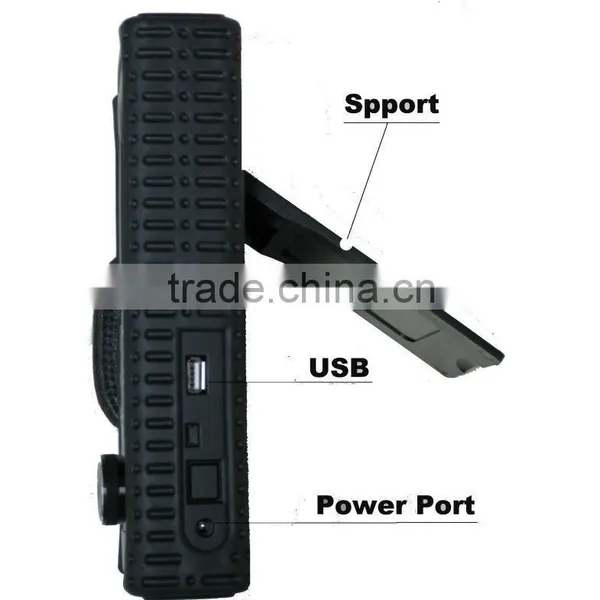

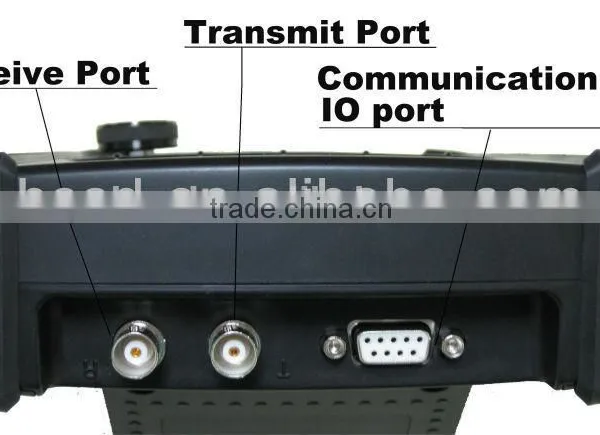

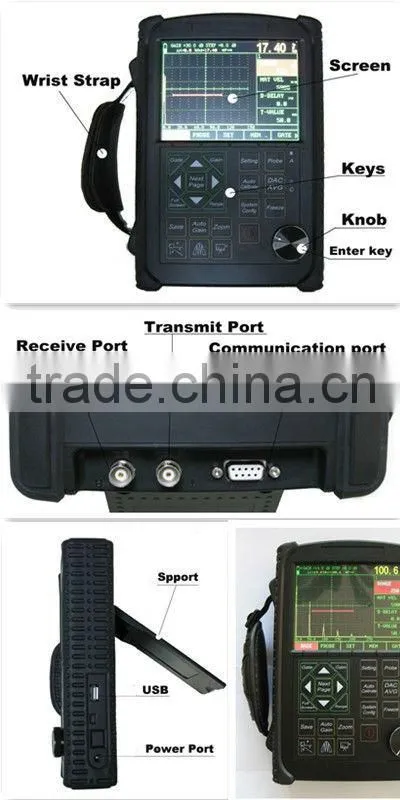

Ultrasonic Flaw Detector Drawings:

ultrasonic metal detector

Packaging & Shipping

Shipping & delivery:

It depends on your requirement. We offer as many shipping options as possible, we have cooperated with

some transpotation companies and shipping companies. If you need, we can transport products to our

country port or even shipping to your country port.

Machine' Packaging:

Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the

wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has

theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.

ultrasonic metal detector
