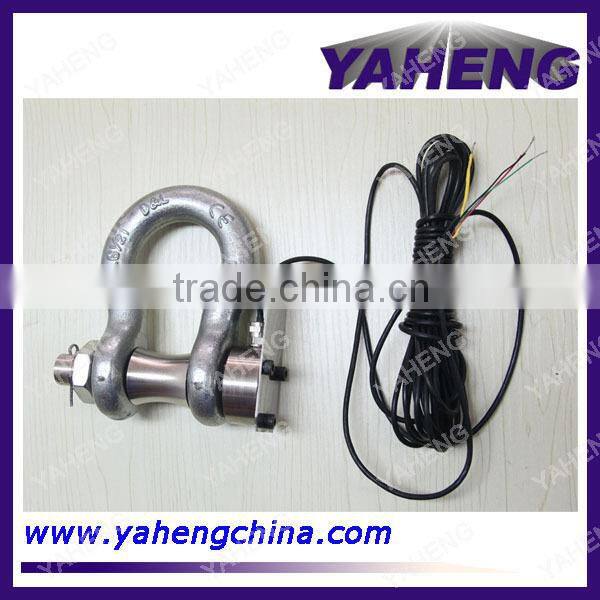

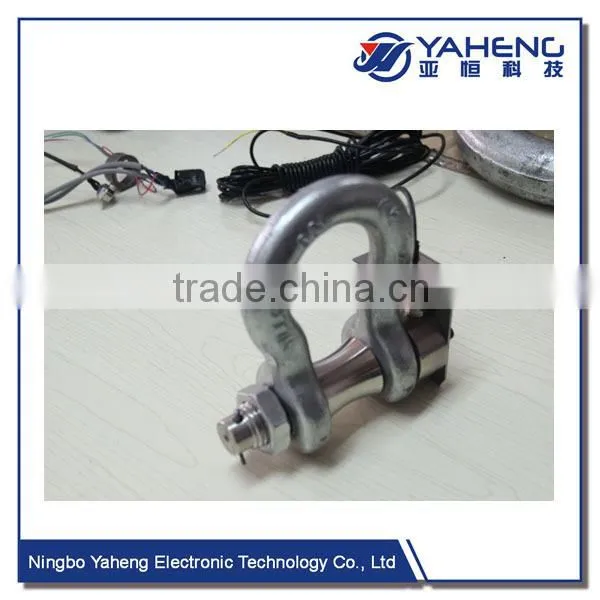

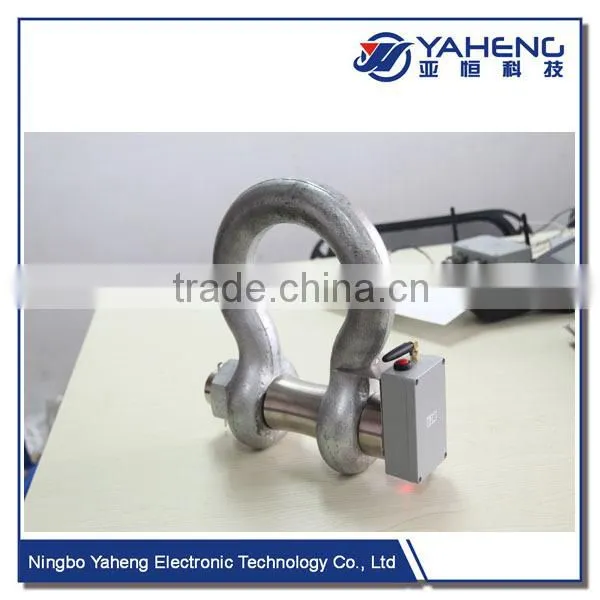

Shackles are recognized as simple and reliable standard components for chain and rope assemblies. By replacing the standard shackle with a load measuring shackle, the load in the line can easily be monitored. This is particularly useful in marine moorings and many other applications.
In a load measuring shackle the original pin is replaced with a load measuring pin, which has exceptional abilities under water in comparison to any other type of load cell. It is unaffected by the outside water pressure, but remains sensitive in the intended load measuring direction.

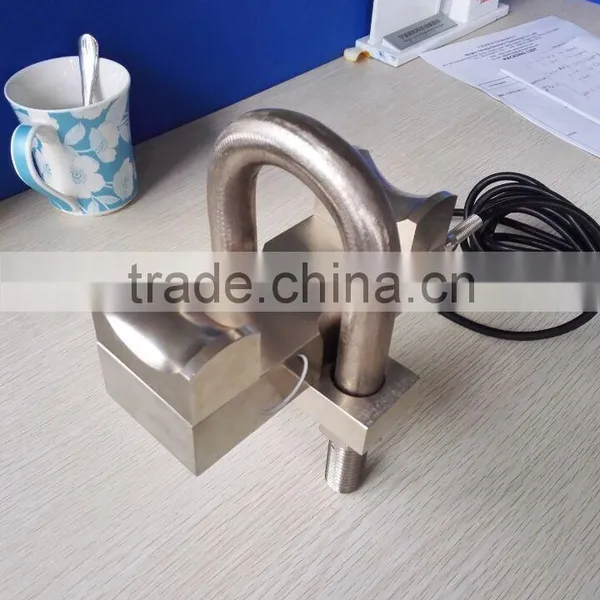

Our load measuring shackles are made using Green Pin bows as standard(‘D'or ‘Bow'). If necessary other bows can be specially selected or forged to achieve specific shape and size requirements. They are supplied with a fully calibration certificate.

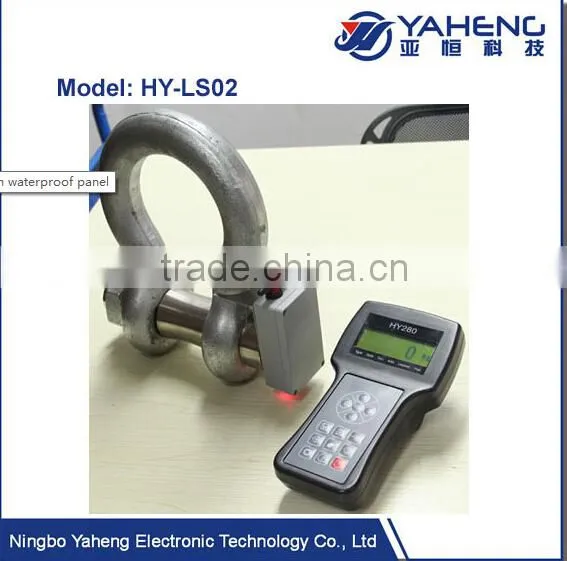

Various options of cables, connectors and internal amplifier are also available to tailor a shackle for a special application. YAHENG also supply a range of associated instrumentation.
Specification:
Capacity: |
3/6/10 /17/25/35/50/75/100t |
Proof Load: |
See Table Below |
Normal Output: |
2.0m V/V |
Recommended Excitation Voltage: |
10V |
Maximum Excitation Voltage: |
15V |
Zero Balance: |
+/-2% of Rated Load |
Bridge Resistance: |
700 ohm nominal, Full bridge |
Operating Temperature: |
-2 0 ℃ to + 80 ℃ |
Accuracy: |
Typically better than+/-0.75% if rated load |
No-Repeatability: |
+/-0.1% if rated load |
Environmental Sealing: |
Equivalent to IP68, As Required. |
150 to 1000t available on request.
Where particular requirements are critical or load cells of a higher specification are required, we would be delighted to assist.

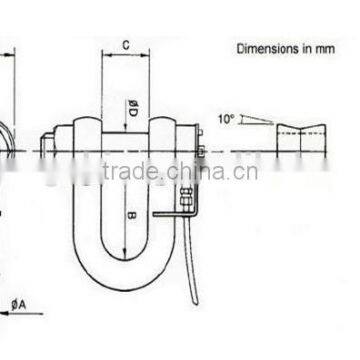

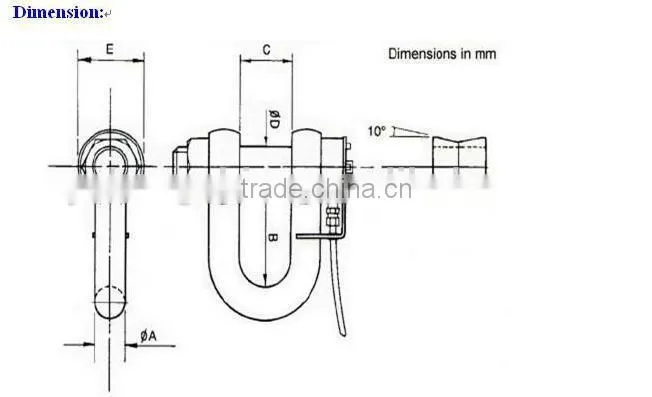

Dimension:
Full Load Ton |
Max Proof Load Ton |
Normal Size ‘A' |
Inside Length ‘B' |
Inside Width ‘C' |
Bolt Dia. ‘D' |
Outside Eye ‘E' |
Unit Weight Kg |
3 |
4.2 |
25 |
85 |
43 |
28 |
60 |
3 |
6 |
8 |
25 |
85 |
43 |
28 |
60 |
3 |
10 |
14 |
32 |
95 |
51 |
35 |
76 |
6 |
17 |
23 |
38 |
125 |
60 |
41 |
92 |
10 |
25 |
34 |
45 |
150 |
74 |
51 |
105 |
15 |
35 |
47 |
50 |
170 |
83 |
57 |
127 |
22 |
50 |
67 |
65 |
200 |
105 |
70 |
152 |
40 |
75 |
100 |
75 |
230 |
127 |
83 |
165 |
60 |
100 |
134 |
89 |
270 |
146 |
95 |
205 |
100 |
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
