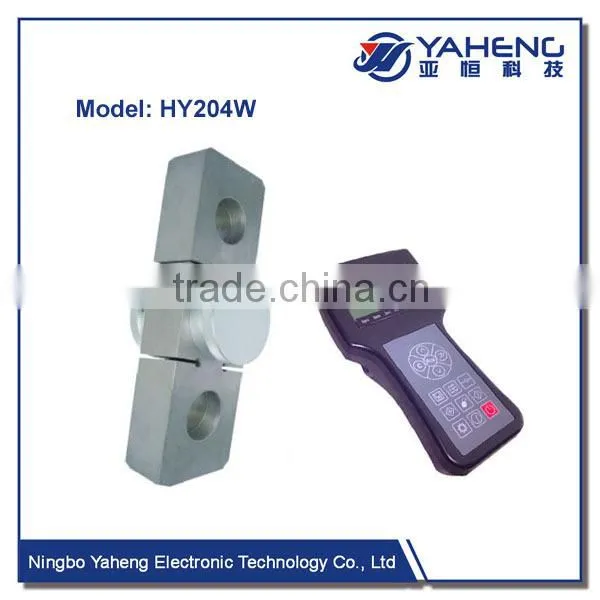

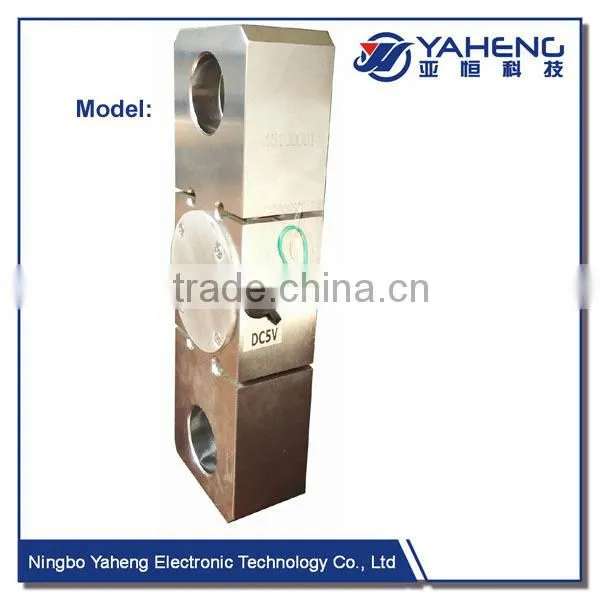

Model : HY204W
AD using the 24bit precision low-noise chip , about 100 million internal evidence weighing accuracy .
ultra-low power design , power circuit board smaller .
Large-capacity battery configuration , longer life.
Unique intelligent charging protection function , prevention of over- flow , overcharge phenomenon . The battery life of a stronger , more durable .
Good dynamic weighing performance , not because of swaying weighing .

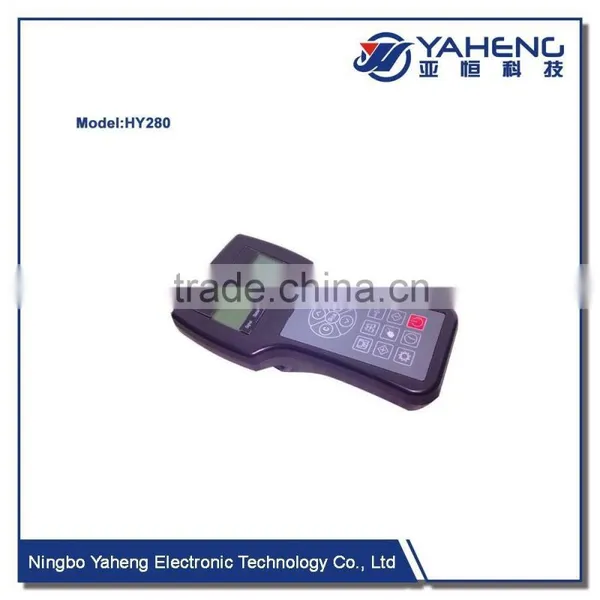

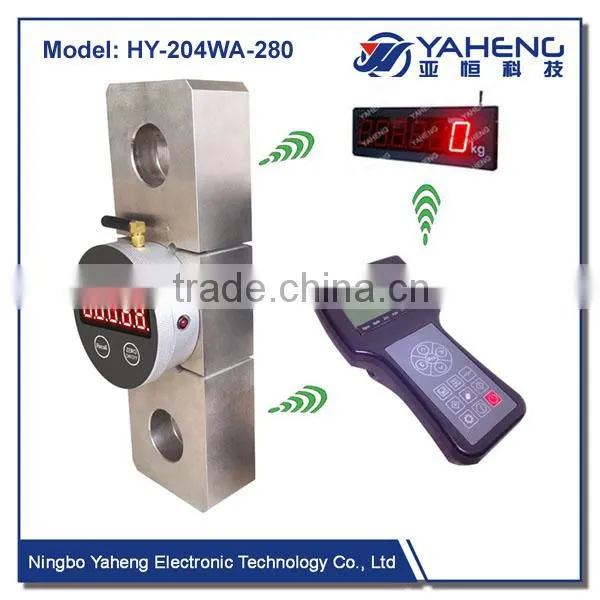

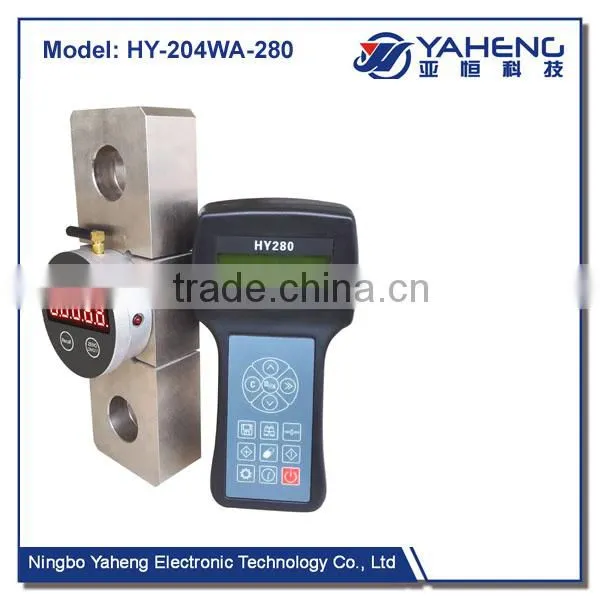

equipped with wireless meter for easy operation.
Wireless two-way control , the conventional communication distance of 300 meters above the control scale body switching machine .
Zaccumulated , accumulated automatically , peeled, peeled distance, to maintain the value , the display for dividing the value of any weight correction .
Overload, underload remind display, low voltage alarm, alarm when the battery capacity is less than 10% . Technical indicators.
built - in wireless communication module , the frequency rate of work set out in the open between 430MHz to 470MHz ISM band , license-free use .
The current weighing data transmission to less than 1km wireless desktop instrument / hand-held instrument or PC display or management.

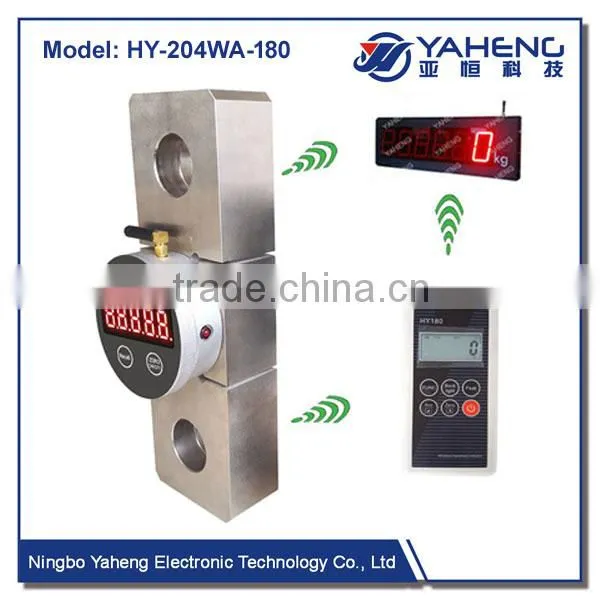

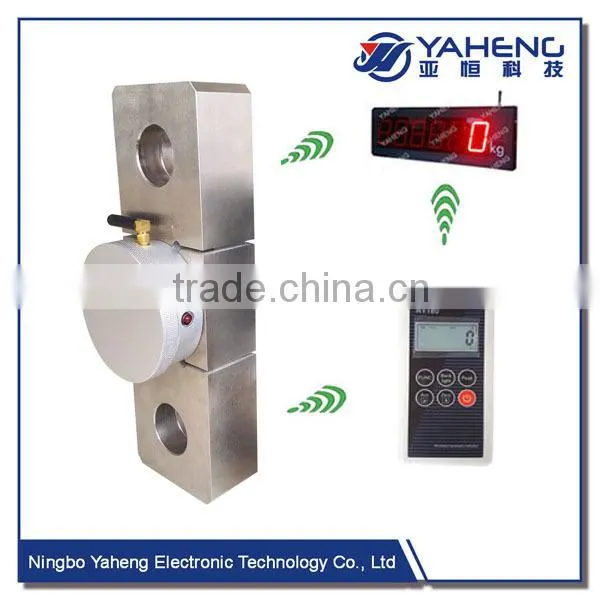

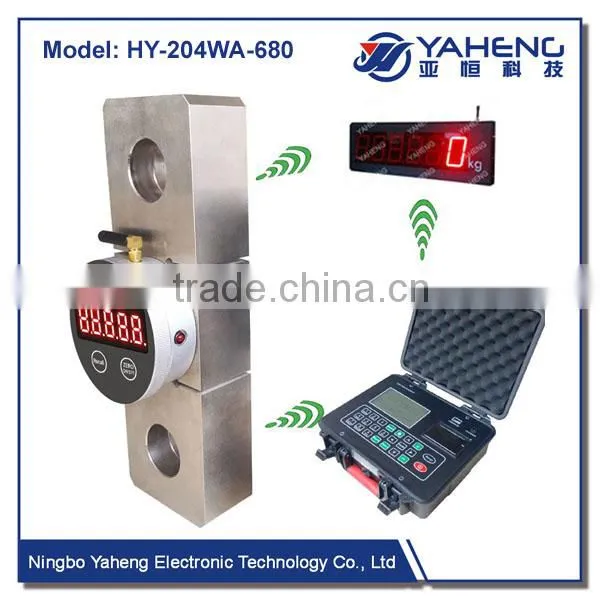

Optional wireless big screen.
Dimensions (In mm. 1mm = 0.03937 inch es)
Note: D o not open the s ender grou p, no any s hare parts th ere!
CAP./SIZE |
A |
A1 |
B |
W |
ΦS |
ΦH |
S hackle |
Hook |
1~5t |
230 |
160 |
76 |
34 |
28 |
21 |
7/8 |
5/ 8 |
10 t |
280 |
188 |
90 |
47 |
40 |
28 |
11/4 |
3 /4 |
20~3 0t |
370 |
230 |
125 |
55 |
53 |
5 3 |
13/4 |
- --- |
40~5 0t |
430 |
260 |
150 |
65 |
73 |
73 |
21/2 |
- --- |
60 |
430 |
260 |
150 |
85 |
73 |
73 |
21/2 |
- --- |
10 0~12 0t |
570 |
340 |
210 |
108 |
102 |
102 |
31/2 |
- --- |
Rated Load: |
1/2/3 /5/7.5/10/25/35/50/100t |
Wireless Frequency: |
470MHz |
Wireless Distance: |
Min : 200m ( default ) |
A/D Conversion Rate: |
≥50 times/seconds |
Battery Life: |
≥50 hours |
Sensitivity: |
(2.0±0.1%) m V/V |
Combined Error: |
±0.02% F.S |
Creep Error ( 30min ) : |
±0.02% F.S |
Zero Balance: |
±1% F.S |
Temp. Effect On Zero: |
±0.02% F.S/ 10℃ |
Temp. Effect On Span: |
±0.02% F.S/ 10℃ |
Input Resistance: |
750±5 Ω |
Output Resistance: |
702±2 Ω |
Insulation Resistance: |
≥ 5000M Ω |
Operating Temp. Range |
-30~+ 70℃ |
Maximum Safe Over Load: |
120%F.S |
Ultimate Over Load: |
200%F.S |
Recommend Excitation: |
10~12V DC |
Maximum Excitation: |
15V DC |
Sealing Class: |
IP67/IP68 |
Element Material: |
Alloy Steel, Stainless Steel |
Citation: |
GB/T7551-2008/ OIML R60 |
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
