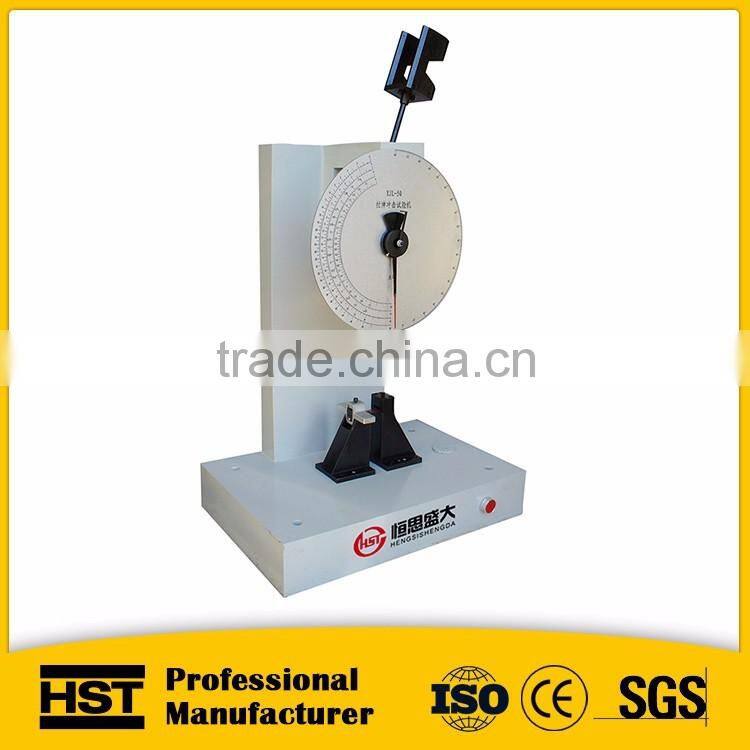

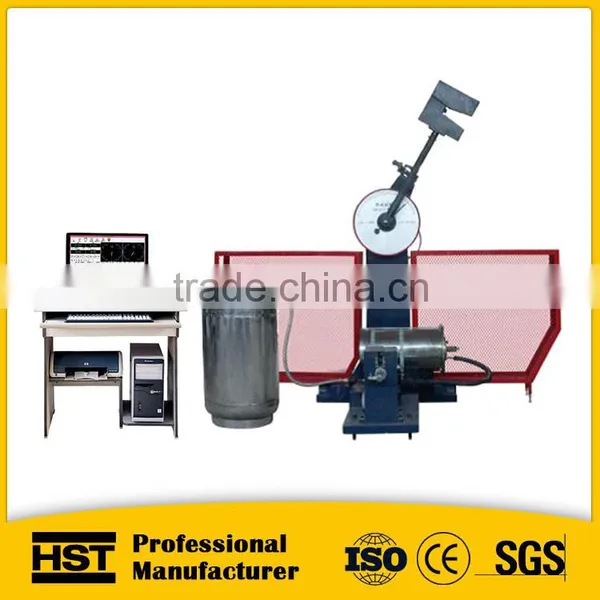

Factory low temperature charpy impact tester cooling chamber
JBDW-Y type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Automatic low temperature impact testing machine JBDW series specification:
Model |
JBDW-300Y |
JBDW-500Y |
||
impact energy |
150J |
300J |
250J |
500J |
Value of every grid |
2J |
1J |
5J |
2.5J |
Moment of pendulum(N.m) |
160.7695 |
80.3848 |
267.9492 |
133.9746 |
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
||
Pre-rising angle of the pendulum |
150° |
|||
Specimen bearer span |
40+0.2mm |
|||
Round angle of the jaw |
R1-1.5mm |
|||
Round angle of impact edge |
R2-2.5mm,R8±0.05(special order)mm |
|||
Angle accuracy |
0.1° |
|||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
Thickness of impact knife |
16mm |
|||
Dip angle of supporting surface of supports |
11°
|
|||
Cooling way |
compressor |
|||
Capacity of sample box |
20 |
|||
Range of low temperature |
0 --80°c |
|||
Precision of controlling temperature |
fluctuation ±0.5°C grades 1°C |
|||
Speed of sending specimen |
≤2S |
|||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
|||
Dimensions (mm) |
2200*1500*1900 |
2200 *1500*1900 |
||
Net Weight (kg) |
850 |
950 |
||
Impact Testing Machine Standard Configurations:
1). Main unit----------1 set
2). Pendulum
JB-300B |
JB-500B |
150J/300J--2 pcs |
250J/500J--2 pcs |
3). Span specimen plate (L = 40mm)----1 pc
4). Specimen centering plate (L = 40mm)(U, V)----1 pc
5). Stripping attachment----1 pc
6). Internal hexagonal wrench (S=30mm)---1 pc
7). Anchor bolts (M16x300mm)---4 pcs
8). Impact testing security guards----1 pc
9). Low temperature device---1 pc
10). Automatic sample sending and automatic positioning device---1 pc
11). PC Testing-software ---1 pc
12). Lenovo computer---1 set
13). HP Printer---1 set

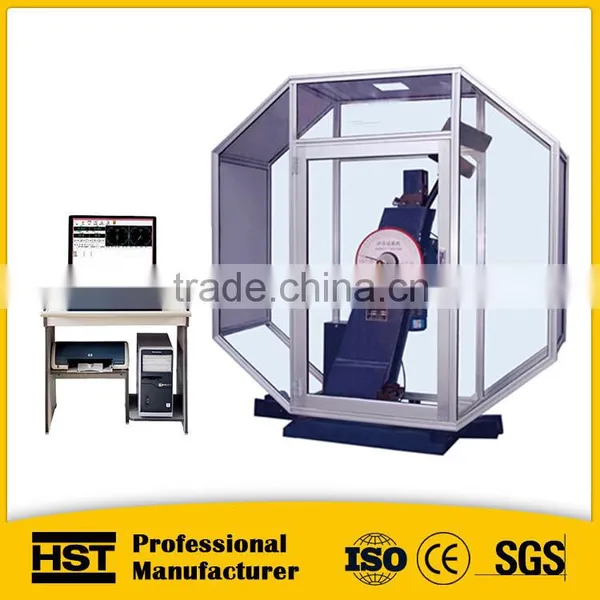

low temperate Impact Testing Machine : --- Charpy structure
Izod structure:
Impact Testing Machines in stock, can be shipped directly after receiving orders:
Impact Specimen Gap Broaching Machine: --- For cutting notch of the impact sample in impact test.
CST-50 Charpy Projector --- use for checking the processing quality of U or V-shaped notch of the impact specimen.
DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test . -----click picture for more details:
Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
CE certificate:
Company photo:
Our impact testing machines& other related products can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you ! Best Wishes !
-------------
