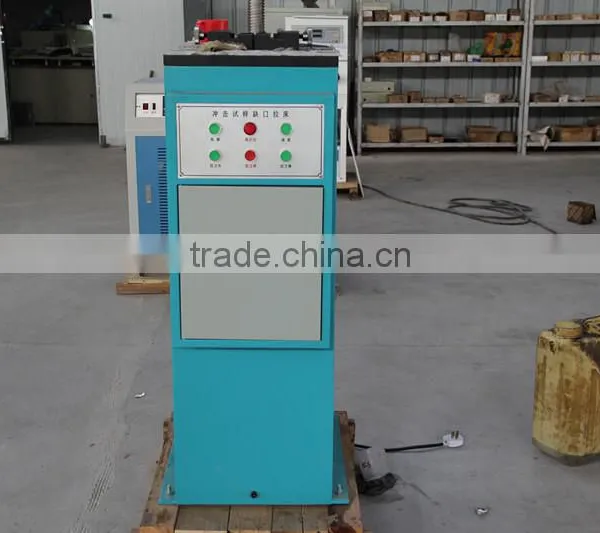

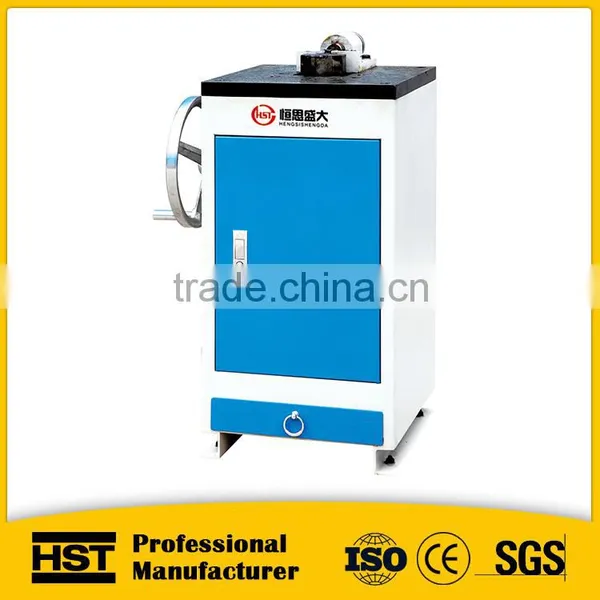

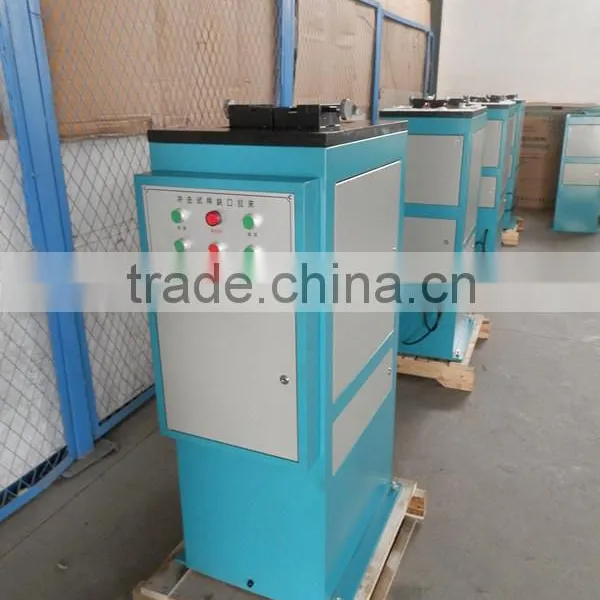

VU -2Y impact sample V or U notch broaching machine
1. Application
The machine is special processing equipment "metal Charpy notched impact test method" in the impact of the sample produced V-and U-requirements and developed according to GB / T229-2007, fully meet GB229-2007, ASTM, E23-02a, indicators specified in the standard EN10045, ISO148, ISO083 and so on.
2. Descriptions:
The machine consists of working parts, hydraulic drive parts, electrical control, lubrication and cooling section, and other auxiliary section. Random configuration 2mm V type and 2mm U type broaches, a notch forming, one time can successfully draw two standard notch, broaches the use of special materials, special technology precision manufacturing, high hardness, wear resistance, long service life.
impact testing sample making machine VU type:
Shape of sample notch |
2 mm V type,2 mm U type, (U 3 mm, U 5 mm is optional ) |
Sample size |
(10, 7.5, 5 mm) x 10 mm x 55 mm |
Cutting mode |
Hydraulic |
Journey of broach |
V2, U2, U3 350mm; U5 380mm |
Broaching Speed |
2.5 m/min |
Broach material |
W18 Cr4V |
Power supply |
220V 60Hz 400W |
Max. Dimension |
660x500x1240mm |
Weight |
200kg |
Impact specimen gap broaching machine:
Hydraulic Automatic cutting mode:
Manual cutting mode:
CE certificate :
