The Common rail injector tester
Parameter
| Product name | YB690 common rail injector tester |
| Function | Atomization testing/oil working conditions testing |
| Drive type | Bosch/Denso/Delphi and general |
| Power supply | AC187~240V/50Hz |
| Pulse width | >1900 us or 1.9MS |
| Injection rate | >2100 |
| Count times | 1--9999 |
| Working temperature | -30--50C° |
| Testing working condition |
Pre-injection point 200bar / discharge point 500bar / full load point 1500 ba |
1, the common rail injector connected directly or mount the holder to the high-pressure pipeline ordinary hand pressure verifier.
2. The injector brand select the appropriate connector. The injector harness and properly connected.
3. The injector brand, select the corresponding drive mode, this time to hear the injector solenoid valve armature sucked up "pop, pop" sound.
4, through constantly under pressure checker lever, provide a suitable injection pressure, the general pressure to take 30-40MPA, then you can observe injector atomization performance.
5, through the external cylinder, can Injector return fuel quantity and detecting.

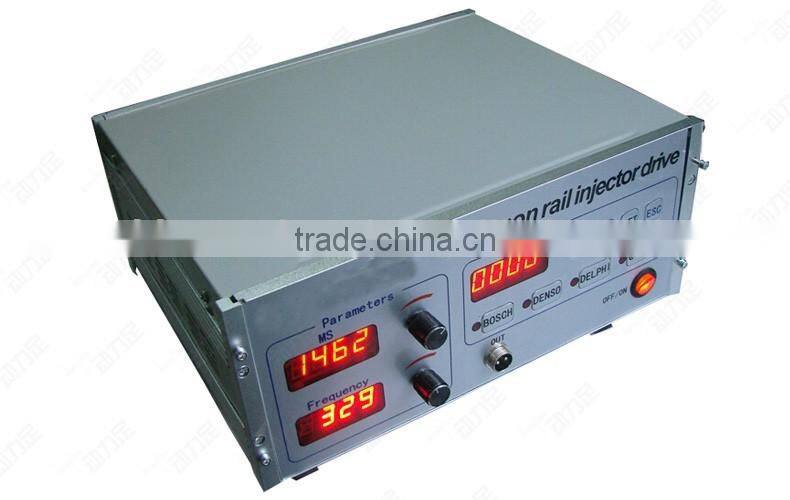

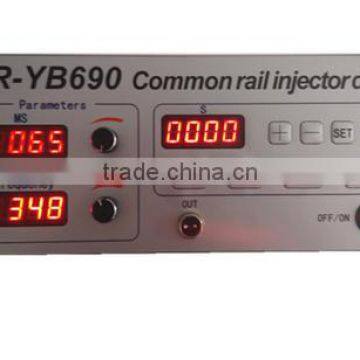

Real Photo
The Common rail injector tester ,
Your best choice ! ! !
