Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
Sunny Whatsapp:+86-15589960023 Skype: jessica-hssd
1. Application
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Host Features
3.1adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
3.2The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
4. Overload protection
4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.
5. Main specifications
Model |
WEW-300D |
Structure |
6 column |
Control way |
loading process manual control,computer automatic data dealing |
Max.load |
300kN |
Load accuracy |
≤±1% /≤± 0.5% |
Load range |
2%-100%FS /0.4%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1%/± 0.5% |
Displacement resolution |
0.01mm |
Displacement error |
≤±0.5% |
Max.piston stroke |
250mm |
Max piston moving speed |
0-140mm/min Manual adjustment |
Crosshead lifting speed |
200 mm/min |
Max. tension test space |
650mm (can customize) |
Max.Compression Test Space |
500mm (can customize) |
Column clearance |
430mm |
Clamping method |
Hydraulic clamp |
Round specimen clamping range |
Φ10-20 , Φ20-Φ32 (Φ4-Φ10 Optional) |
Flat specimen clamping range |
0-15 (15-30 Optional) |
Flat specimen clamping width |
75mm |
Compression plate size |
φ160mm |
Bending roller distance |
450mm |
Width of bending rollers |
120mm |
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
Weight (kg) |
900 |
6.Related Hydraulic machines:
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
WEW- 600D Computer display model WE-300D Digital display Hydraulic universal testing machine

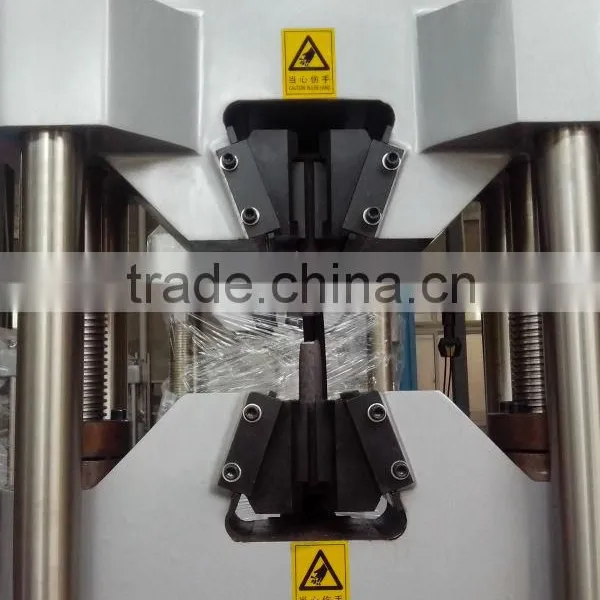

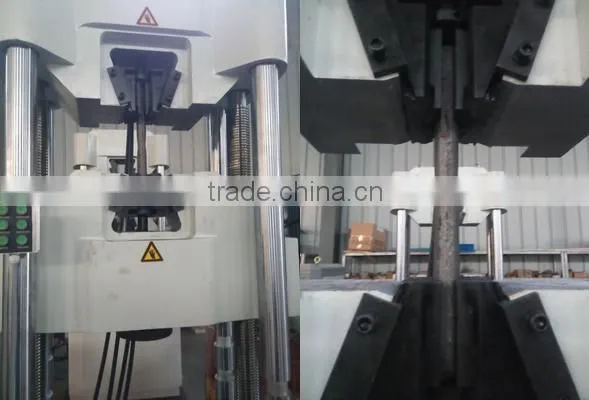

7.Detail Show
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
8.Universal Testing Machine Software Interface:
9.Compare with other brands
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price

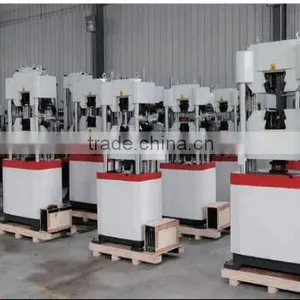

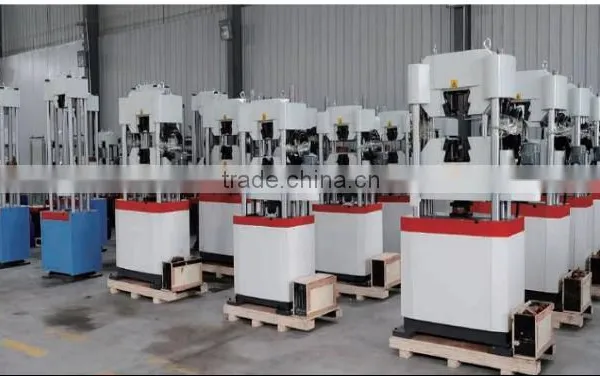

Factory Show
Wholesale suppliers WEW 300KN 30TON universal hydraulic tensile testing machine with price
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
Warranty
The testing machine is guaranteed for a year by Jinan Hensgrand Testing Instruments Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide
perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
Any needs and questions, please contact us;We sincerely look forward to cooperation with you !
