Erichsen Cupping Tester Metal Sheet Deformation Test Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HST

Model Number:

GBW-60S

Contact Supplier Request Quote Chat Now

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HST

Model Number GBW-60S

Power Electronic

Usage Other, Cupping testing machine

Specifications

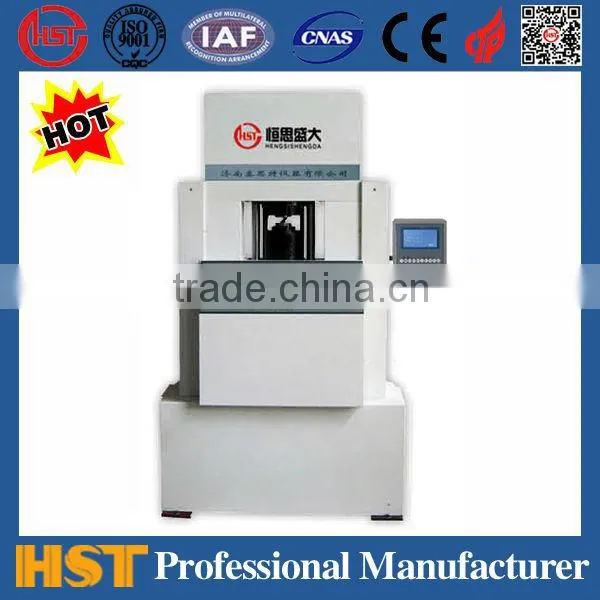

Erichsen Cupping Tester Metal Sheet Deformation Test Machine
CE, factory

Erichsen Cupping Tester Metal Sheet Plastic Deformation Test Machine

Application & Features:

The Erichsen Cupping Tester is used to test extend and stretch capacity of

metal thin plate and band. It is the only instrument to test the metal’s plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.

Standards:

ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test,

GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.

Feature

1.Use a servo motor to load instead of hydraulic piston and cylinder;

2. Change oil pressure cylinder to load cell, more precision and reliable;

3.Auto stop when crack appears, convenient to observe the crack;

4.With peak value memory function, like max. punch load, max. deformation deep etc;

5,Turnover grips, punch and sample is easy to change;

Specification:

Model	GBW-60S
Display mode	LCD display
Specimen thickness	0.1-2mm
Specimen width	100mm
Punch max. stroke	40mm
Clamping piston stroke	40mm
Max. punching load	60Kn
Max. clamping load	25Kn
Standard punch diameter	Φ20±0.05mm
Standard cushion mold hole diameter	Φ33±0.1mm
Standard press mold hole diameter	Φ27±0.05mm
Display resolution	0.01mm
Speed	2-100mm/min
Weight	500Kg
