Specifications
1.Erichsen Cupping Testing Machine2.For sheet metal & strip steel rolled stock
3.ASTM E 643-78 & GB4156-84

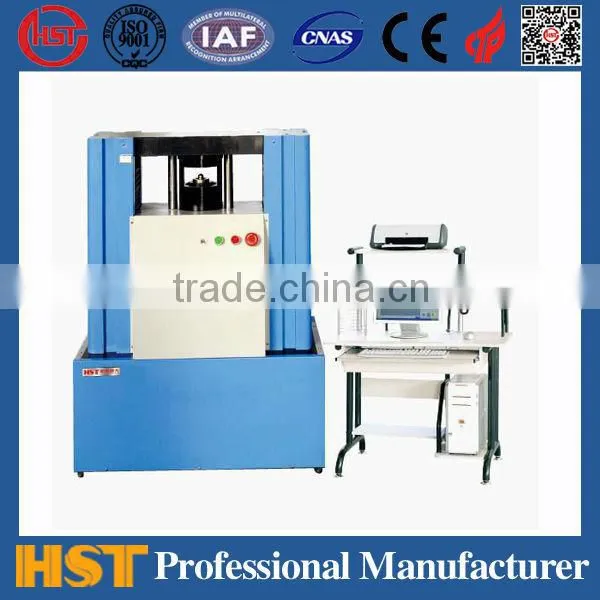

High Quality Computer Control Erichsen Cupping Testing Machine/ Computer Control Erichsen Cupping Testing Machine
1Application:
The Cupping testing Machine ( Erichsen Tester )is precise technology testing machine which is used for sheet metal & strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .
2.Standard:
It conforms to ASTM E 643-78 & GB4156-84 named Testing Machine for Metal Cupping test
3.Feature:
1, New designed Erichsen Cupping Tester, use a servo motor to load instead of hydraulic piston and cylinder;
2, Change oil pressure cylinder to load cell, more precision and reliable;
3, With computer controlled the test, user can easy get test report, and save, recall, print test result;
4, Auto stop when crack appears, convenient to observe the crack;
5, With peak value memory function, like max. punch load, max. deformation deep etc;
6, Turnover grips, punch and sample is easy to change;
7, Customized mold diameter available.
Specification:
Model |
GBW-60 |
Display mode |
PC control and display |
Measuring range |
0.2kN ~ 60kN |
Testing accuracy |
± 1% |
Specimen thickness |
0.05-2mm |
Specimen width |
100mm |
Punch max. stroke |
40mm |
Clamping piston stroke |
40mm |
Max. punching load |
60Kn |
Max. clamping load |
25Kn |
Standard punch diameter |
Φ20±0.05mm |
Standard cushion mold hole diameter |
Φ33±0.1mm |
Standard press mold hole diameter |
Φ27±0.05mm |
Display resolution |
0.01mm |
Speed |
2-100mm/min (any constant rate and speed control) |
Weight |
500Kg |
Erichsen Cupping Testing Machine
CE Certificat
Contact me : Sunny
Skype:sunny.luo70
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
