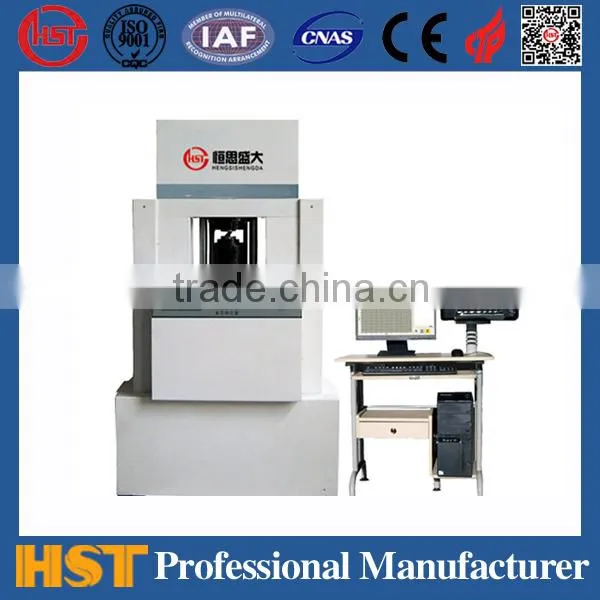

GBW-60Z Computer Control Steel Strip/ Metal Sheet Erichsen Cupping Testing Machine
Application:
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal & strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .
Standard:
GB/T 4156-2007,ASTM E643-78 Metal materials and thin plate Erichsen cupping test requirement
GB5125-1985 Non-ferrous metal cup of test method , do punching cup test, check the anisotropy of non-ferrous metal sheet
Feature:
1, Using hydraulic clamp, hydraulic punching composite cylinder;
2, Auto stop when crack appears, convenient to observe the crack;
3.With peak value memory function, like max. punch load, max. deformation deep etc;
4,Turnover grips, punch and sample is easy to change;
5.Computer control operation, according to the preset program and data, automatic clamping, stamping, measurement, calculation, parking
Specification:
Model |
GBW-60Z |
Display mode |
Computer control and display |
Testing accuracy |
± 1% |
Specimen thickness |
0.1-2mm standard; 0.1-3mm non standard |
Max Specimen width |
100mm |
Max Punch stroke |
60mm |
Clamping piston stroke |
19-21 mm |
Max. punching load |
60Kn |
Max. clamping load |
25Kn |
Testing mold specification (Standard) |
punch diameter: Φ20±0.05mm; cushion mold hole diameter: Φ33±0.1mm; fixing mold hole diameter: Φ27±0.05mm |
Testing mold specification (Non Standard) |
punch diameter: Φ15±0.05mm ,Φ8±0.02mm, Φ3±0.02mm; cushion mold hole diameter: Φ18±0.1mm, Φ10±0.1mm ,Φ3.5±0.1mm; fixing mold hole diameter: Φ21±0.02mm , Φ11±0.02mm , Φ5±0.02mm |
Display resolution |
0.01mm |
Display value |
Clamping force, stamping force, displacement and cup drawing value, speed rate, drawing force - displacement curve |
Control mode |
Computer automatic test process |
Structure |
Composite cylinder, double oil pump supply oil, grating measurement |
Configuration:
1. 60KN Cup drawing testing machine host --1PC
2. Cup drawing testing machine control system--1 SET
3. Electrical apparatus control system-- 1SET
4. Standard cup drawing punch head and molding--1 SET
5. 10 Mpa sensor-- 1PC
6. 20 Mpa sensor-- 1PC
7. LENOVO computer, HP printer--1SET
8. Special testing software under Windows operating environment--1SET
