Home > Products > Compression Testing Machine > high quality computer control concrete pipe compressive hydraulic driver testing machine

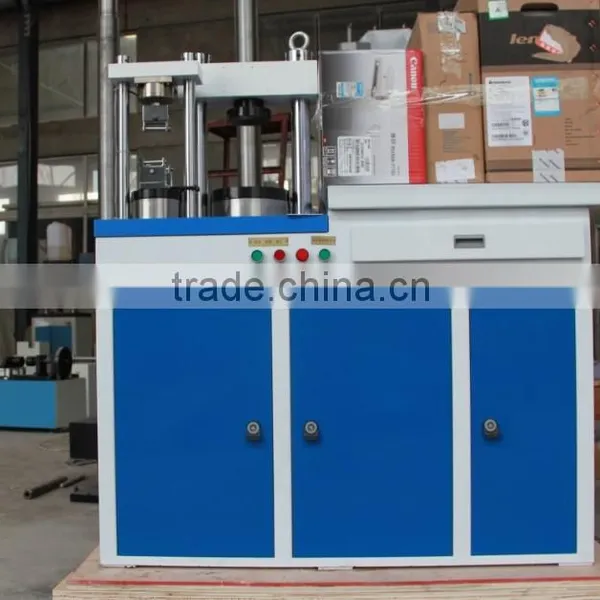

high quality computer control concrete pipe compressive hydraulic driver testing machine
- 300 Set / Sets per Month
- Qingdao / Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | HST | Model Number: | YAW-300D |
Power: | Hydraulic | Usage: | Compression Testing Machine |
Product Description
high quality computer control concrete pipe compressive hydraulic driver testing machine
Bending and compression testing machine application:
This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve’display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
Features and Function:
1. This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
2. Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
3. Window control and dealing software, design more reasonable.
can arbitrarily set pressure value, pressure time, auto calculate test result.
4. Advanced auto control function, can do single or batch test.
5. Auto stop,after sample broken.
6. With over load protection.
Main Specification
Max compression test force | 300kN |
Max flexual test force | 10kN |
Test force range | 2%~100%FS |
Test force accuracy | ≤±1% |
Load speed | 0.1~9.9KN/S |
Displacement indicate error | ±1% |
Displacement resolution | 0.01mm |
Displacement speed adjust | 0.01~40mm/min |
Control and deal mode | Computer constant control and auto dealing |
Effective test width | 300mm |
Space between upper and lower | 280mm (optional) |
Effective compression space | 50mm |
Compression plate size | 140mm |
Machine size | 630*457*1410mm |
Power supply | 220V,50Hz,1500W |
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
Computerized electronic servo compression testing machine:
Bending and compression testing machine:
Bend and compression use fixture:
Compression testing machines in stock:
CE certificate:
Our compression testing machines can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
