hydraulic servo compression testing machine supplier
- 300 Set / Sets per Month
- Qingdao / Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | HST | Model Number: | YAW-1000D |
Power: | Hydraulic | Usage: | Compression Testing Machine |
Product Description
hydraulic servo compression testing machine supplier
Bending and compression testing machine application:
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
1). Computer control up, down, test, stop and loading progress.
2). Electric screw ball adjust test space.
3). Unibody desktop oil source control cabinet.
4). This machine consist of the host machine, oil source and control system.
5). Can realize the load rate, such as load or stress rate loading.
6). Can auto printing.
Main Specification
Model | YAW-1000D | YAW-3000D | ||
Max. Load | 1000kN | 3000kN | ||
Control method | Computer auto control loading process | |||
Test space adjustment mode | Electric ball screw adjust | |||
Oil source control cabinet structure | One-piece oil source control cabinet | |||
Test class | 1 class | |||
Testing range | 4%-100%FS | |||
Load display accuracy | Better than ±1% | |||
Piston stroke | 50mm | 80mm | ||
Distance between upper and lower plate | 320mm | 340mm | ||
Max space between two columns | 270mm | 280mm | ||
Size of upper and lower platen | 250×250mm | 260×260mm | ||
Power supply | 2.1Kw/AC380V | 2.3Kw/AC380V |
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.

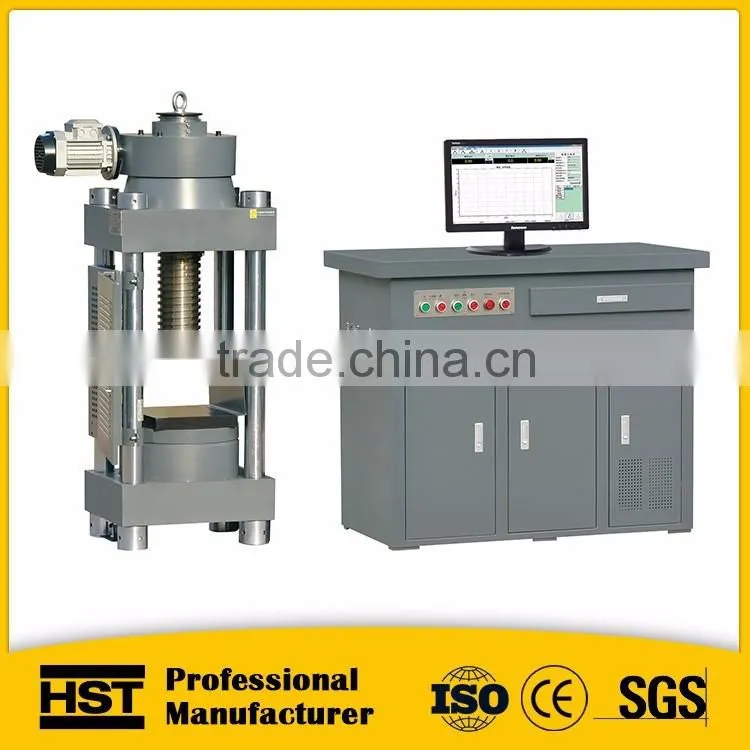

Computerized electronic-hydraulic compression testing machine:
YAW series compression testing machine:
Bend and compression use fixture:

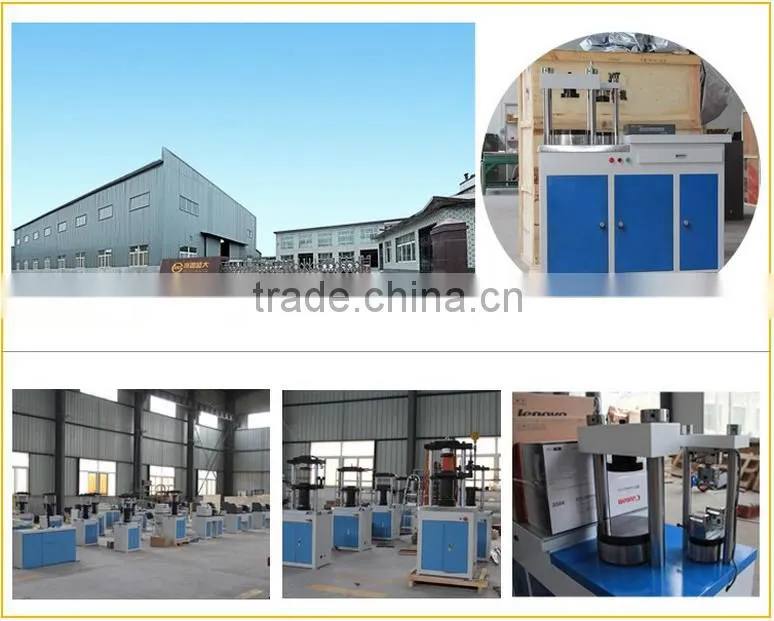

Compression testing machines in stock:
CE certificate:
Our compression testing machines can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
