Help CenterWith HYGF800 Parallel Twin Extruder Production Line 400-800mm PVC Water Supply Pipe
Related Products
-
Pvc Transparent Pipe ExtruderUS$ 10,000 - 20,000MOQ: 1 Set -
Four Head PVC Conduit Pipe/ PVC Pipe Extrusion Line 16-32mmUS$ 48,900 - 51,900MOQ: 1 Set
-
16 - 110 mm PVC Double Station Pipe Extrusion Line With German TechnologyUS$ 46,500 - 80,200MOQ: 1 Set
-
16 - 32mm Four Head Conduit Pipe Production LineUS$ 48,900 - 51,900MOQ: 1 Set
-
16 - 110 mm PVC Double Head Pipe Production LineUS$ 46,500 - 80,200MOQ: 1 Set
Products Feature:
l Screw and barrel are plated with special alloy in order to gain longer life.
l Screw is designed according to the different products, without black line
l The harden and ground gear box is made with Italian technology
l Main bearings and sealing elements are made in Germany, Japan, Taiwan etc.
l Other eclectic and pneumatic components are made in world famous brand
l The vacuum pump is in high quality, the pipe will be formed by vacuum.
l The die head is equipped with bronze calibrating device,
l Spray cooling system will ensure the quality of the pipe
l Up and down claws haul off device is stable, the speed is adjustable.
l PLC controller made in Japan is used for cutting device.

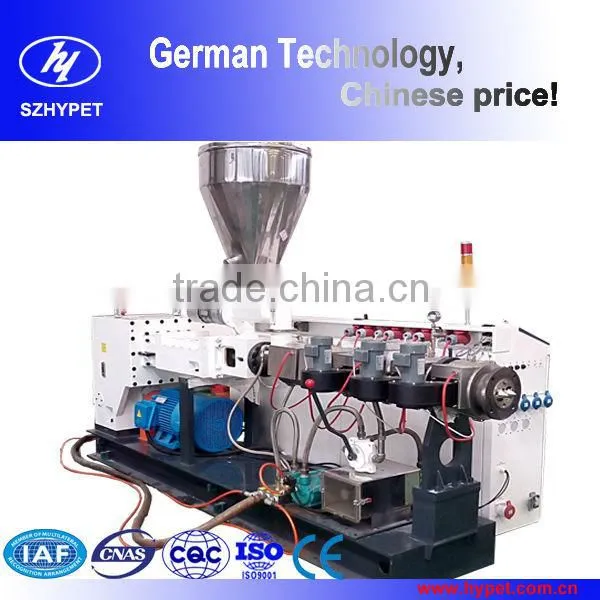

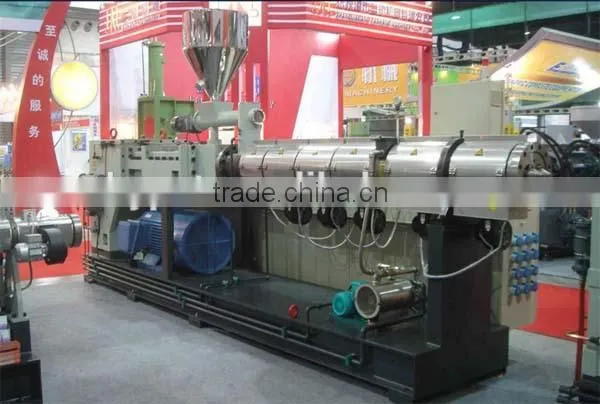

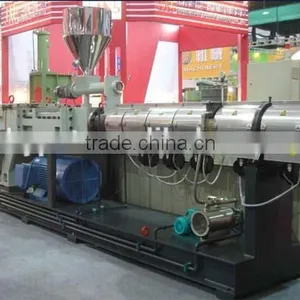

I HYPS 120/28 paraellel twin screw extruder
1) Type HYPS120/26
Height in the center 1250mm
Max Output 550-750 kg/h
2) Screw
Diameter 120mm
L/D ratio: 28:1
Material 38CrMoAlA
3) Barrel
Material 38CrMoAlA
Heating Control Area 4 areas
Heating Way stainless steel heaters
Heating Power 20 kw* 4
Cooling System Barrel Fan Cooling
Cooling Power 0.35kw*4
Extra heating zone: 12 zones
4) Gear Case
Case Material QT450 STEEL
Gear Material 20CrMnTi
Gear Surface hardened and ground in high precision
Axis Material 40Cr alloy
Cooling system for the gear box with the pump circuit outside of the gear box
Electric components and wires are well organized according to the high level.
2, Die head for400-800 mm
The sizes for pipe will be 800 mm
The material of the die head is special alloy, 42CrMo
The surface of the flow runner will be chrome plated.
The calibrating sleeves are made of bronze.
The thickness will be discussed when ordering.
3,vacuum calibrating tank
Tank sizes: 8000×1000×2000
tank material : stainless steel
Die Range: 160-800
vacuum pump: 5.5 kw x4 (4 pcs)
vacuum degree: -0.03~-0.06MPa
water pump: 7.5kw x4(4 pcs)
cooling method: spray cooling
spraying points: 350 points
filters 4 pcs in G2
in pipe sizes: G1.5”
out pipe sizes: G2”
4, Cooling tank
1,cover of the tank: Aluminum Alloy
2, Length: 6000mm
3, Dia. Range: 160-800
4, Water pump: 5.5 kw x2
5, cooling method: spray
6, spraying points: 280 points
7, in pipe sizes: G1.2”
8, out pipe sizes: G1.2”
9, sealing way: sealing plate and rubber
10, tank material : stainless steel
11, Center of machine: 1200±50mm
5, Haul-off machine
Mode 6 caterpillar type haul-off
Central height of the cutting pipe 1200±50(mm)
Pipe range 160-800
Haul-off speed 0.1-1.6 m/min
Adjusting mode pneumatic
Direction obverse rotating
Power of driving motor 0.75x6 kw
contacted caterpillar length 2200mm
Width of caterpillar 60mm
Air pressure 0.4-0.6Mpa
Shape of haul-off work piece circle hard pipe
AC motor with AC inverter: separately controller but at same speed
6, Planetray Cutting machine with chamfer
Cutting method: Planetary cutting with Chamfer
Cutting range: 160~800mm
Center height: 1200±50mm
Rotating period 0.75- 5(s)
Removing journey 1500mm
Cutting thickness max. 40mm
Power of revolution motor 1.1kw
Power of cutting motor 4 KW
Dust-absorbing motor power 0.75kw
Knife-in motor power 0.55kw
Cutting method: Saw blade cutting, automatic/manual
Cutting precision 1:100
Controlling method: PLC control
Our products and services range:
1. extruders in single or twin screw, parallel or conic
2. kinds of pipe production line, like rigid PVC, soft PVC, conduit, cable,PE water supplier pipes, PPR pipes....etc.
3. kinds of profile producton line, such as PVC windows production lines, PVC profile lines, PVC ceiling lines, PVC roof lines, WPC profile lines..etc
4. kinds of sheet, board production lines, such PVC foaming board/sheet production lines, PVC door production lines, WPC door production lines, WPC foaming board lines....etc.
5. kinds of granulating, pelletizing lines
6. all the auxiliary machine of above lines and spare parts, such as screw barrel, mixer, miller, crusher, cooling tower, cooler, shredder, inverter, molds...etc
7. all the techical data and tecknology of above machines
8. Wood and Plastic Composite decorational profiles and door, such as WPC ceiling, wallboard, floor board, deck board, blind, doors ....etc.
1. Owns more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. Own a high professional design team
5. A base combined with designing, making, studying ....etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you ?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET ?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Eruo technology ,designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery .
What are the HYPET services?
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also provide in each order.
