Shanghai CYC-CM180 Automatic powder packing machine Used for drug, food, commodity and cosmetic

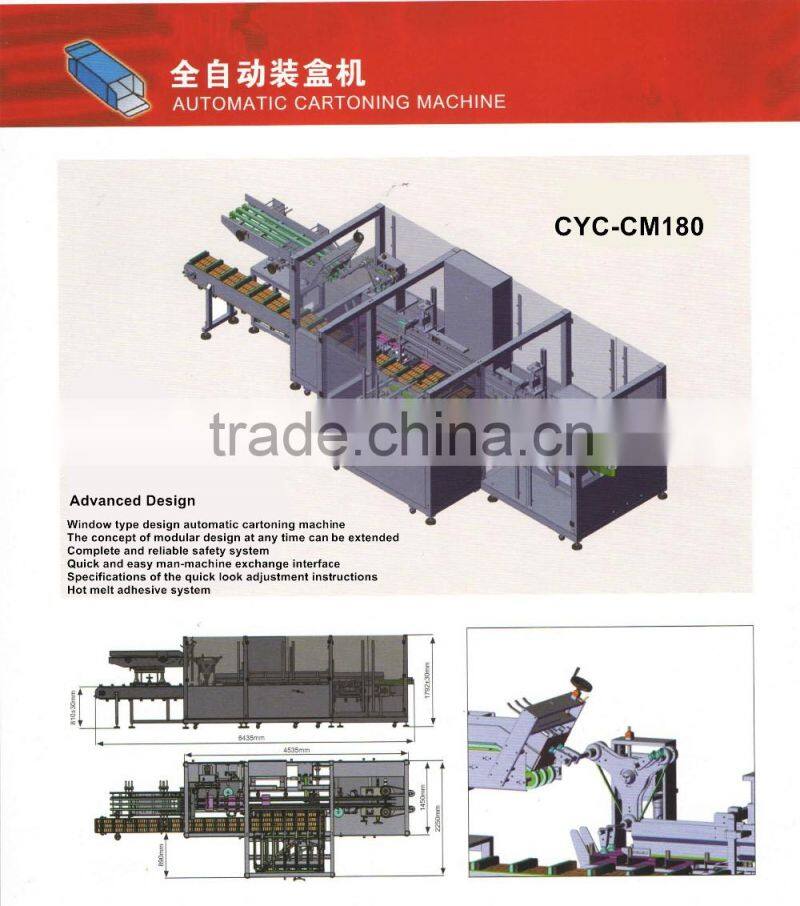

CYC-CM180 Type Automatic Cartoning Machine
Product Features:
This machine is continuous motion standing cartoning machine. It is high technology integrative product, which can fully meet requirement of GMP. CYC-CM180 is composed of products conveying belt, box feeding and releasing system, encoder system and box packing machine. Max speed is up to 180 boxes per minute. According to different production equipment, we designed feeding system combined with this machine, which contributes to high efficiency and economical management for our clients. The main advantage is easy and convenient for specification interchange, so it will be more suitable for variable specification.
Product Application:
It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as :cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag box for powder and grain products . For food field such as : carton for cans , sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as : carton for cream, grease, lotion, colloid, toothpaste, soap, lamp, computer floppy disk.
Main Specification:
Overall Size(mm)(L*W*H) |
6340*2250*1790(Including input track) |
Weight(kg) |
1300kg |
Height of input for products(mm) |
800+50mm |
Packaging material |
Hot melt glue or insert tongue design |
Operating mode |
Motor and mechanical system |
Noise |
75dB |
Packing Rang of Machine:
Height of carton(min./max.) |
50/178mm |
Length of carton(min./max.) |
25/100mm |
Width of carton(min./max.) |
140/270mm |
Energy consumption parameters
Specification ofinput power supply |
380v/50Hz (Three-phase five line) |
Connection power |
15KVA |
Air supply pressure |
6bar |
Control power supply voltage |
DC24V |
Power |
3-5kw |
Consumption of compressed air |
60L/min |
