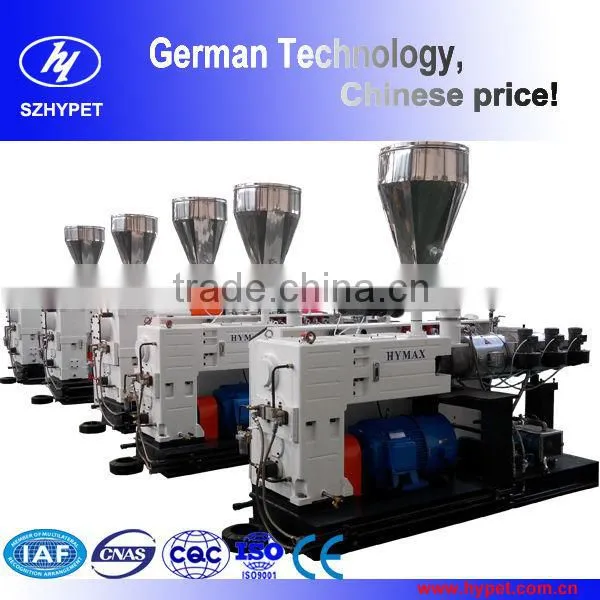

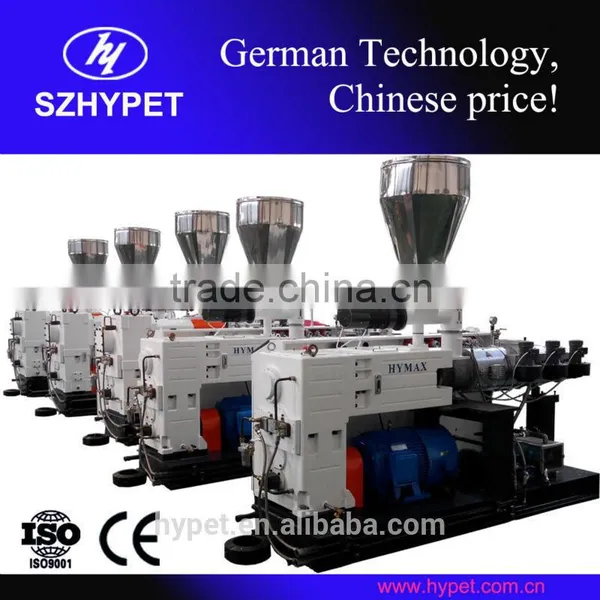

Help CenterGermany Technology ZS65/132 High Output Conical Twin Screw PVC Pipe Extruder Machine
Related Products
-
German Technology ZS65/132 High Output Conical Twin Screw Extruder PriceUS$ 21,000 - 24,000MOQ: 1 Set -
German Technology PS65/28 High Output PVC Parallel Twin Screw Plastic Extruder MachineUS$ 25,000 - 29,000MOQ: 1 Set
-
German Technology ZS65/132 PVC High Output Conical Twin/ Double Screw Plastic Extruder MachineUS$ 21,000 - 24,000MOQ: 1 Set
-
German Technology PS65/28 High Output Parallel Twin Screw PVC Plastic Profile/ Pipe ExtruderUS$ 25,000 - 29,000MOQ: 1 Set
-
German Technology PS65/28 High Output Parallel Twin Screw PVC Pipe Extruder MachineUS$ 25,000 - 29,000MOQ: 1 Set
HYPET Most Advantage Product! Hot Sale!
Name:

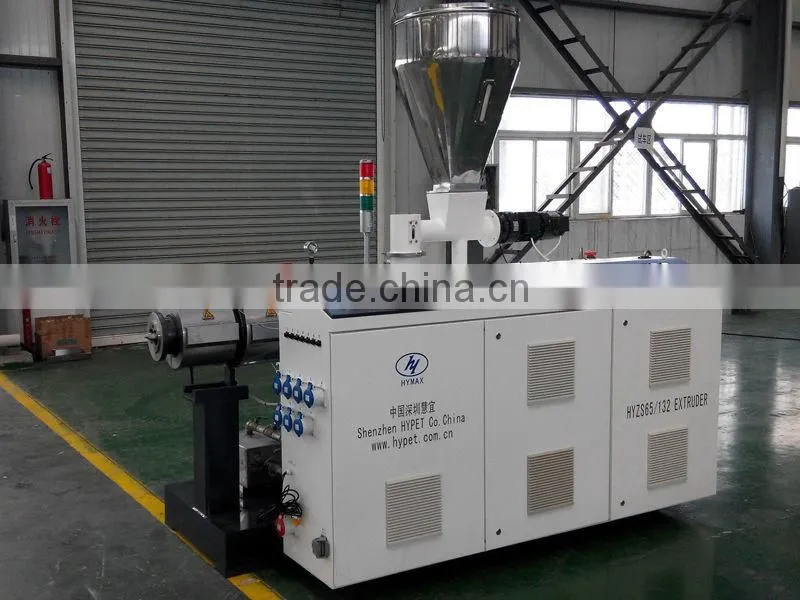

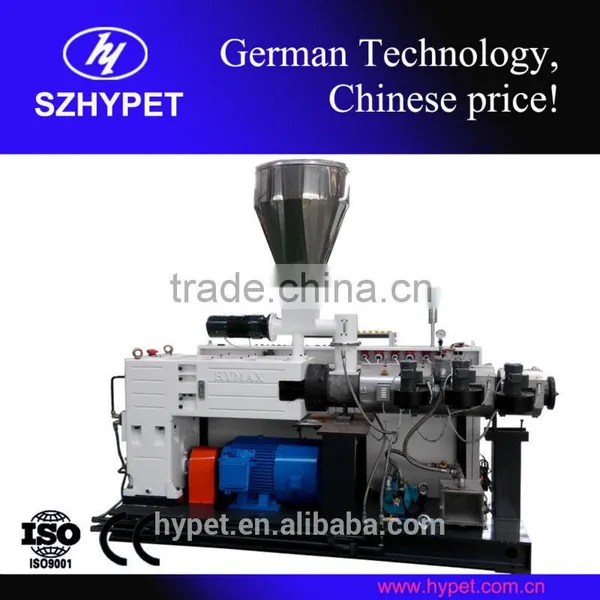

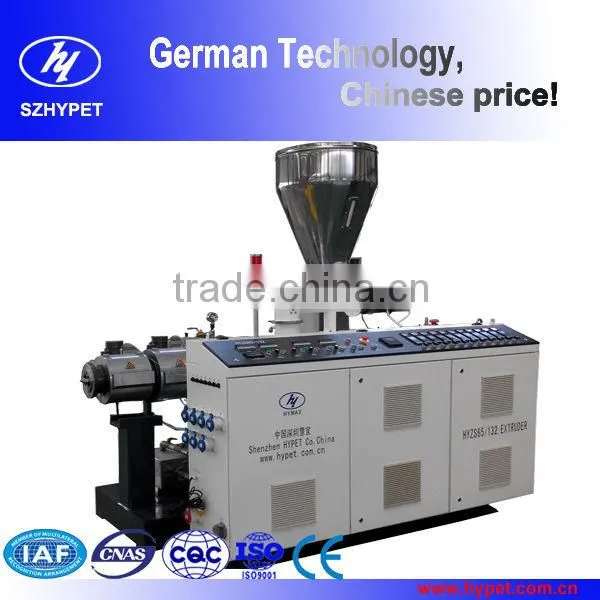

HYMAX ZS65/132 Conical Twin Screw Extruder

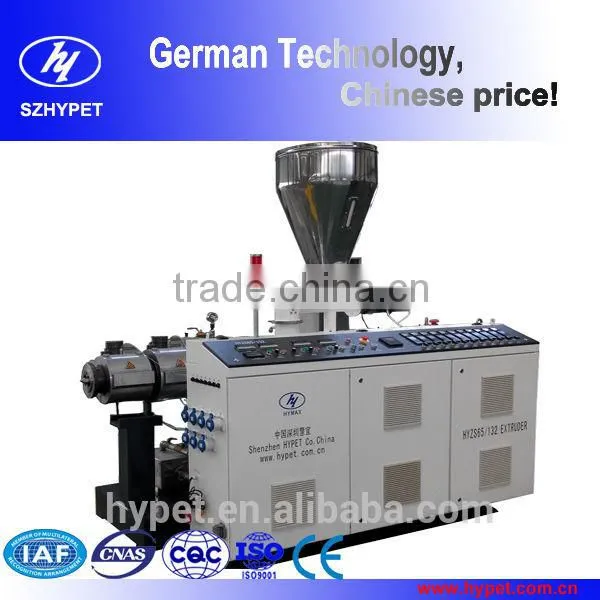

HYZS 65/132 Conic twin screw extruder | |
Height in the center |
1100mm |
Output |
320Kg/h |
Weight |
3800kg |
Screw | |
Diameter |
65mm |
Material |
38CrMoAlA |
Finish |
Nitrogen-filled (0.50~0.70mm depth) and polish |
Rotate Speed |
0~39r/min |
Core of the Screw |
Temperature auto control |
Barrel | |
Material |
38CrMoAlA |
Inside Finish |
Nitrogen-filled (0.50~0.70mm depth) and polish |
Heating Control Area |
4 area |
Heater Material |
Stainless steel ( cast heater are option) |
Heating Power |
24 Kw |
Cooling System |
Fan Cooling with low-noise |
Cooling Power |
0.3kw×3 |
Gear Case | |
Case Material |
QT450 |
Gear Material |
20CrMnTi |
Gear Surface |
Hardened and ground in high precision |
Axis Material |
40Cr |
Feeding motor | |
Motor |
1.5 Kw |
Speed range |
1 – 50 rpm |
Vacuum Deflating Humidity | |
High-point Vacuum Degree |
-0.004 Mpa |
Motor |
1.5 Kw |
Driving Motor | |
AC Motor |
37 Kw |
AC inverter controller |
ABB Swiss |
Electrical Control Cabinet | |
Control panel |
Digital Display, Adjusting Knobs |
Temperature Control |
RKC |
Other electric components |
SIMMENS, Schneider, Omron etc… |
Features & Specification:
A. HYMAX Screw designing concept
High output, low power cost
Different products with different screw designing
B. HYMAX Screw and barrel material
Bimetal screw
Alloy component: NI+Cr+Wr

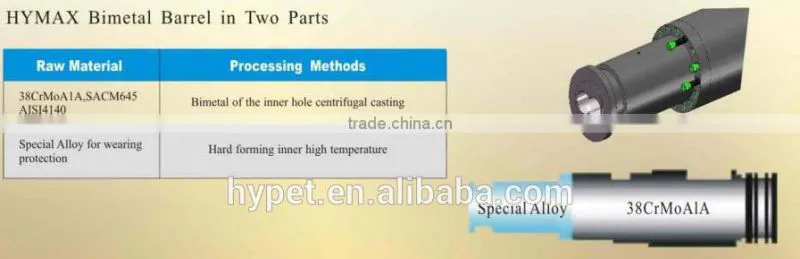

HYMAX Bimetal barrel in two parts

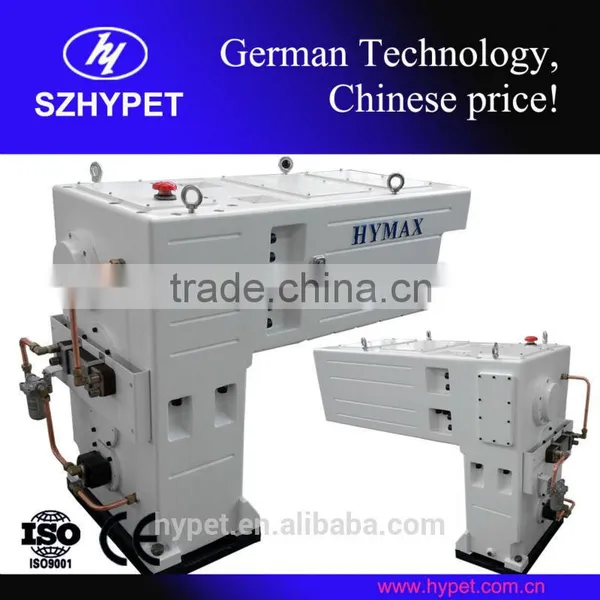

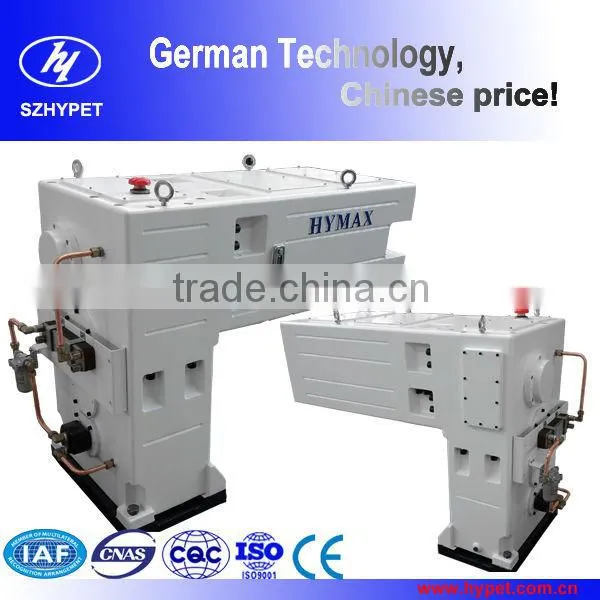

HYMAX Gear box for Conic Extruder
New technology for the conic extruder gear box
Reducer and distributor in one part, troubless reached.
Harden, grounded gear surface, long life and big torque.
Excellent cooling and lubrication.
Appearance
1. Owns more than 30 years experience in extrusion field.
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elbert for long time.
3. Designed and produced conic twin screw extruder, parallel twin screw extruder, and transfer the technology to the biggest gears factory in India.
4. Own a high professional design team.
5. A base combined with designing, making, studying...etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in Wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Euro technology, designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery.
Our services:
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also providing in each order.
