Home > Products > Bending Testing Machine > Electric Cable Bending Testing Machine/Bending Tester
Electric Cable Bending Testing Machine/Bending Tester
- Qingdao CHINA
- T/T Credit Card
You May Like
-
CR Metal Wire Winding Testing Machine/wire Winding Tester
-
Electric Metal Wire Bending Machine/Bending Testing Equipment
-
Electronic Metal Wire Bend Test Equipment, Bending Testing Machine
-
CR Wire Rod Winding Testing Machine
-
CR-10 Metal Wire Winding Testing Machine/Winding Tester
-
Electric Metal Wire Repeated Bending Machine/Bending Testing Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | hensgrand | |
| Model Number | HS-R | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
Specifications
1.usage:metal wire repeated bending test2.Bending angle visually show
3. deformation test

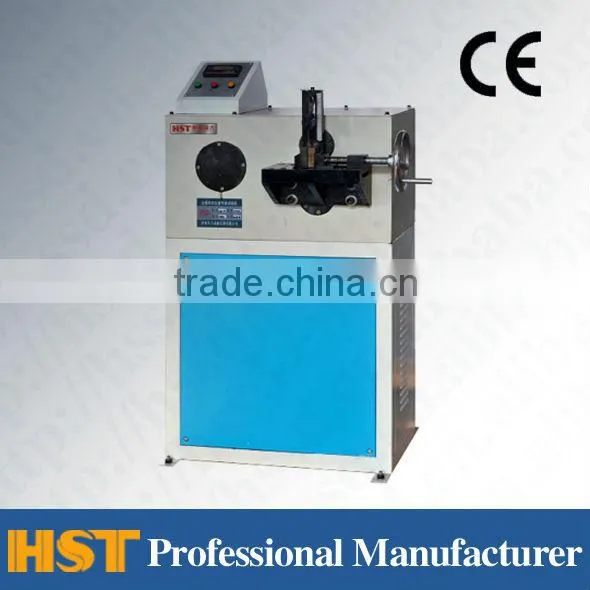

Electric Metal Wire Repeated Bending Testing Machine
Usage:
This testing machine is mainly used for repeated bend test of metal wire and testing performance and defect of bearing plastic deformation at the process of bending metal wire repeatly. It can also process sheet metal bend test after using sheet clamping device. It is widely used for steel and building industries as well as manufacturers and users of steel wires, electrical wires and cables.
Main specifications:
Item name | Unit | Parameters |
Sample diameter | mm | Φ1-φ10 |
Sample length | mm | 150-200 |
Bending angle | Degree | ±90° |
Bending speed | time /minute | < 60 |
Numeration range | time | 0-9999 |
Motor power | Kw | 1.1 |
External dimensions | mm | 1000*600*330 |
Tester weight | Kg | about 210 |
