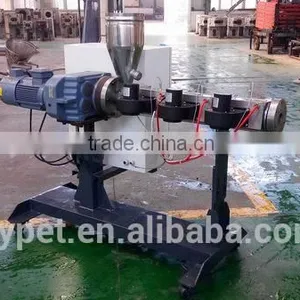

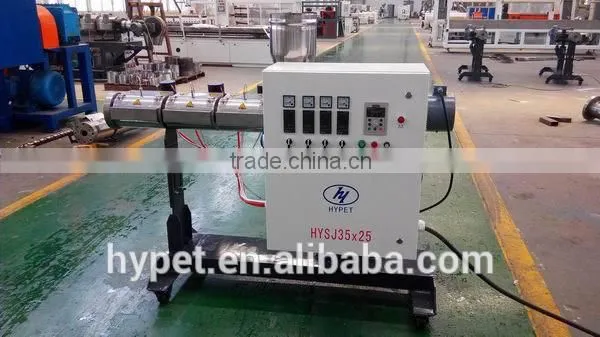

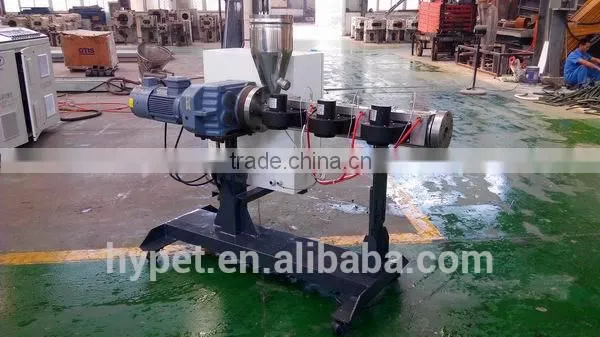

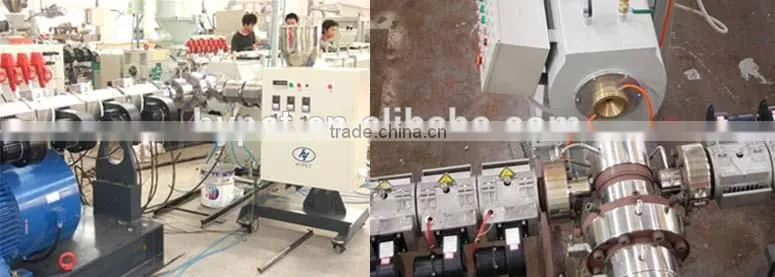

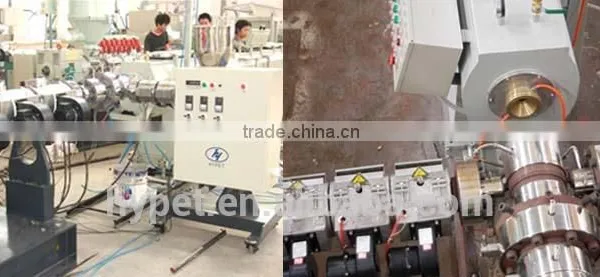

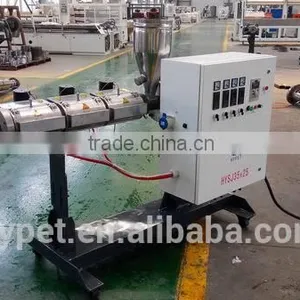

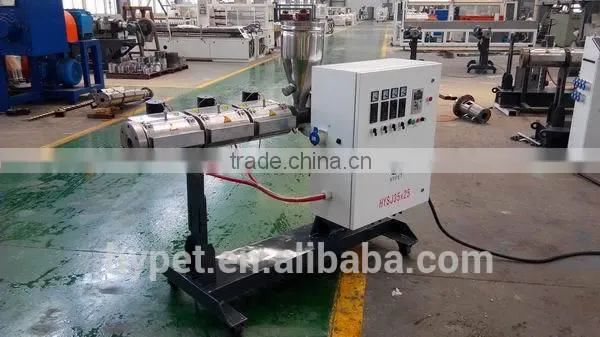

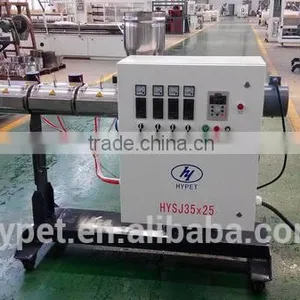

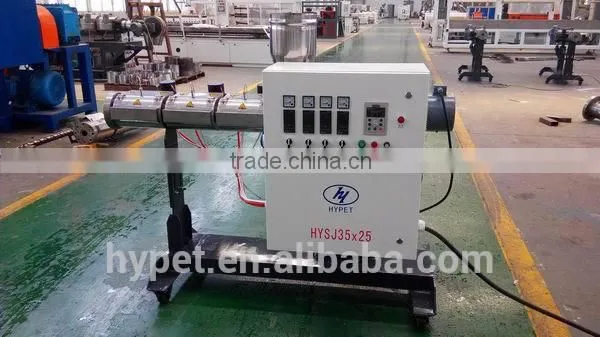

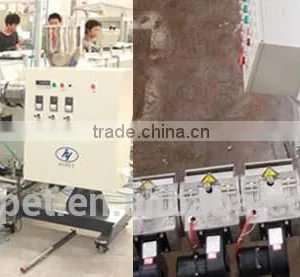

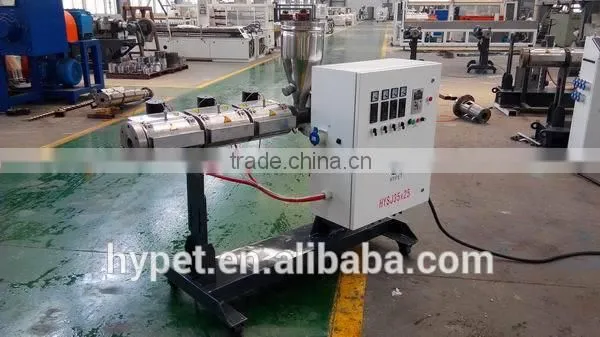

SJ35x25 PE/ PPR Jockey extruder/ Co-extruder
Name:
SJ35/25 Color Line Single Screw Extruder
Size (L*W*H): 1700*900*1500mm
Function:
Color Line for PE, PP, PPR Plastic Pipe
Features:
1. Screw Material: 38CrMoAlA, hard and long life
2. Special cooling system in feeding zone
3. Frequency converter controls main motor
4. Main motor adopts Variable-Frequency and Variable-Speed motor
Specification for SJ35/25:
Height in the center: 1000 - 1150mm
Output: 0.4 - 7Kg/h
Screw
Diameter: 35mm
Screw L/D: 25
Material: 38CrMoAlA
Rotate Speed: 12rpm
Barrel
Heating Control Area: 3 areas
Neck heating: 1 area
Heating Way: Case aluminium heaters with electric fans for cooling
Cooling System: Barrel Fan Cooling, Low-noisy
Reducer motor:
Variable-Frequency and Variable-Speed motor
Power: 2.2Kw
Rotate speed: 1450rpm (Max)
Reduction ratio: 130:1
1. Owns more than 30 years experience in extrusion field.
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elbert for long time.
3. Designed and produced conic twin screw extruder, parallel twin screw extruder, and transfer the technology to the biggest gears factory in India.
4. Own a high professional design team.
5. A base combined with designing, making, studying...etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.
How is HYPET doing in the market?
l More than 30 years experience in the extrusion filed
l Extrusion machinery factory located in Wuhan , central of china
l We focus on tailor made plan with exclusivity to each customer
l We have vast resources which can be integrated as whole package service
l We have accumulated vast sale network all over the world
What does HYPET offer to you?
l Tailor designing for your factory lay out
l Tailor designing for water, electric ,and gas chart
l Tailor made processing technology
l Tailor made production line
l Package pre & after services
l On site installation and training
l Free marketing consultation
Why you should corporate with HYPET?
l More than 30 years experience in extrusion, with years of international technical exchange experience;
l A team of highly professional technical expert ensures you get the state of art technology;
l Euro technology, designing, and processing application for twin screw extruder;
l Optimized design for different material, based on vast successful practical experience;
l HYPET set up separate laboratory with top equipment
l Extrusion performance and capacity proven by trial commissioning for each order
l Capable of providing on site technical training
l Unique design ,same line, suitable for various products
l Also provide various down stream and auxiliary machinery.
Our services:
Each order tested before shipping and before payment;
Each order will meet the customer’s satisfaction before payment;
Deposit of Some machinery, if result not satisfied, can be refund;
A team of experience technical engineer can be sent for installation and training;
A standard of spare part will be also providing in each order.
