building bonded steel bar glue

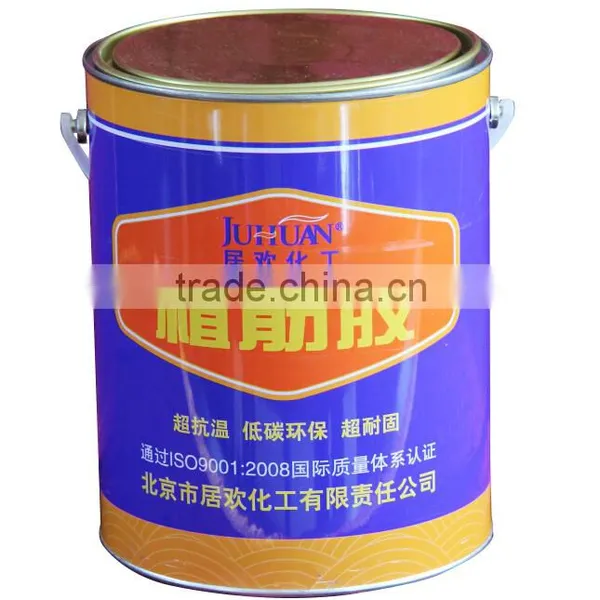

JUHUAN building bonded steel bar glue is capable of cured quickly, high-strength bounding, steady anchorage force, ageing resistant.
Usage of building bonded steel bar glue
1. drill hole : drill out the hole whose diameter and depth is designed by requirement
2.ash removal: blow the ash in the hole by compressed air
3.mix the material: A:B=100:3, and mix sufficient
4.filling : filling the hole with mixed glue and squeeze the air out
5.anchoring: put the anchor rod into the hole
specification of building bonded steel bar glue
| diameter of deformed steel bar (mm) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 |
| diameter of hole (mm) | 14 | 16 | 18 | 22 | 25 | 28 | 30 | 32 | 37 | 40 |
| depth of deformed steel bar (mm) | 120 | 140 | 180 | 220 | 260 | 300 | 350 | 500 | 550 | 600 |
| average tensile resistance (KN) | 26 | 37 | 51 | 67 | 85 | 105 | 127 | 164 | 206 | 220 |
| average shearing resistance (KN) | 18 | 26 | 32 | 47 | 56 | 74 | 88 | 105 | 140 | 168 |
Certificate

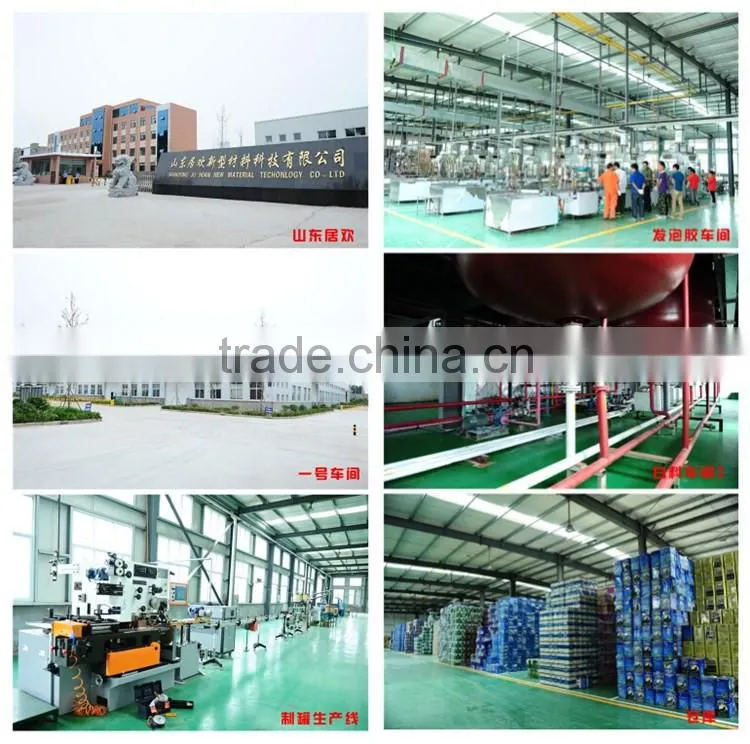

Factory Strength
Quality control
Q-Do you ship worldwide?
A-Yes
Q-What are your delivery time?
A- 7-14 days after received deposit 1×20GP Container
Q-Are you a factory?
A-Yes
Q-What's your payment?
A-Paypal,Visa,L/C,T/T,Escrow etc
Q-Could you supply free samples?
A-Yes
Q-What's transportation do you have?
A-Ocean,air and courier
