Specifications
Y2 series general use electric motors1.low noise,high efficiency2.high torque
3.general use
4.fast delivery with nice price
WELCOME TO FUJIAN UDE ELECTRICAL MOTOR

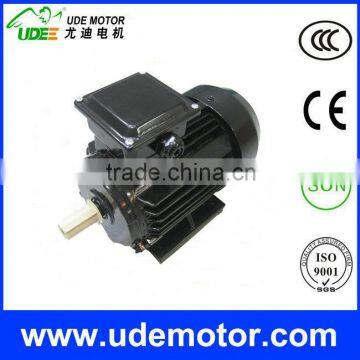

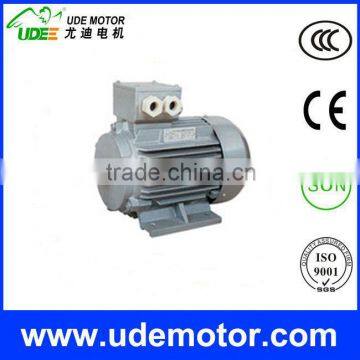

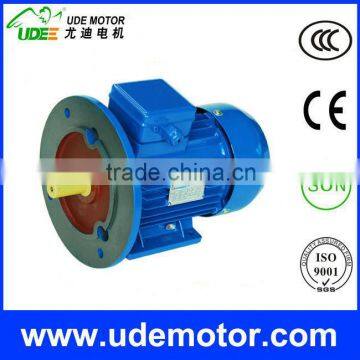

Y2 AC Three Phase Electric Motor
1. 100% copper winding
2. Long service life
3. High energy efficiency
4, High starting torque
Features:
1. Y2 series motors has been newly designed and proved by ourselves specially for European
2. The motors are designed conformity with IEC34-1 and JB/T8680.1-1998 standards
3. It possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc.
4. Installation same as Y series
5. The efficiency of the this series can be customized up to IE2 ,IE3.
6. Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system
Y2 DATA SHEET
Specification:
1, Frame Size: 80-315 MM;
2, Rated Output: 0.75—200 KW or 1—272 HP;
3, Rated Voltage: 380 V or customized;
4, Rated Frenquency: 50 / 60 Hz;
5, Poles: 2 / 4 / 6 / 8
6, Speed: 690 —2980 r/min
5, Model of CONEECTION:
Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
7, Mounting: B3; B35; B34; B14; B5;
8, Current: 0.5—465 A (AC);
9, Duty: continunous (S1); short-time duty (S2); intermittent periodic duty-type(S3);
10, Insulation Class: B / F;
11, Protection Class: IP44 / IP54/IP55;
12, Cooling Method: ICO 141 Standard;
13, Ambient Temperature: -15°C—40°C
14, Altitude: No more than 1,000 meters above sea level;
15, Packing: Carton or Polywood or Wooden Case.
Operating Conditions:
1. Ambient temperature: -15°C<0 < 40 °C
2. Altitude: lower than 1000 meters aove sea level
3. Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
4. Duty/Rating: Continuous (S1)
5. Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
6. Cooling Method: ICO411
Use:
Y2 Series motors can be widely used as driving equipments of various machineries, such as machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.
Technical Data:
Our Factory:
Production Line and Test:
