UPS Battery Management System 5S-16S (Constant current) BN16S50AD-S38-ESS
It can achieve 5s-16s ATJ-BMS management system, including charge/discharge system, voltage acquisition, balance management and temperature acquisition, etc functions. It can assure lithium battery stable status and maximize battery life. Can with RS485 function, and also can connect and work with PC to monitor data information.
Electric Characteristics
- Working voltage: +7~+80V
- Working temperature: -40℃~85℃
- Power consumption: 11mA/5mA/1uA (with RS485, w/o RS485, over-charge shutdown)
- Voltage, current, temperature, short circuit current protection value: free setting by software
- Equilibrium: passive intelligent equilibrium (50-100mA)
Function:
- RS232-PC communication available, RS485 (several PCM in parallel) available
- High temperature over-charge/ over-discharge protection, low temperature over-charge/ over-discharge protection.
- LED alarm, coulometer display
- Custom battery cells and modify by software
- Data monitor (PC)
- LCD display data (option)
Electric parameter
Parameter |
Min. |
Typ.(Li-ion/Li-Fe) |
Max. |
Unit |
Battery cells |
|
16 |
|
cell |
Input Charging Voltage |
|
68 |
72 |
V |
Input Charging Current |
|
10 |
20 |
A |
Continuous Output Discharging Current |
|
30 |
50 |
A |
Operating Temperature |
-10 |
25 |
65 |
℃ |
Over-Charge Voltage Protection (OVP) |
|
3.7 |
|
V |
Over-charge voltage delay time |
|
5000 |
|
mS |
Over-Charge Voltage Protection Release (OVPR) |
|
3.4 |
|
V |
Over-Discharge Voltage Protection (UVP) |
|
2.5 |
|
V |
Over-discharge current delay time |
|
5000 |
|
V |
Over-Discharge Voltage Protection Release (UVPR) |
|
2.7 |
|
V |
Over-charge current protection |
|
55 |
|
A |
Over-charge current delay time |
|
5000 |
|
mS |
Over-charge current protection 1 |
|
55 |
|
A |
Over-charge current delay time 1 |
|
5000 |
|
mS |
Over-charge current protection 2 |
|
150 |
|
A |
Over-charge current delay time 2 |
|
100 |
|
mS |
Charge high temperature protection |
|
60 |
|
℃ |
Charge high temperature protection release |
|
50 |
|
℃ |

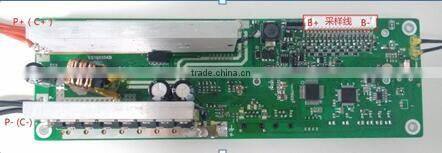

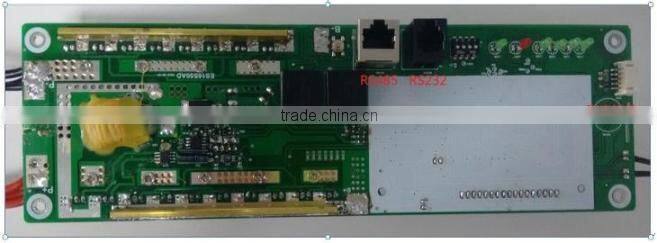

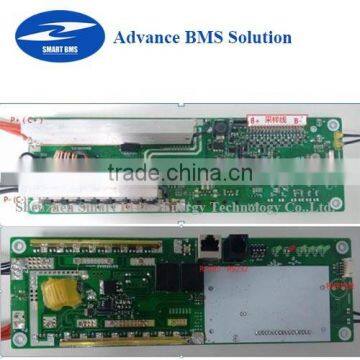

Products image:

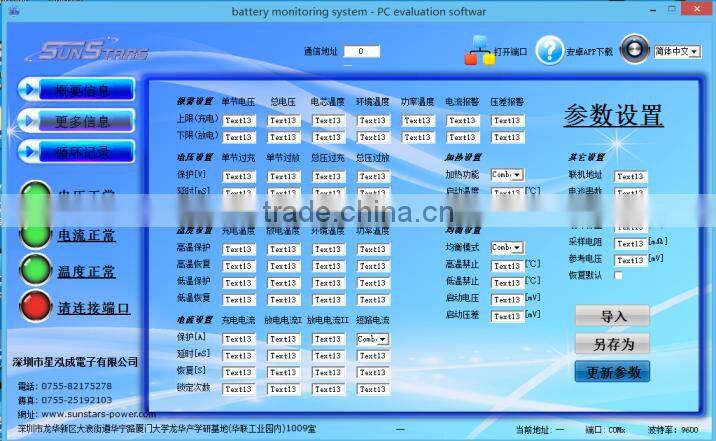

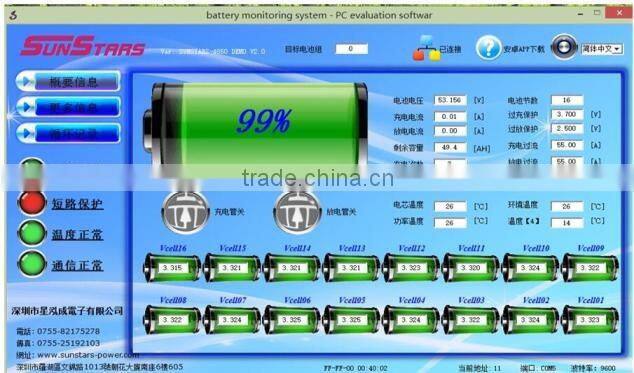

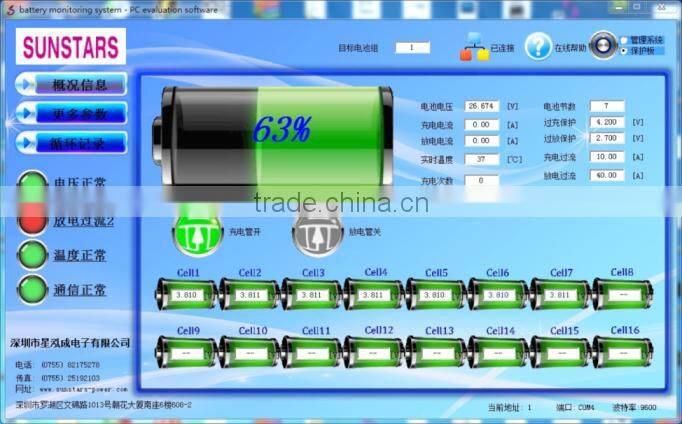

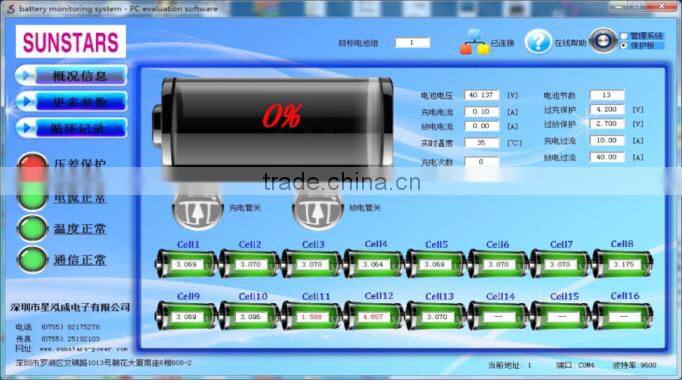

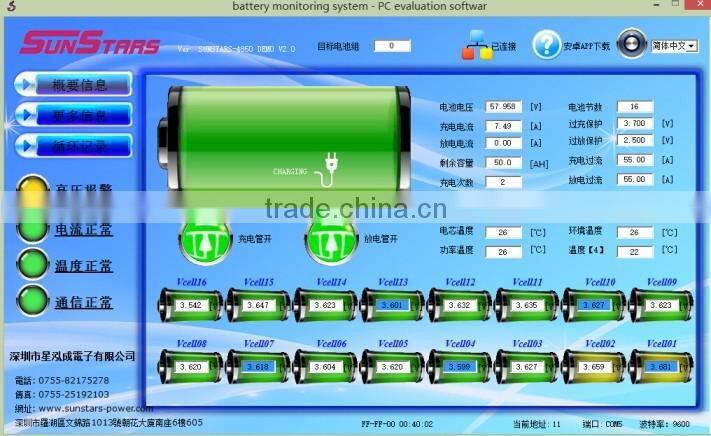

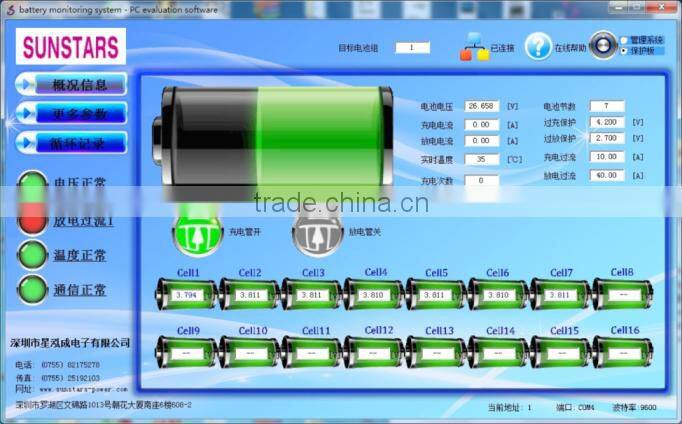

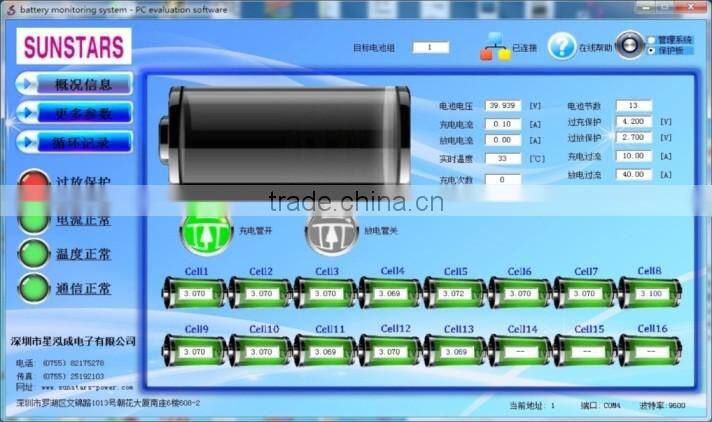

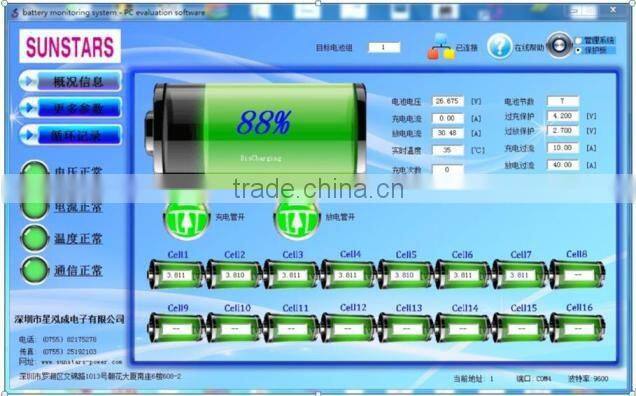

Data monitoring:
Charge current limited
Normal operating
Short circuit current protection
Over-current protection1
Over-current protection2
Differential voltage protection
Over discharge protection
High voltage alarm
Air cushion film packing + Foam filling + Double carton
Marking mode : Marking on the outer packing box
Shipping: TNT,FedEx,UPS,by plane,by sea
Fast reply your inquiry in 24 office working hours; OEM/ODM customized; design and produce the BMS and PCM as customer request
Our goal: to do first-class intelligent BSMS (lithium battery intelligent management system) solution provider
Shenzhen Smart Li-ion energy technology co., LTD started in 2011 committed to the development and promotion of LAPIS power protection solutions,successfully developed including 5 ~ 100 series of lithium battery intelligent control & management solutions, widely used in electric bicycles, electric motorcycles, cars, electric vehicles at low speed, the base station power supply, 4 g towers backup power supply system.
