Product name: Singapore UL Listed LED Corn Lamps,10W with SAMSUNG 5630 LEDs and Rubycon Capacitors, 360degree Integrated led corn lamp
Model: ILT-MS02-10W
Product picture:

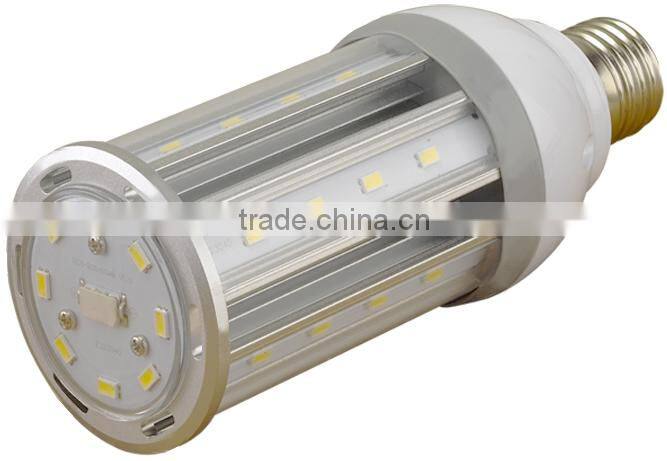

---Picture of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
---Characteristic of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
Features:
1) Can be used in closed fixtures
2) Using Samsung SMD5630 LED Chips
3) Color rendering index is over 85Ra
4) Using Rubycon capacitors from Japan
5) Built-in driver
6) UL ETL Approved
7) IP64
Product detailes:

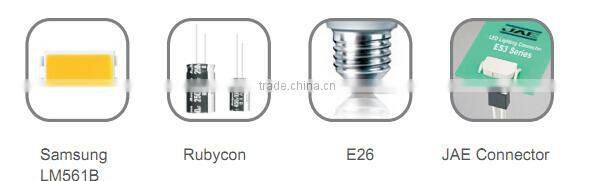

---detailed view of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
Specification:
Rate Power: ≤10W
Input Voltage: AC100-277V 50-60Hz
CCT: 2700-7000K
Power Factor: ≥0.9
CRI: >80
Lumen: 1000±50lm
Brand: Samsung
LED Quantity: 32LEDs 0.3W
LED LM80: Yes
Warranty:5 years

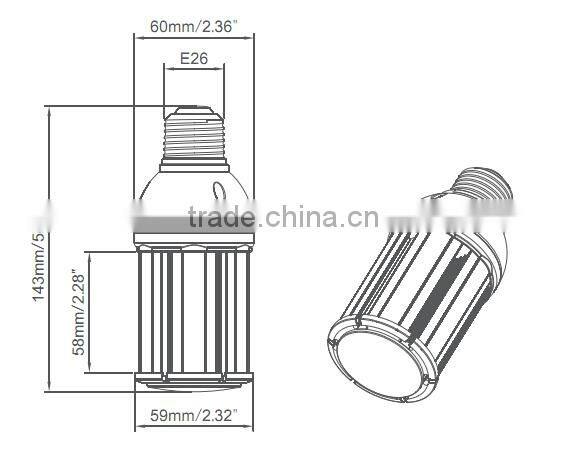

---Physical sizes of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
Absolute Maximum Rating:
parameter |
rating |
Aluminum Heat Sink Temperature |
52℃ |
Operating Temperature |
-20~+65℃ |
Storage Temperature |
-40~+80℃ |
Equilibrium Temperature |
25℃ |
Cautions:
1.Don't install or use it in a humid environment or place which has water drops.
2.Don't take apart the product or replace mechanical and electronic components.
3.Don’t stare at the strong light for a long time as it may cause injury to eyes.

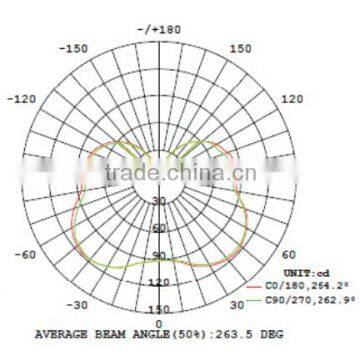

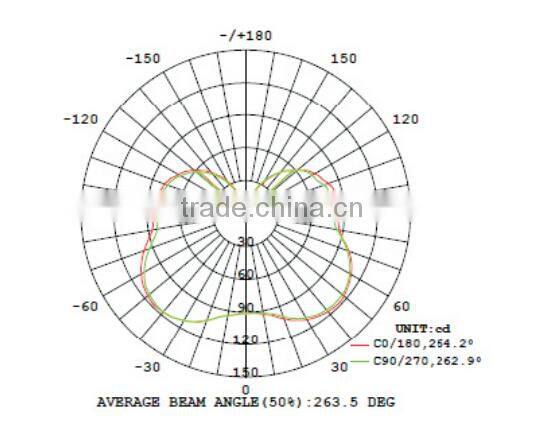

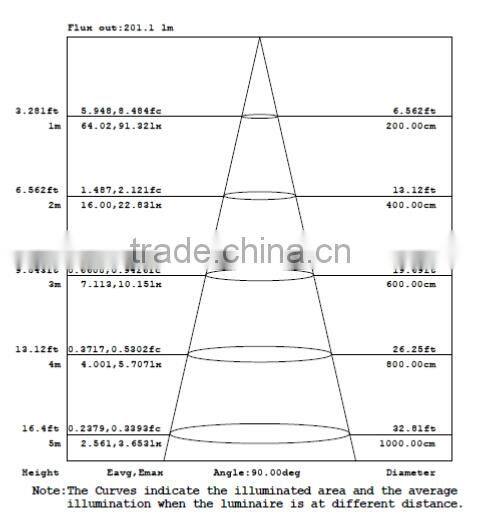

---Light distributor curve of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

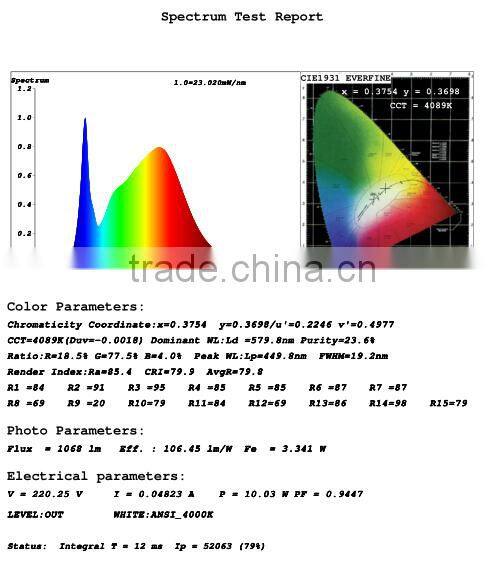

---Actual test result of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
---Lux measurement of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

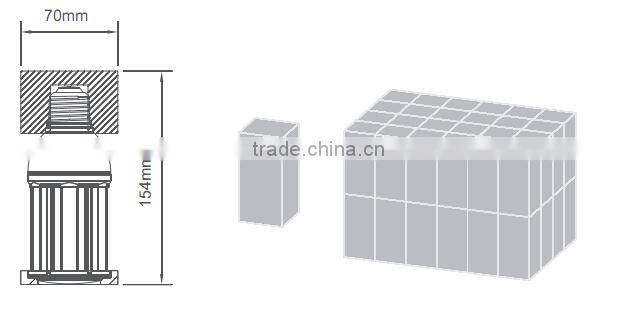

---Packing of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
Pack Quantity |
48pcs |
Net Weight |
0.55lbs/248g |
Gross Weight Per CTN |
32.19lbs/14.6kg |
Box Size |
2.87*2.87*6.46" 73*73*164mm |
CTN Size |
18.5*12.4*13.98" 470*315*355mm |

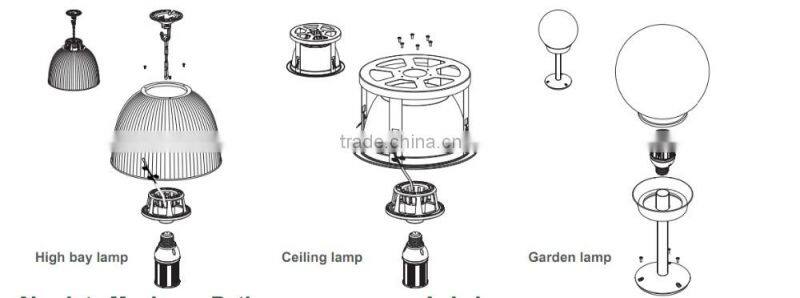

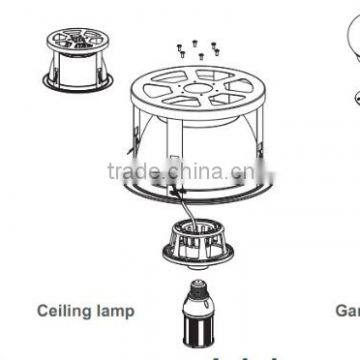

---Application of 10W UL listed Integrated led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
