Home > Lights & Lighting > LED Interior Lighting > LED Bulb Light > Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp

Name: Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp
Brand: Green Power
SKU: 126887293
Availability: InStock

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-1

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-2

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-3

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-4

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-5

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp thumbnail-6

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-1

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-2

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-3

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-4

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-5

Singapore UL Listed LED Corn Lamps, 80W With SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 Led Corn Lamp photo-6

US$ 1 - 999 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

Samsung SMD5630

Type:

Corn Lights

Input Voltage(V):

100-277V

Contact Supplier Request Quote Chat Now

Infinity Lighting Technology Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN SINGAPORE

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Samsung SMD5630

Type Corn Lights

Input Voltage(V) 100-277V

Lamp Power(W) 84

Lamp Luminous Flux(lm) 8400+/-420Lm

Lamp Luminous Efficiency(lm/w) 110

Color Temperature(CCT) Other, 2700-7000K

Working Temperature(℃) -20, 65

Working Lifetime(Hour) 100000

Lamp Body Material Aluminum

Certification CE, EMC, ETL, LVD, UL

Base Type E39

Place of Origin Singapore

Brand Name Green Power

Model Number ILT-MS10-80W

Product Description

Product name: Singapore UL Listed LED Corn Lamps, 80W with SAMSUNG 5630 LEDs and Rubycon Capacitors, Retrofit IP64 led corn lamp

Model: ILT-MS10-80W

Product picture:

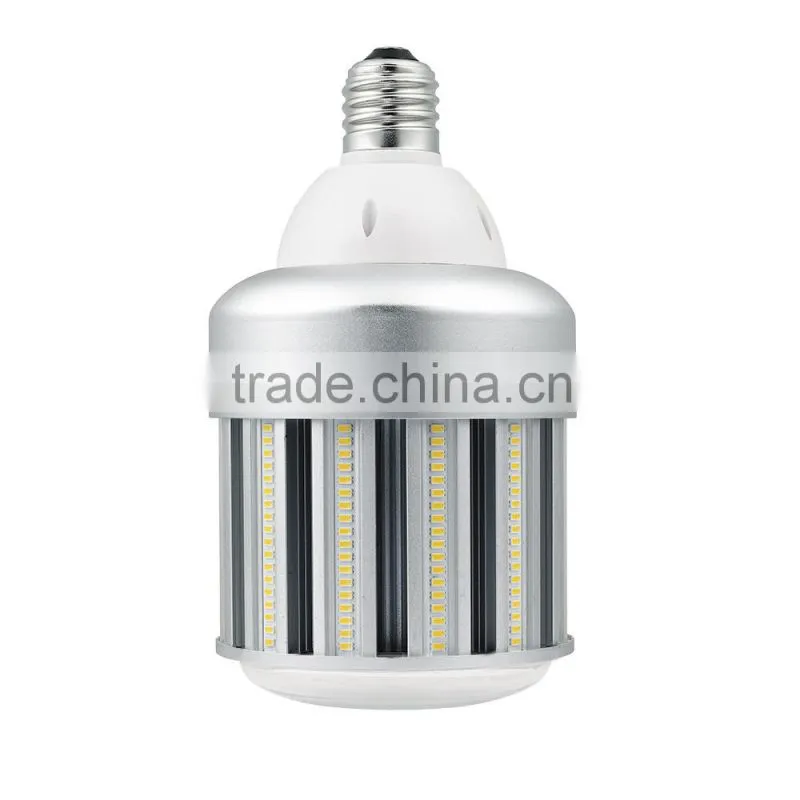

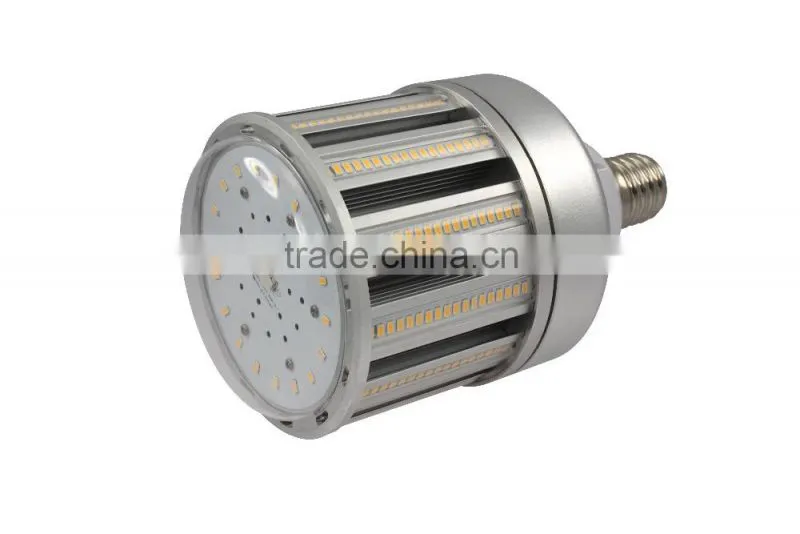

---Picture of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

---Characteristic of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

Features:

1) Can be used in closed fixtures

2) Using Samsung SMD5630 LED Chips

3) Color rendering index is over 85Ra

4) Using Rubycon capacitors from Japan

5) Built-in driver

6) UL ETL Approved

7) IP64

Product detailes:

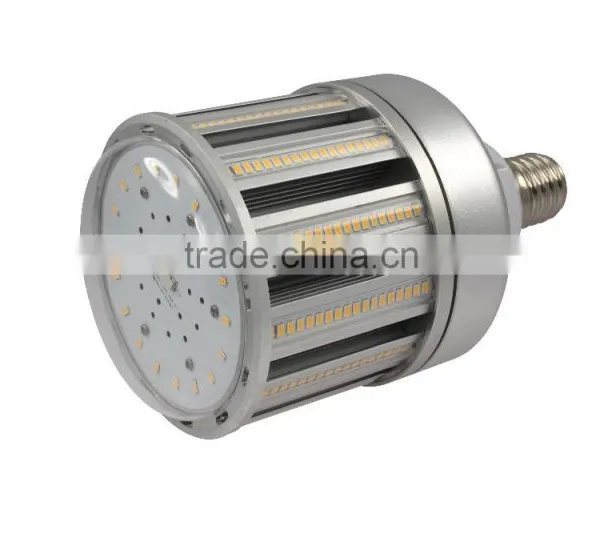

---detailed view of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

Specification:

Rate Power: ≤84W

Input Voltage: AC100-277V 50-60Hz

CCT: 2700-7000K

Power Factor: ≥0.9

CRI: >80

Lumen: 8400±420lm

Brand: Samsung

LED Quantity: 234LEDs 0.3W

LED LM80: Yes

Warranty:5 years

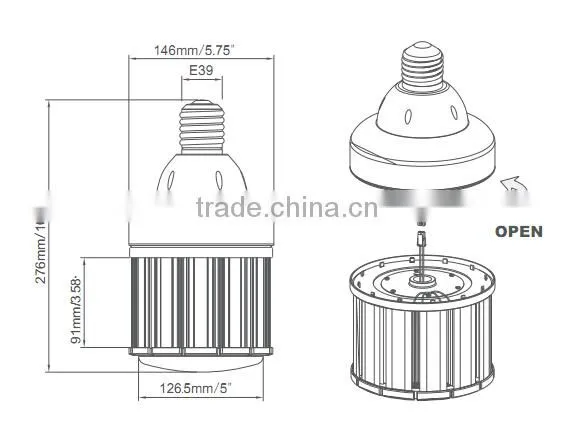

---Physical sizes of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

Absolute Maximum Rating:

parameter	rating
Aluminum Heat Sink Temperature	65℃
Operating Temperature	-20~+65℃
Storage Temperature	-40~+80℃
Equilibrium Temperature	25℃

Cautions:

1 .Make sure remove the traditional ballast before replace the LED corn light.

2.Don't take apart the product or replace mechanical and electronic components.

3.Don’t stare at the strong light for a long time as it may cause injury to eyes.

Test

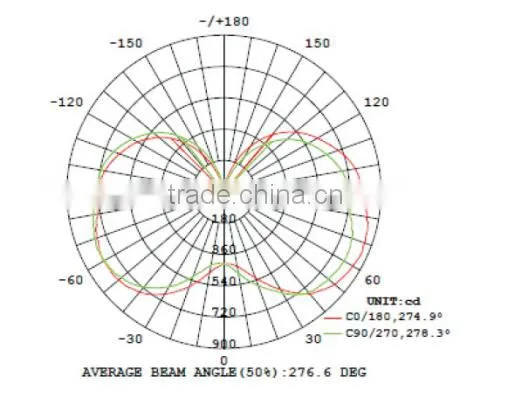

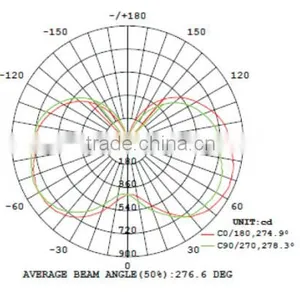

---Light distributor curve of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

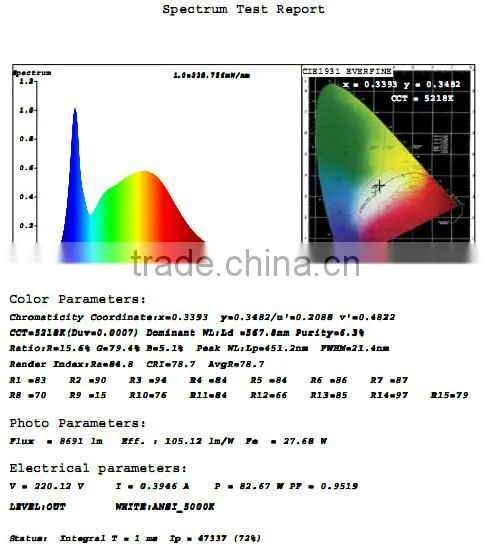

---Actual test result @5000K of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

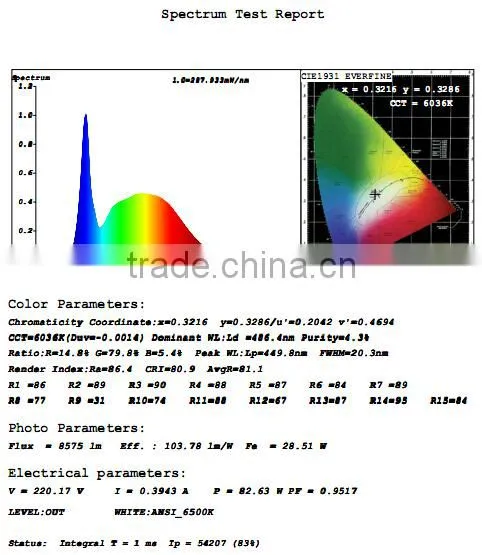

---Actual test result @6000K of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

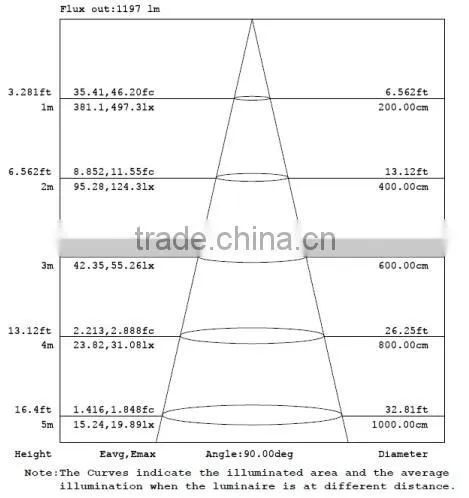

---Lux measurement of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

Packaging & Shipping

---Packing of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

Pack Quantity	4pcs
Net Weight	3.9lbs/1735g
Gross Weight Per CTN	19lbs/8.62kg
Box Size	7.47.412" 188188305mm
CTN Size	15.715.712.8" 400400325mm

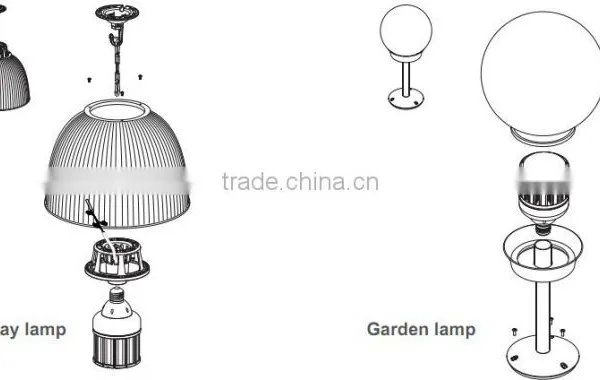

---Application of 80W IP64 UL listed led corn lamp with SAMSUNG SMD5630 LED Chips (Built-in driver)

FAQ

Q: How to get warranty?

A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.

Q: OEM design for packaging acceptable?

A: Yes, MOQ is 200pcs per order.

Q: What is MOQ?

A: 4pcs, because standard packing is 4pcs per carton.

Q: Sample policy?

A: clients need to pay for samples and shipping costs.

Q; Payment term?

A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.

For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.

For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.

Q: How to be our distributor?

A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.

Q: How to order?

A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
