Home > Products > LED Light Fixture > Singapore, Dia240mm 10Inch 16W Surface Mount LED Ceiling Lght, Round Surface Mount LED Downlight
Singapore, Dia240mm 10Inch 16W Surface Mount LED Ceiling Lght, Round Surface Mount LED Downlight
- SHENZHEN SINGAPORE
- T/T Credit Card
You May Like
-

                        Singapore, Dia300mm 12Inch 22W Surface Mount LED Ceiling Lght, Round Slim Profile LED Ceiling Light
-

                        Singapore 150W UL Listed Gas Station LED Canopy Light,CREE LEDs, Light Sensor, Motion Sensor, Emerency, Dimmable IP65 UL LED Can
-

                        Singapore UL Listed 60W MLED Petro Station Light, Osram LEDs,Pure Aluminum, Emerency, Dimmable IP65 UL Petro Station Led
-

                        Singapore, 20W, 300x300mm Waterproof Flush Mount LED Ceiling Lite, Surface Mount Square IP65 LED Ceiling Light
-

                        Singapore UL 130W Aluminum LED Canopy Light, Osram LEDs, Pure Aluminum, Emerency, Dimmable IP65 UL Approved LED Canopy Fit
-

                        Singapore, 20W, Dia300mm Flush Mount IP65 LED Ceiling Light, Surface Mount Round Waterproof LED Ceiling Light
Product Details
| LED Light Source | SMD2835 | Install Style | Surface Mounted | |
| Input Voltage(V) | 100-240V | Lamp Power(W) | 16 | |
| Lamp Luminous Flux(lm) | 1100-1250Lm | Lamp Luminous Efficiency(lm/w) | 70 | |
| Color Temperature(CCT) | Other, 2800-3300K, 4000-4500K, 6000-6500K | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CE, EMC, LVD | |
| Place of Origin | Singapore | Brand Name | Green Power | |
| Model Number | ILT-CH07-16W |
Product Description
Product Name:  Singapore, Dia240mm 10Inch 16W Surface Mount LED Ceiling Lght, Round Surface Mount LED Downlight

Model: ILT- CH07-16W

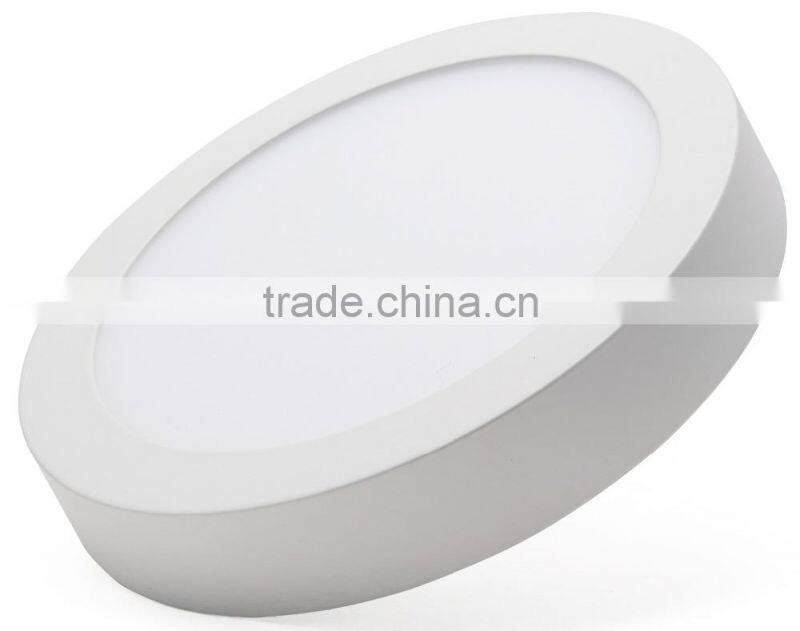

---Picture of Dia240mm 10inch 16W Round Surface Mount LED Downlight

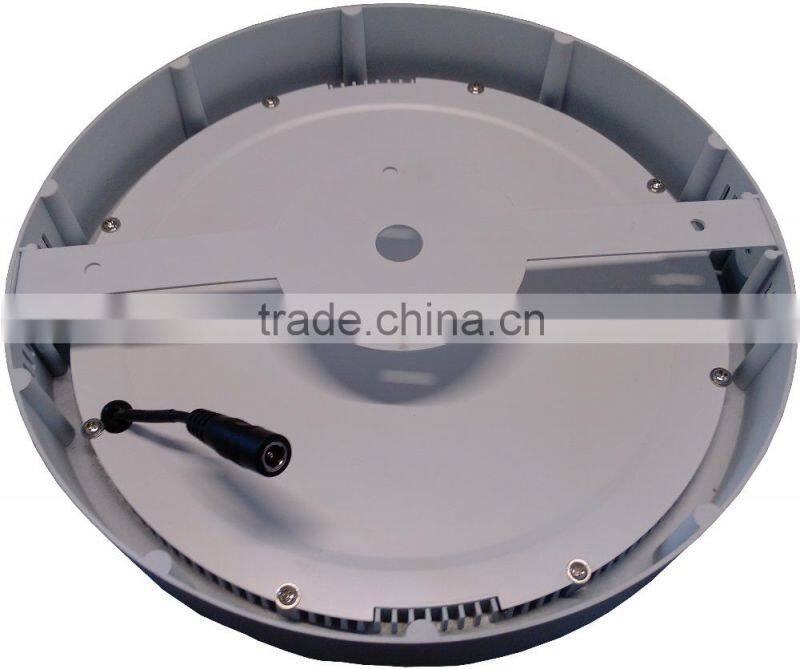

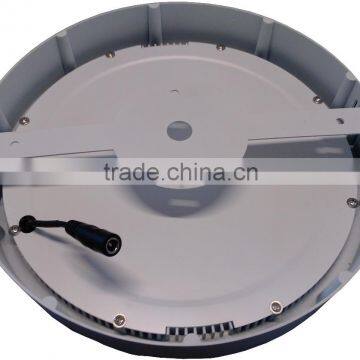

---Back view of Dia240mm 10inch Slim Round Surface Mount LED Downlight
Features:
LED Chips: SMD2835 by Epistar
Material: PMMA+Aluminum
Input voltage: 100-240Vac
Life span: 40,000hours
Protection rate: IP20
Working Temperature: -20~40Celsius degree

  Technical Parameter :

| LED Power | System Power | Size | LED Qty | Input current | Working voltage | Lumen | Net Weight | ||
| A | B | E | |||||||
| 14W | 16W±1 | 240mm | 190mm | 40mm | 72 | 360mA | DC30-42V | 1100-1250Lm | 1.0KG |
Notes:
- Do not remove the light or replace components at will to avoid accident of electric shock or light fixture falling.
- All the instruction, maintenance, and checking should be operated under professional technical person to - avoid any dangers.
- Please do not install the light in high temperature or humid place.
Installation:

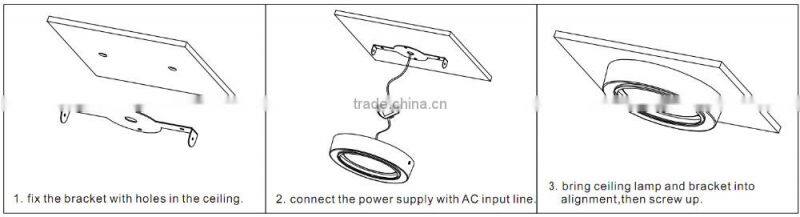

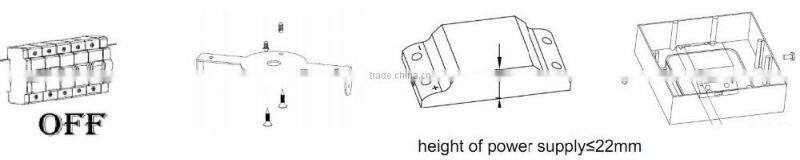

---Installation Diagram of Dia240mm 10inch Slim Round Surface Mount LED Downlight

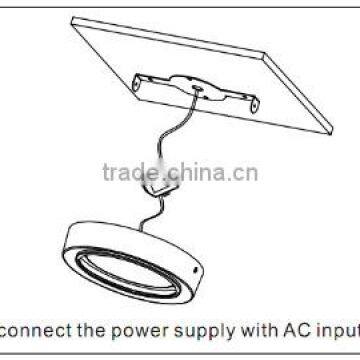

---Installation of Dia240mm 10inch Slim Round Surface Mount LED Downlight

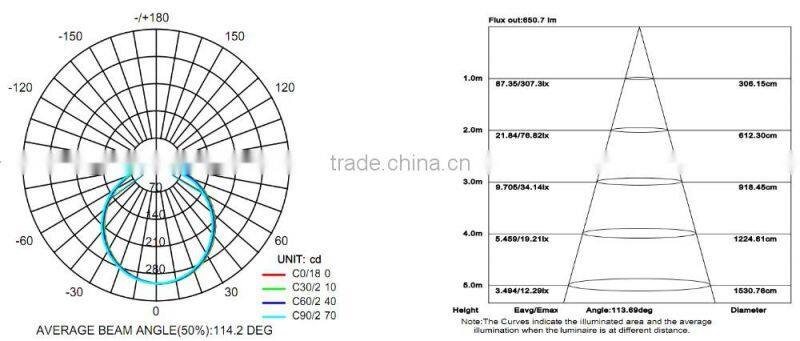

---Light distributor and lux measurment of Dia240mm Slim Round Surface Mount LED Downlight
Packing:
| Max Power | Size | Qty/ctn | Inner box sizes | Ctn weight | Carton size |
| 16W | Φ240x40mm | 10pcs | 260*310*55mm | 14KG | 570*320*280mm |
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
