Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar

Name: Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar
Brand: Green Power
SKU: 126885859
Availability: InStock

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-1

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-2

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-3

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-4

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-5

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar thumbnail-6

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-1

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-2

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-3

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-4

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-5

Singapore, IP40 Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, DC12/24V Aluminum Linear LED Bar photo-6

US$ 1 - 999 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

SMD2835, SMD5050, SMD5630

Type:

LED Bar Lights

Input Voltage(V):

DC12V/24V

Contact Supplier Request Quote Chat Now

Infinity Lighting Technology Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN SINGAPORE

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD2835, SMD5050, SMD5630

Type LED Bar Lights

Input Voltage(V) DC12V/24V

Lamp Power 7-16W

Lamp Luminous Flux(lm) 360-1440LM

Color Temperature(CCT) 2700-6500K

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

Certification CE, EMC, LVD

Emitting Color Other, 2900-6500K

Place of Origin Singapore

Brand Name Green Power

Model Number ILT-RL01-A

Product Description

Product Name: Singapore, Aluminum Linear Rigid LED Light Bar, 0.3M, 0.5M, 0.6M, 1.0M, 1.2M, SMD2835, SMD5050, SMD5630,12/24V IP40 Aluminum Linear LED Bar

Model: ILT-RL-01-A

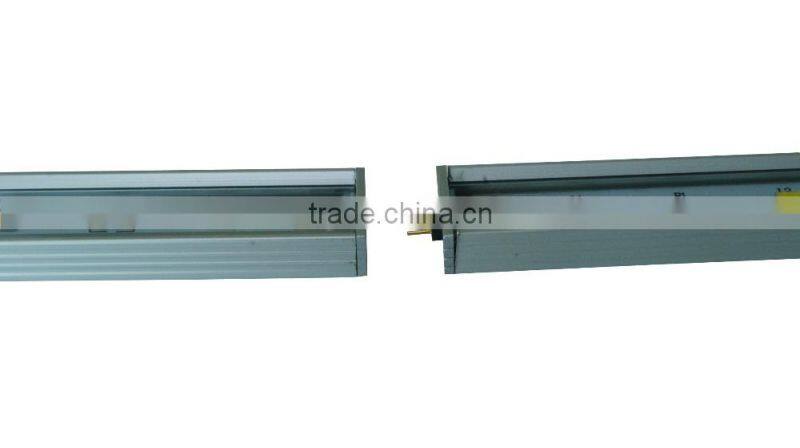

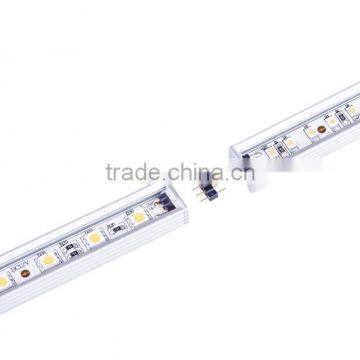

--- IP40 Aluminum Linear LED Bar with Pins connection

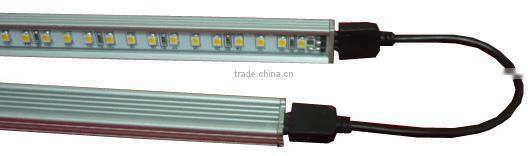

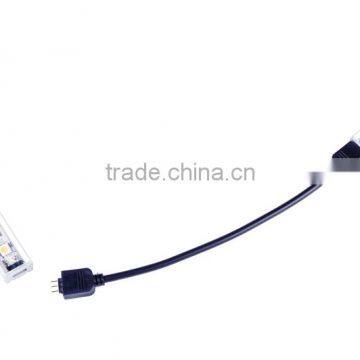

---IP40 Aluminum Linear LED Bar with Cable connection

Feature:

1. Super brightness SMD2835, SMD5050 or SMD5630 LED Chips.

2. Length: 0.3M/0.5M/0.6M/1.0M/1.2M for option.

3. Max length connected: 3.5M. So 0.3M strip can be connected one by one at one time with 12pcs, 7pcs of 0.5M, 6pcs of 0.6M, 3pcs of 1.0M, 3pcs of 1.2M.

4. Driver: External, Not included

5. Sealed method: Pins.

6. IP rating: IP40.

7. Ways to fix: fixed type and adjustable type.

8.. Aluminum alloy housing, low heat-release, long lifetime for 50,000 hours.

Parameter:

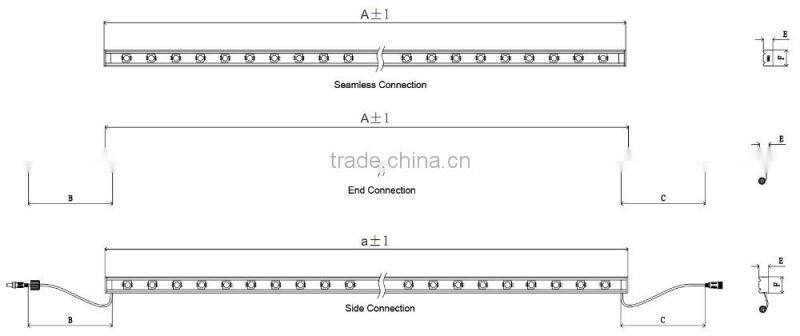

Watt/Length	Size(mm)					Led chips			Lumens (±10%)	Max connect qty
Watt/Length	A	a	B/C	E	F	2835	5050	5630	Lumens (±10%)	Max connect qty
4.0W/0.3M	300	308	150	9	15	36pcs	18pcs	9pcs	360 lm	12pcs
7.0W/0.5M	500	508	150	9	15	60pcs	30pcs	15pcs	600lm	7pcs
8.4W/0.6M	600	608	150	9	15	72pcs	36pcs	18pcs	720lm	6pcs
14.0W/1.0M	1000	991	150	9	15	120pcs	60pcs	30pcs	1200lm	3pcs
16.8W/1.2M	1200	1191	150	9	15	144pcs	72pcs	36pcs	1440lm	3pcs

Input voltage: 12V/24V DC

LED Driving Current: 60mA

CRI: >80Ra

Beam angle: 120°

Color temperature: 2900-6500K

Working temperature: -20℃~+40℃

Connection methods:

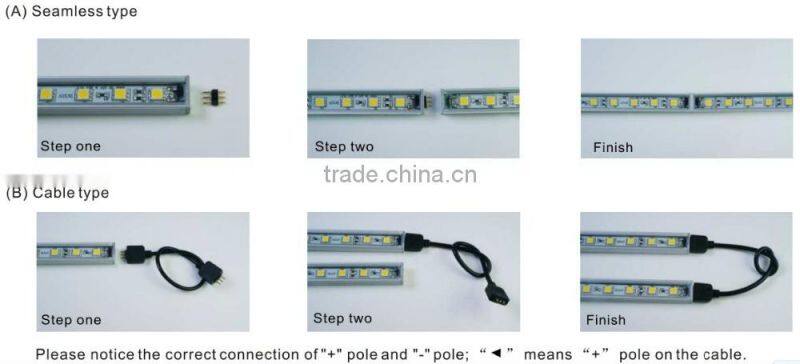

--- Connection methods of 12V/24V IP40 Aluminum Linear LED Bar

Accessories:

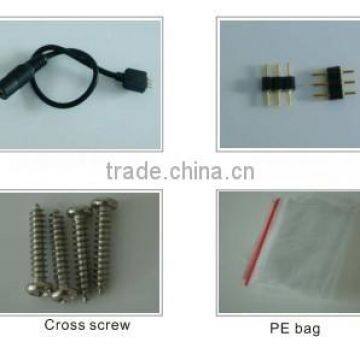

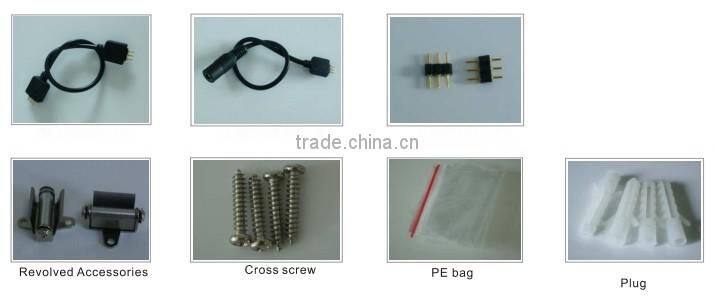

--- Accessories of 12V/24V IP40 Aluminum Linear LED Bar

Installation:

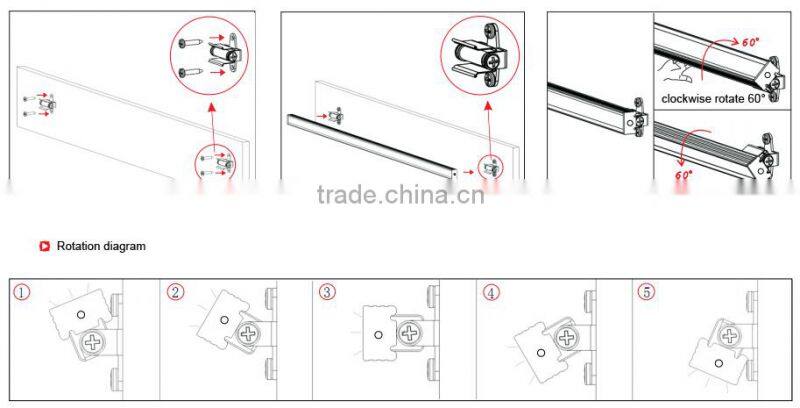

---Installation diagram of 12V/24V IP40 Aluminum Linear LED Bar

Application:

Cabinet. Under cabinet, bookshelf, cupboard. Showcase, ceiling, the wall

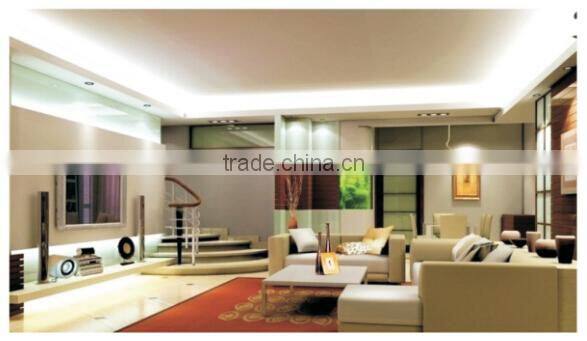

----application of 12V/24V IP40 Aluminum Linear LED Bar

Test

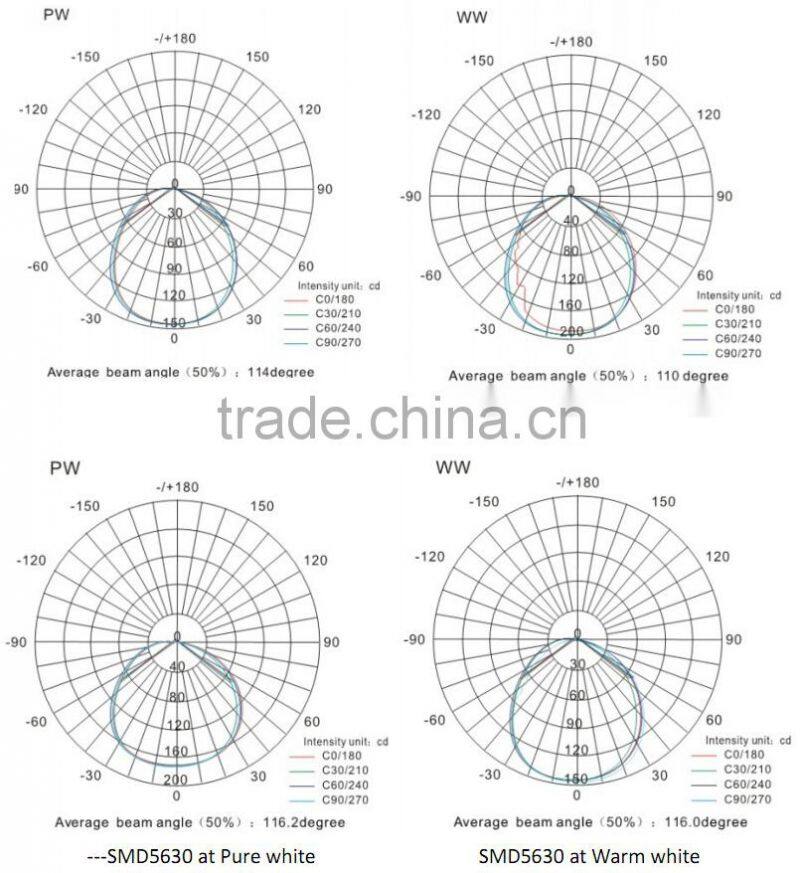

-Light intensity distribution of 12V/24V IP40 Aluminum Linear LED Bar

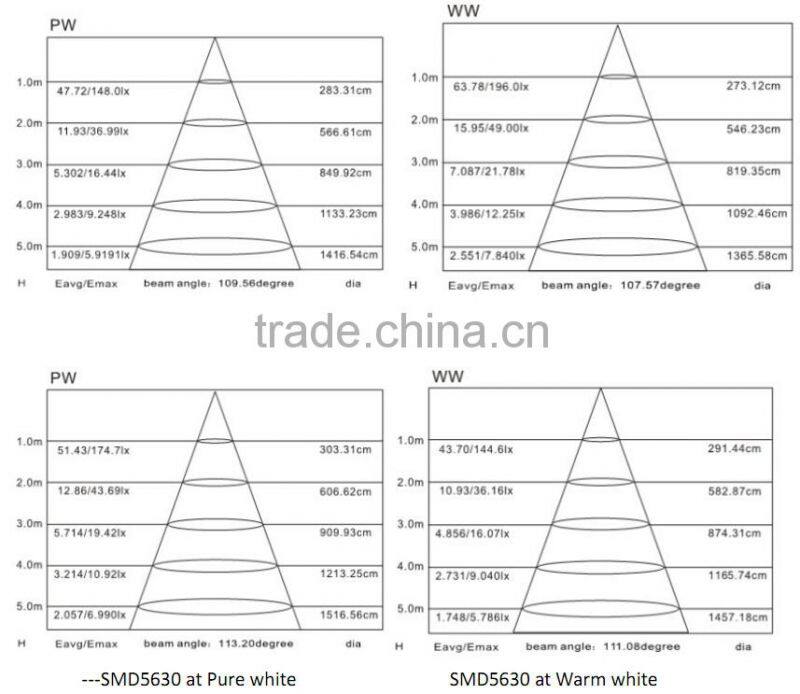

---Lux Measurement of 12V/24V IP40 Aluminum Linear LED Bar

Packaging & Shipping

Watt/Length	Net weight/pc	Qty/inner box	Carton size(mm)	Qty/ctn	Gross weight/ctn
4.0W/0.3M	56g	3pcs	320155160	90	6.0kg
7.0W/0.5M	93g	3pcs	520155160	90	9.9kg
8.4W/0.6M	111g	3pcs	620155160	90	11.9kg
14.0W/1.0M	186g	3pcs	1015155160	90	20.0kg
16.8W/1.2M	222g	3pcs	1215155160	90	24.0kg

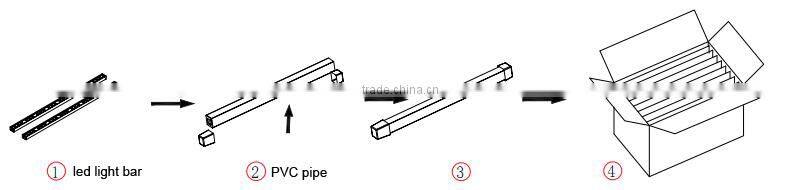

--Packing Method of 12V/24V IP40 Aluminum Linear LED Bar

Note:

1. Read the instruction carefully before use.

2. Please ensure the label of packing match with actual product.

3. Please make sure the power is off before use. Please choose right power supply to match the product.

4. Please do not touch the product surface when it is lighting, do not see the light sources by eyes directly.

5. Can be used indoors and outdoors.

6. Please do not put the product as children toy.

FAQ

Q: How to get warranty?

A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.

Q: OEM design for packaging acceptable?

A: Yes, MOQ is 200pcs per order.

Q: What is MOQ?

A: 4pcs, because standard packing is 4pcs per carton.

Q: Sample policy?

A: clients need to pay for samples and shipping costs.

Q; Payment term?

A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.

For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.

For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.

Q: How to be our distributor?

A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.

Q: How to order?

A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
