Product name: Singapore 9W, 2.5inch or 3.5inch cover, 110Lm/W Emergency LED Downlight Kit,Samsung LED, Dimming detachable
Model: ILT-CH17-9W
Option:
1) LED brand: Samsung from Korea or San`an from China mainland
2) Dimmable or not dimmable
3) 9W with 2.5inch cover or 3.5inch cover,
4) Cover in silver, white, black or golden
5) with emergency backup or without emergency backup
Product detailes:

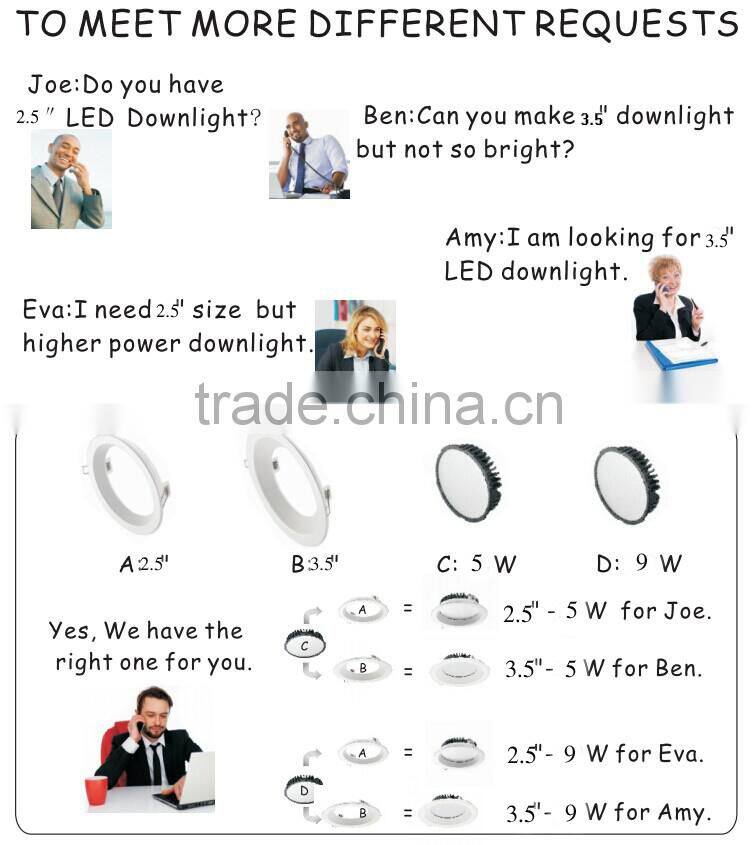

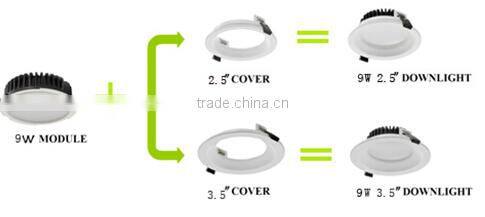

---detachable design to be compatible with 2.5inch and 3.5inch cover ( detachable recessed led downlight fitting)
Product pictures:

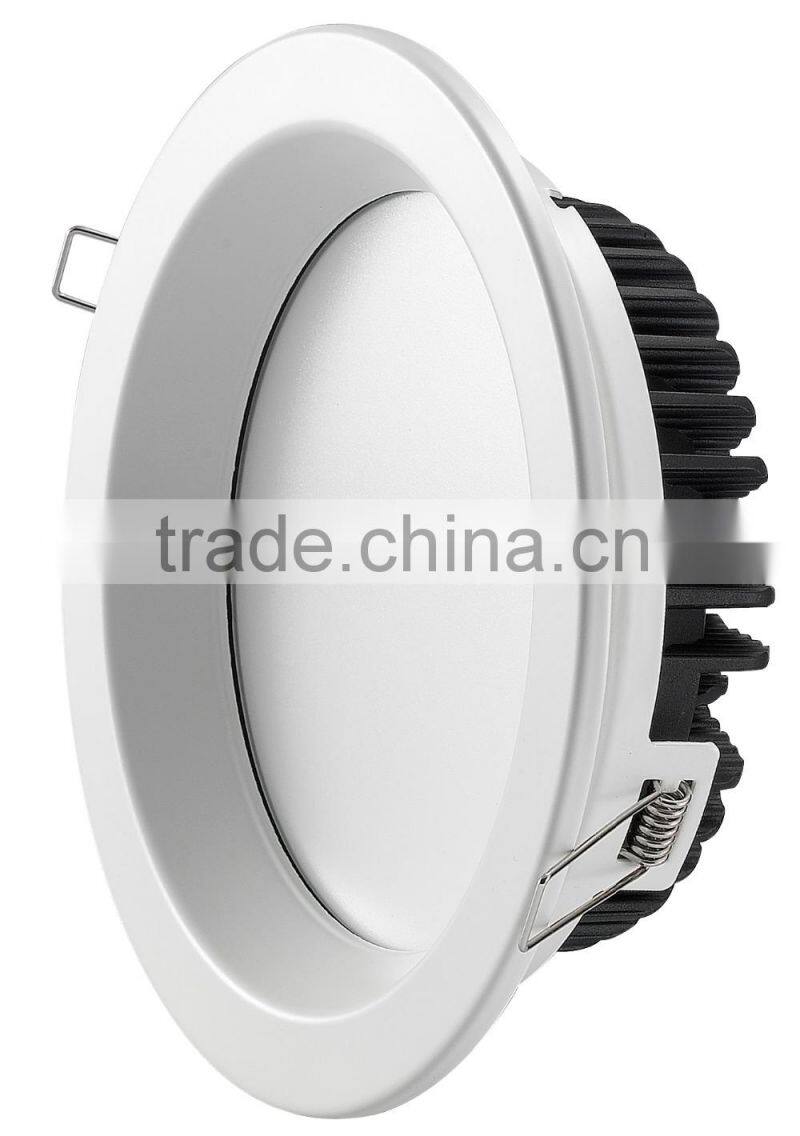

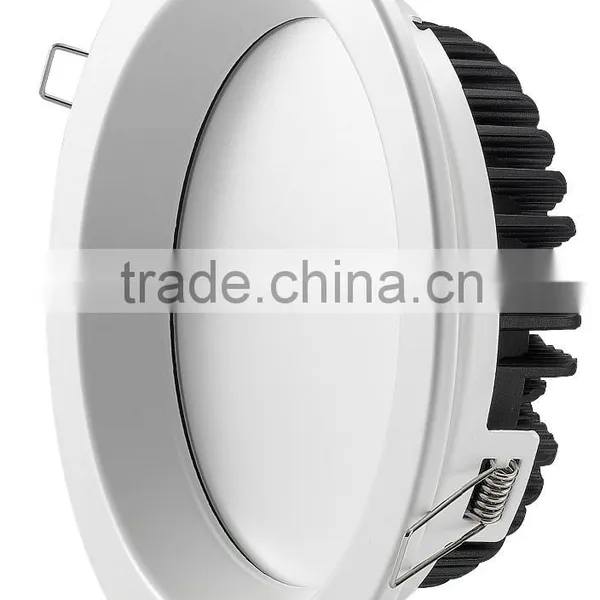

--front view of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

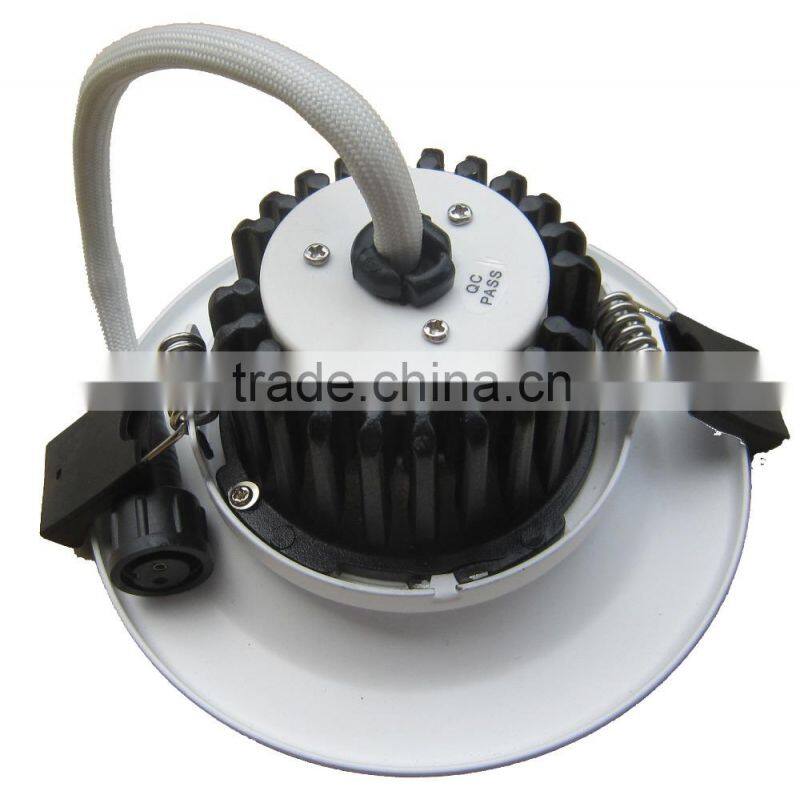

----Back view of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

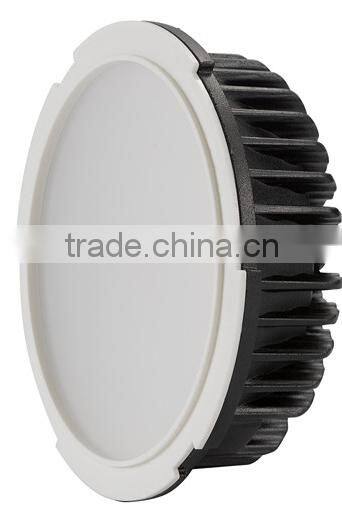

---LED Module of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)
Specification:
Material: Aluminum housing+PC cover
Color Rendering Index: CRI>80Ra
Lumen efficiency: >104Lm/W for Samsung leds, or >90Lm/W for Sanan leds
Input voltage: AC110/220V
Color Temperature: 2700K-3000K, 4000K-4500K, 6000-6500K
Beam Angle: 140degree
IP rating: IP20
PF: >0.95
Installation type: Embedded
Operating Temperature: -10℃~40℃

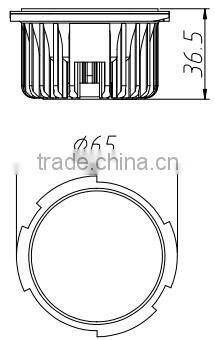

---LED Module sizes of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

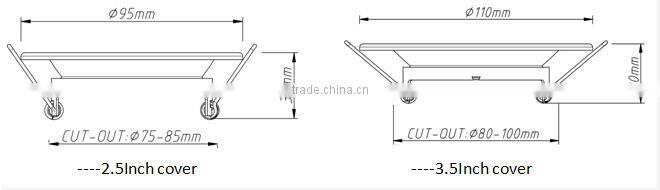

----cover sizes of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

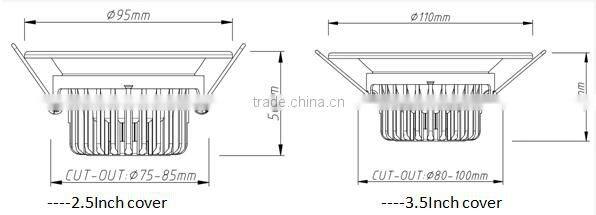

---Completed product sizes of 9W detachable recessed led downlight fitting (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

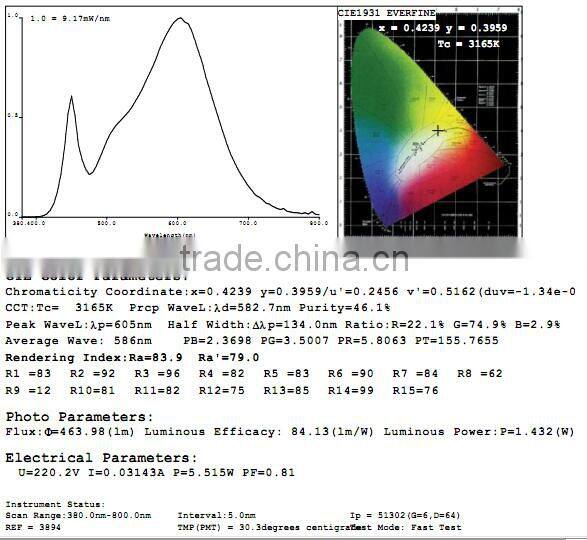

---Actual test result @3000K of 5W detachable recessed led downlight (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

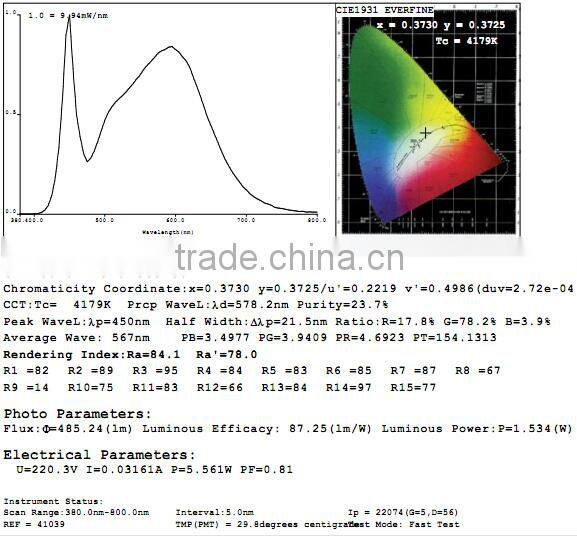

---Actual test result @4000K of 5W detachable recessed led downlight (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)
---Actual test result @6000K of 5W detachable recessed led downlight (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)

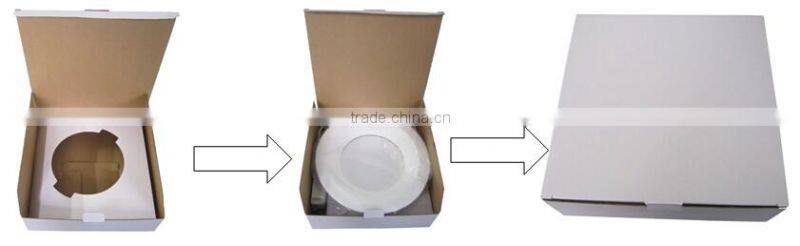

----Packing of 5W detachable recessed led downlight (dimmable with samsung led chips and Lifud driver, 2.5inch or 3.5inch cover compatible)
Light dimension |
Pcs/ctn |
G.W/ctn |
Ctn sizes in mm |
Φ145*53mm |
20pcs |
15Kg |
390*350*360mm |
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
