Product name: Singapore, 18W, 6inch or 8inch or 10inch cover, 110Lm/W, Samsung LEDs, Emergency, Triac Dimming detachable led downlight kit
Model: ILT-CH17-18W
Option:
1) LED brand: Samsung from Korea or San`an from China mainland
2) Dimmable or not dimmable
3) 18W with 6inch cover or 8inch cover or 10inch,
4) Cover in silver, white, black or golden
5) with emergency backup or without emergency backup
Product detailes:

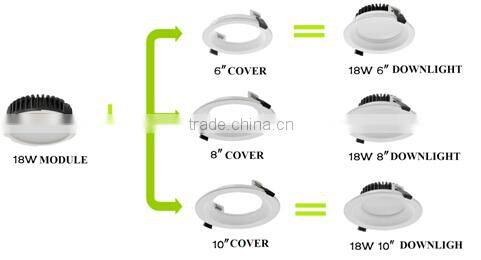

---detachable design to be compatible with 6inch,8inch and 10inch cover ( detachable COB led downlight )
Product pictures:

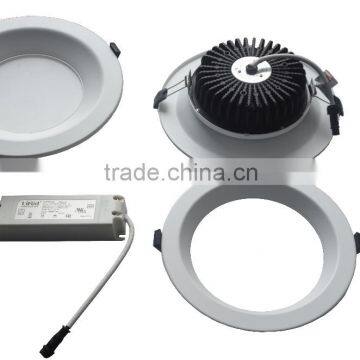

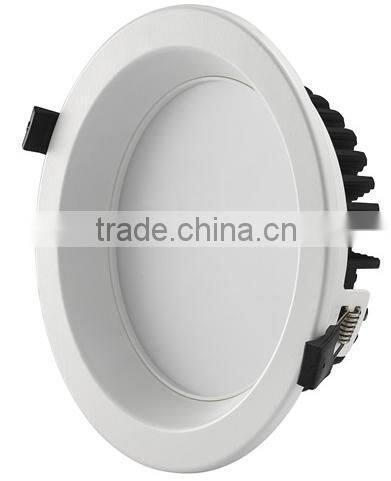

----front view of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

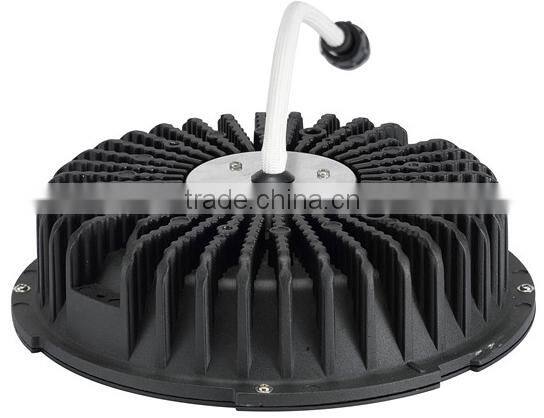

----Back view of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

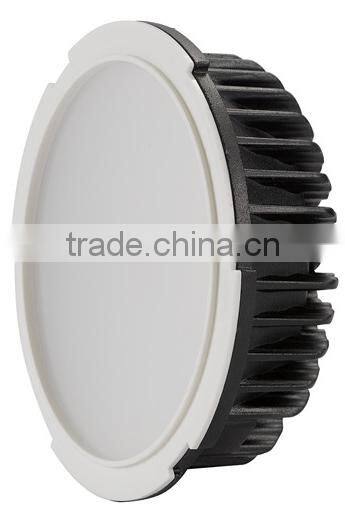

---LED Module of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)
Specification:
Material: Aluminum housing+PC cover
Color Rendering Index: CRI>80Ra
Lumen efficiency: >104Lm/W for Samsung leds, or >90Lm/W for Sanan leds
Input voltage: AC110/220V
Color Temperature: 2700K-3000K, 4000K-4500K, 6000-6500K
Beam Angle: 140degree
IP rating: IP20
PF: >0.95
Installation type: Embedded
Operating Temperature: -10℃~40℃

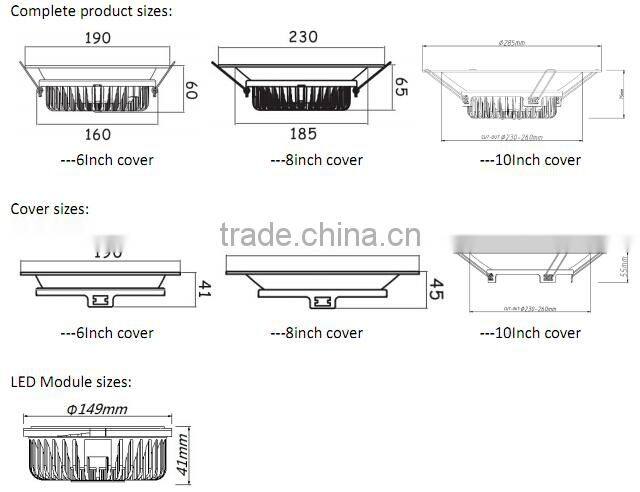

---Sizes of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

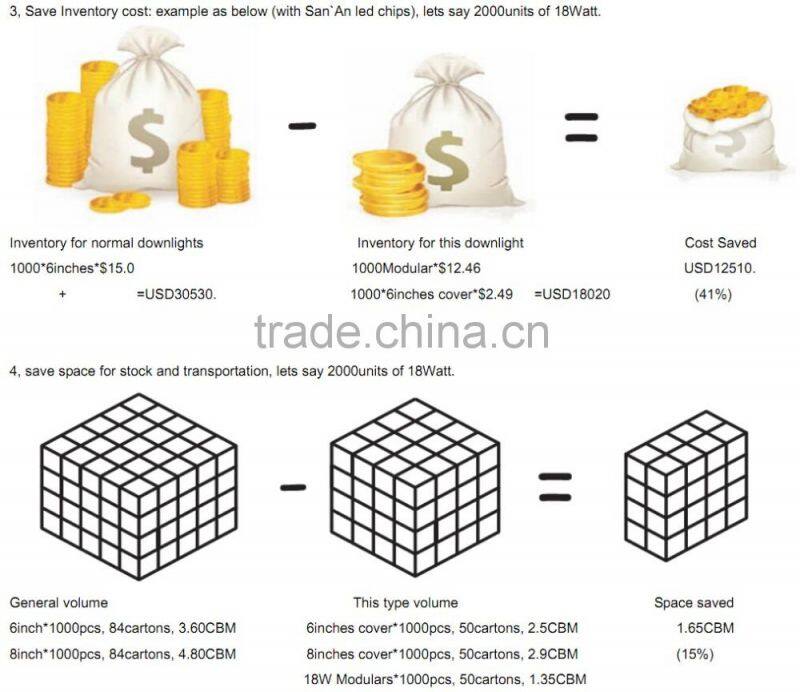

---savings caculation of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

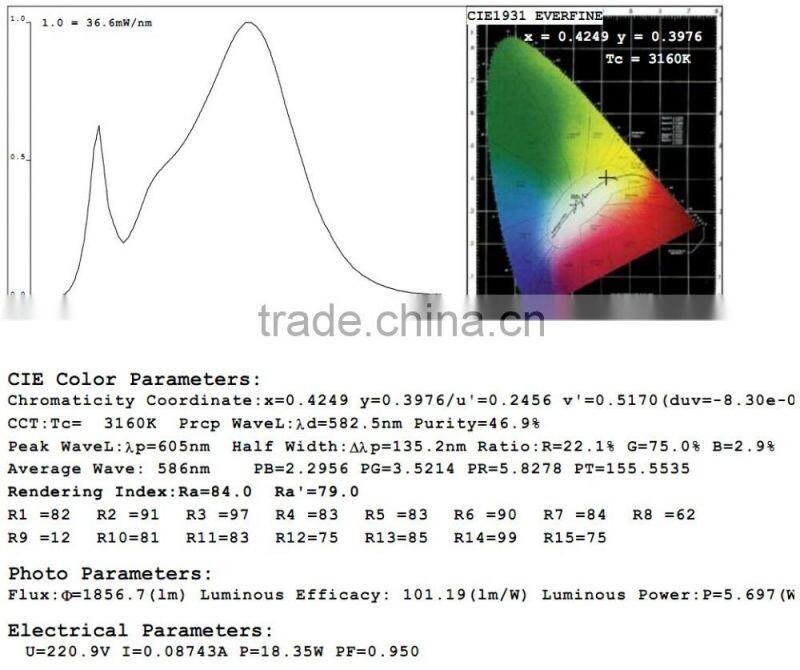

---Actual test result @3000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

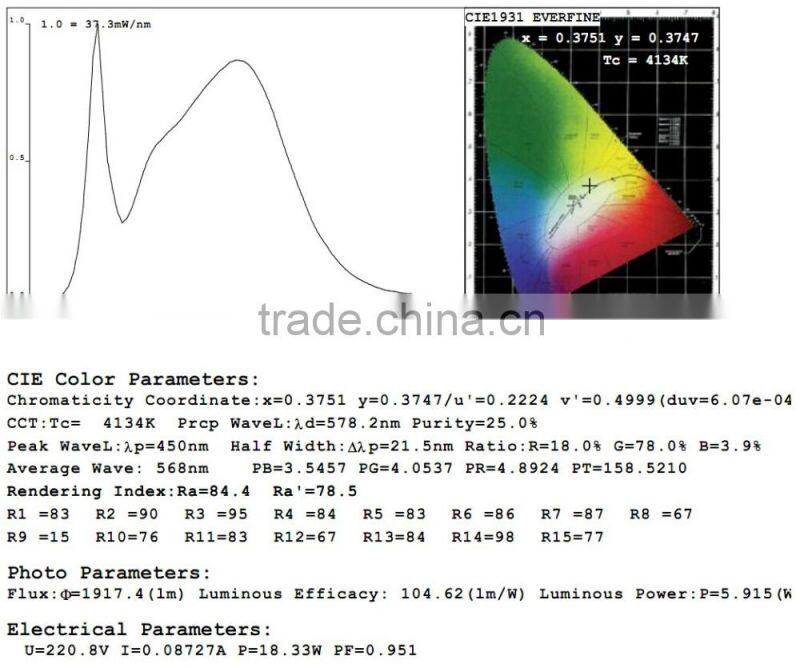

---Actual test result @4000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

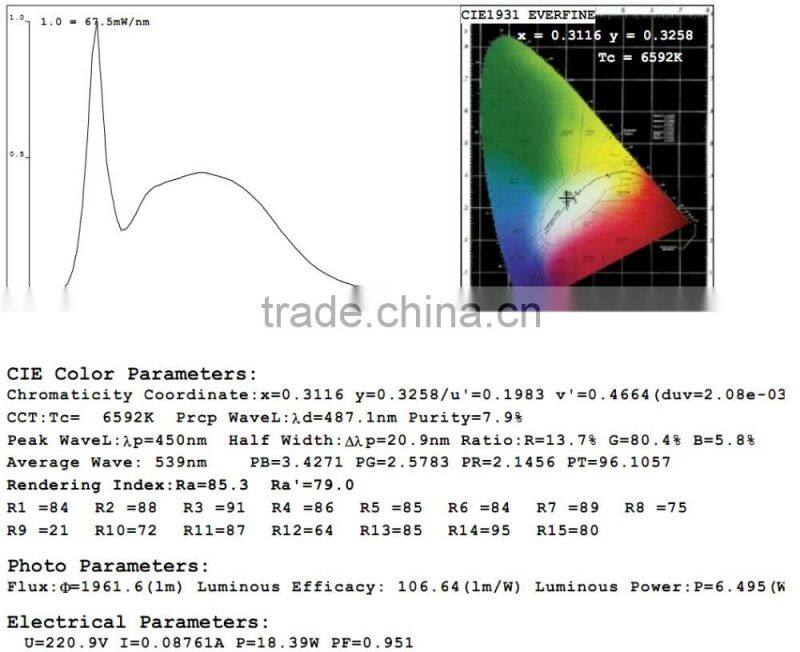

---Actual test result @6000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

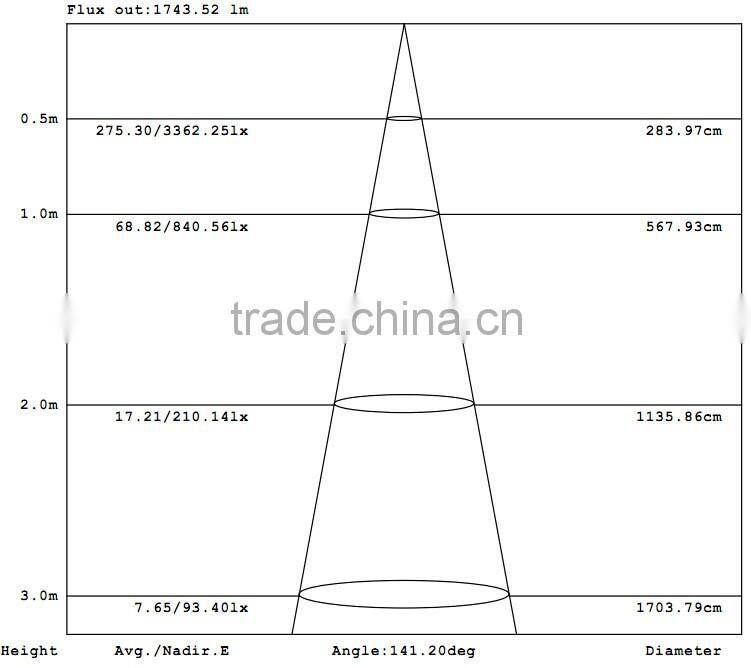

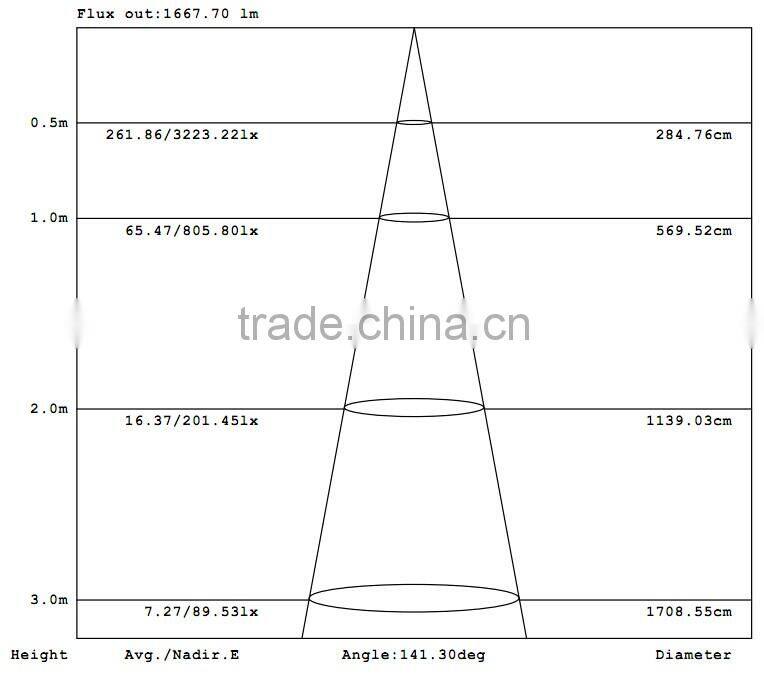

---Lux measurement @3000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)
---Lux measurement @4000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)
---Lux measurement @6000K of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)

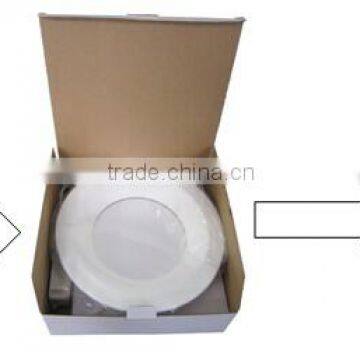

----Packing of 18W detachable COB led downlight (dimmable with samsung led chips and Lifud driver, 6inch or 8inch or 10inch cover compatible)
Light dimension |
Pcs/ctn |
G.W/ctn |
Ctn sizes in mm |
Φ190*60mm |
12pcs |
11KG |
415*215*470mm |
Φ230*65mm |
12pcs |
13Kg |
485*250*470mm |
Φ285*75mm |
10pcs |
9Kg |
610*310*310mm |
Q: How to get warranty?
A: Send us email to explain problem with pictures including application, based on correct usage, we send new lamps for replacement free of charge, shipping cost by us within first year or by clients since 2nd years.
Q: OEM design for packaging acceptable?
A: Yes, MOQ is 200pcs per order.
Q: What is MOQ?
A: 4pcs, because standard packing is 4pcs per carton.
Q: Sample policy?
A: clients need to pay for samples and shipping costs.
Q; Payment term?
A: For samples(<USD5000): By bank transfer or Western Union, 100% deposit.
For order(USD5000-20,000): By bank transfer, 30% deposit and balance before shipment.
For order(>USD20,000), 30% deposit by bank transfer, and balance by bank transfer or by LC at sight.
Q: How to be our distributor?
A: Any clients can act as our distributor if yearly purchase amount can reach USD100000.
Q: How to order?
A: Please tell us our model numbers, lamp power, input voltage, order quantity, shipping methods(by sea, by air or by express) and your company contact information.
