Help CenterAutomatic Production Line for Pail in Can Making Industry
Related Products
60 pails/minute fully automatic can making machine pail making machine drum making machine for 10-30 liter container
1.inverse welding
2.internal/external coating
3.high-frequency induction drying
4.state of the art in making large can
5.fully automatic

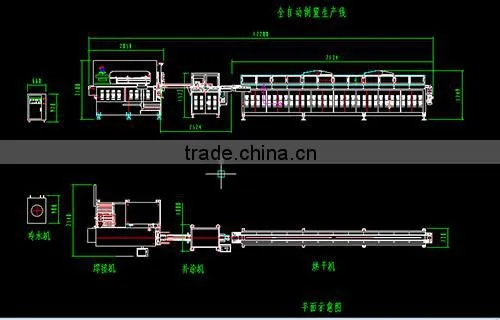

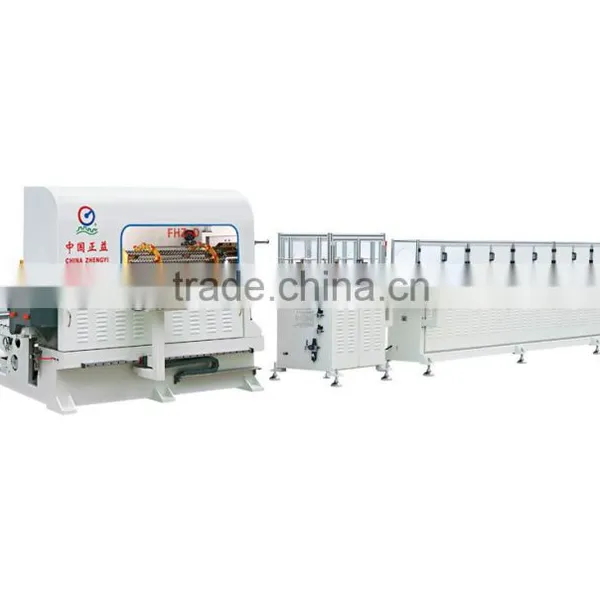

plete production line to make can

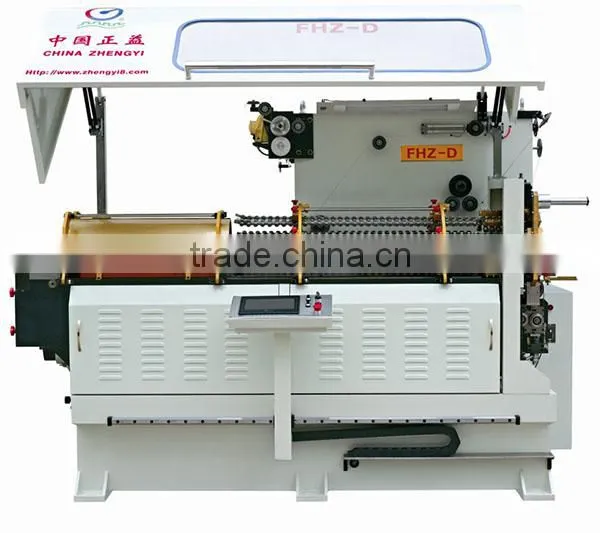

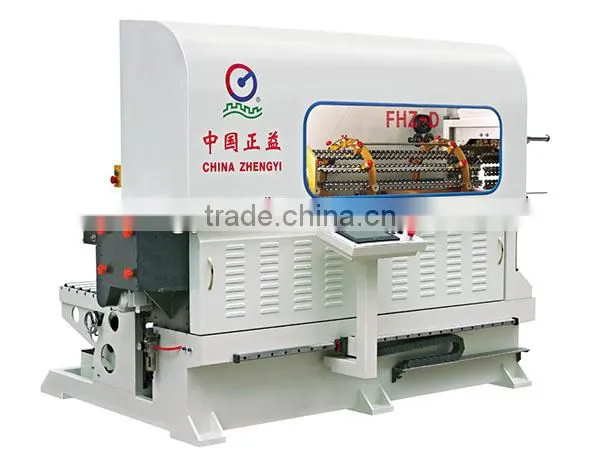

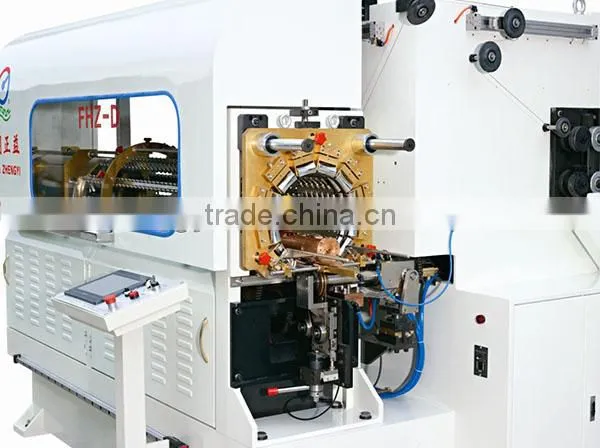

FHZ-D WELDER PARAMETER
Model |
FHZ-D |
|
Welding speed |
6-24m/min |
|
Production rate |
30-45cans/min |
|
Application range |
Body diameter |
|
Body height |
180-395mm |
|
Sheet thickness |
0.28-0.38mm |
|
Overlap |
0.6-0.9mm |
|
Welding spot distance |
0.5-0.9mm |
|
Applicable material |
material: tin plate |
|
tin coating mass: 5#(1.12g/ | ||
hardness:T2.5(HR30T55±3)-DR8(HR30T73) | ||
Copper wire |
|
|
Input power |
voltage: 380V±10% frequency: 50Hz power:22KW |
|
Inverter |
max:15KVA 50A |
|
Cooling water |
temperature:12-18°C flow:20L/min press:392-490KPa(4-5KGf/c |
|
Compressed air |
press:490KPa(5Kgf/c air flow:800L/min |
|
Nitrogen |
press:2.5Kgf/c |
|
Dimension(LxWxH) |
2543x2480x2052mm |
|
All specifications, dimensions and design characteristics shown in
this manual are subject to change without notice.
Our major component suppliers:
1. Pneumatic elements are purchased from Japanese “SMC”
2. Hydraulic elements are purchased from Taiwan precision brand
3. Electronic control devices are purchased from “Schneider”, “Omron” and some domestic suppliers
4. Worktable surface is produced by #304 stainless steel gold plated
5. Machine surface paint is purchased from “NAVECO” car paint
