LM-HVY01 HDMI to Component VGA/RGB/YPbPr Converter Support HD Format From 480i to 1080p

HDMI to VGA/RGB/YPbPr Converter

Features

♦ Two digital HDMI 19p female port(100%digital)

♦ Convert HDMI input to RGBhv/YPbPr/YCbCr output with a 15 pin HD-sub(VGA style)jack

♦ Two channels input can be switched easily

♦ Users can choose RGBHV or component(YPbPr/YCbCr)output with a switch

♦ RGB 4:4:4(8bits)digital input

♦ YPbPr 4:4:4 or YCbCr 4:2:2 digital output

♦ Stereo high-quality analog or digtal/optical audio output(s/PDIF format)

♦ HDCP Compliant &DVI 1.0 Compliant

♦ Supports 1.5Gbps signaling rate

♦ Supports HD format from 480i to 1080p

♦ Green LED light indicates the connection status

Specification

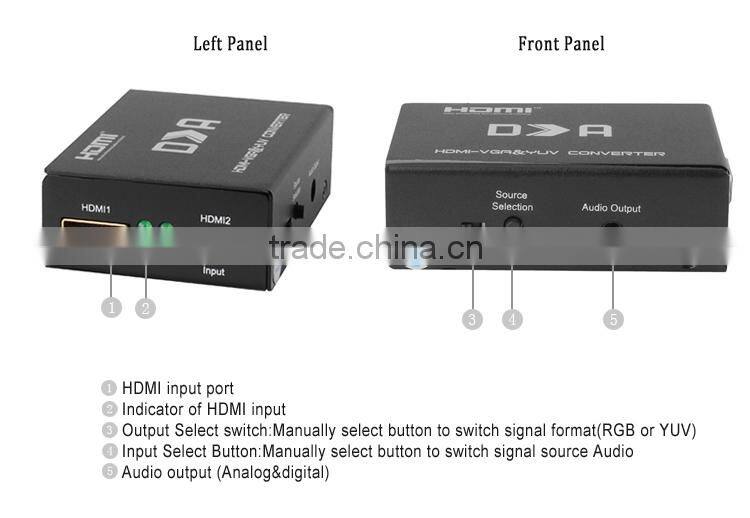

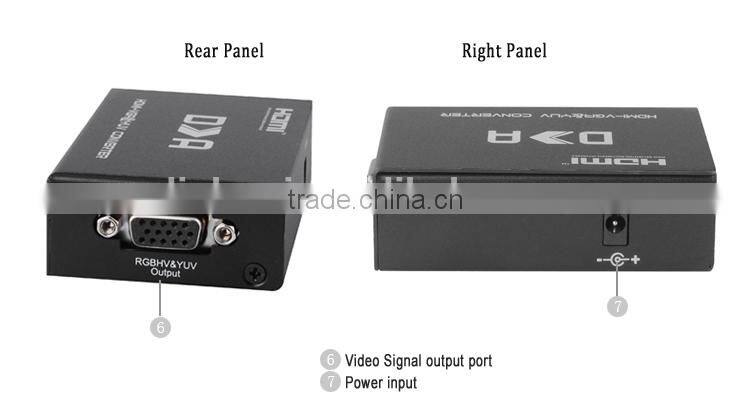

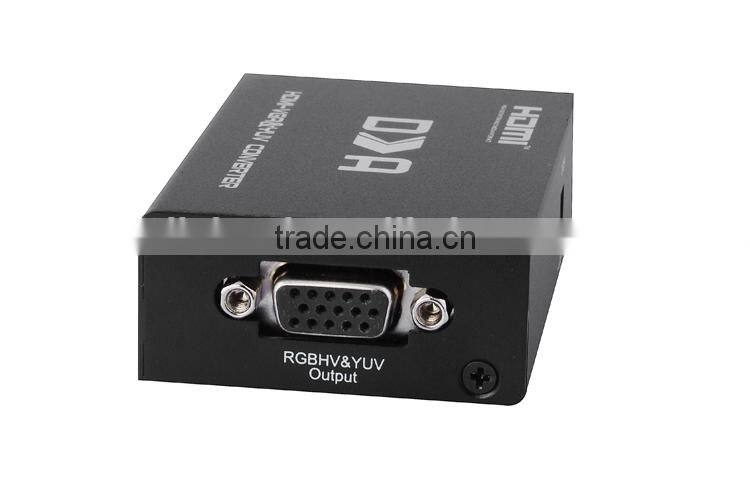

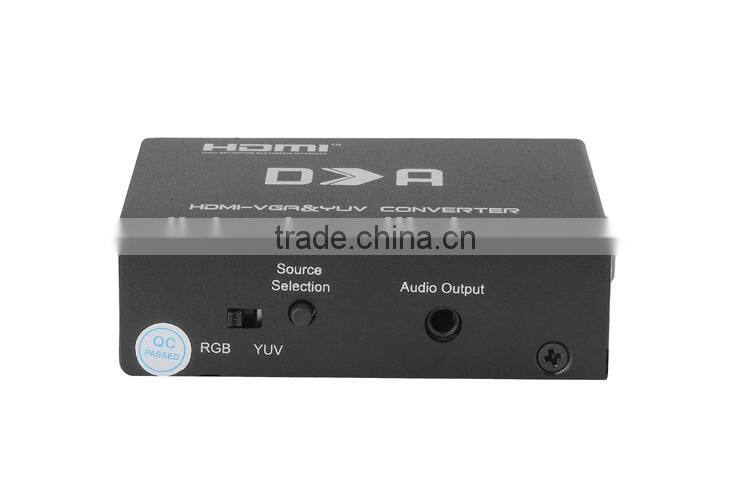

Panel Description

Connection and Operation

♦ Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.

♦ Connect the HDMI output (such as :HD-LCD,HD-DLP) into HDMI output.

♦ Connect the audio output into audio device.

♦ Insert the DC side of 5v power supply into power input and then connect the AC side of the power supply into the wall outlet

Attention: Insert/Extract cable gently.

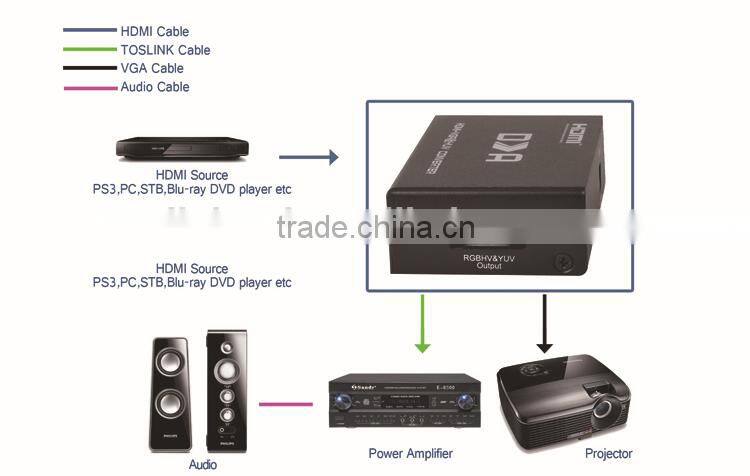

Wiring Diagram

Packing Contents: HDMI to VGA/RGB/YPbPr Converter

♦ Main Unit. HDMI to VGA/RGB/YPbPr Converter

♦ DC5V 1A Power Supply

♦ Operating Instructions

♦ VGA to RCA cable

♦ Toslink cable
