8-32mm 16x16 and 8T White Zinc Plated Clevis With M8
US$ 0.416 - 0.473
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CL
Model Number:
CL06
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12-37mm 20x20 and 8T Yellow Zinc Plated Clevis With M10US$ 0.361 - 0.375MOQ: 5000 Pieces -
Gas Spring U-fork/yokeUS$ 0.198 - 0.428MOQ: 5000 Pieces
-
5-20mm 10x10 Yellow Zinc Plated Clevis With M6 for Gas SpringUS$ 0.272 - 0.312MOQ: 2000 Pieces
-
19-25mm 7T White Zinc Plated Clevis/yoke With M8 for Gas SpringUS$ 0.231 - 0.297MOQ: 5000 Pieces
-
12-37mm 20x20 and 8T Yellow Zinc Plated Clevis With M10 for Gas SpringUS$ 0.322 - 0.362MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
CL
Model Number
CL06
Specifications
gas spring white zinc plated Clevis1.clevis Inner thread M8
2.Bore eye Diam 8mm
3.Width between two eyes 8mm
8-32mm 16x16 and 8T white zinc plated Clevis with M8
- We have attained ISO9001 certification and also have been audited by the SGS Group.
- Material: Low carbon steel or Mild stell, Q235.
- Surface protection: White zice plating
- Optional: Electroplated, Phosphatized and oiled, galvanized in white or yellow or blue or black, passivated by chrome or nickle.
- A wide range of clevises in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

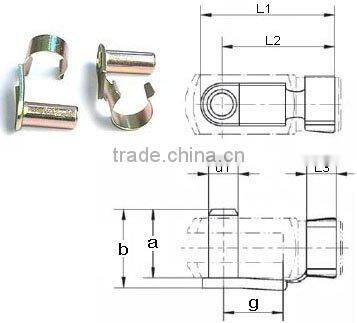

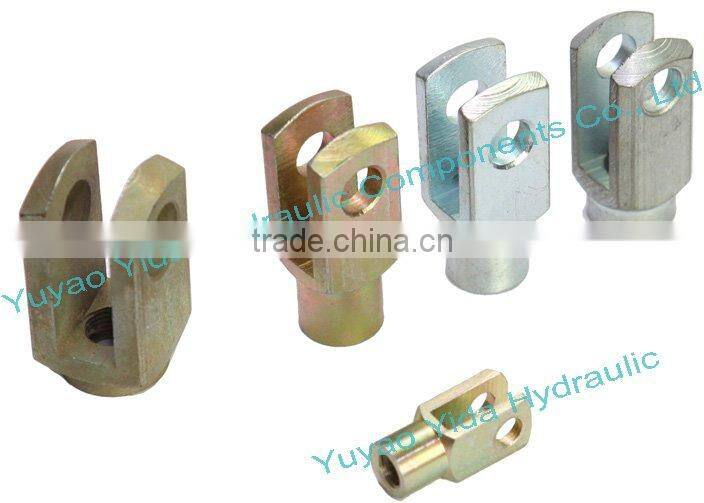

More photos & Drawing ABOUT Gas spring Clevis:
Clevis, Fork heads, U-fork (dimension in mm) | ||||||||||
Type |
M |
a1 |
d1 |
L1 |
L2 |
L3 |
d3 |
a2 |
b |
g |
CL01 |
M6 |
10 |
5 |
26 |
20 |
7 |
9.5 |
10 |
5.5 |
9 |
CL02 |
M6 |
10 |
5 |
26 |
20 |
7 |
9.5 |
10 |
5.5 |
9 |
CL03 |
M8 |
16 |
8 |
34 |
24 |
7 |
14 |
16 |
8 |
15 |
CL04 |
M8 |
16 |
8 |
42 |
32 |
12 |
14 |
16 |
8 |
16 |
CL05 |
M8 |
16 |
8 |
42 |
32 |
12 |
14 |
16 |
8 |
16 |
CL06 |
M8 |
16 |
8 |
42 |
32 |
12 |
14 |
16 |
8 |
16 |
CL07 |
M10 |
20 |
12 |
40 |
28 |
3 |
18 |
20 |
10 |
20 |
CL08 |
M10 |
20 |
12 |
49 |
37 |
4 |
18 |
20 |
8 |
28 |
Many types are available, special versions upon request!
For more information, please contact us!
