Help CenterGas Spring U-fork/yoke
US$ 0.198 - 0.428
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CL
Model Number:
CL
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5-20mm 10x10 Yellow Zinc Plated Clevis With M6 for Gas SpringUS$ 0.272 - 0.312MOQ: 2000 Pieces -
19-25mm 7T White Zinc Plated Clevis/yoke With M8 for Gas SpringUS$ 0.231 - 0.297MOQ: 5000 Pieces
-
12-37mm 20x20 and 8T Yellow Zinc Plated Clevis With M10 for Gas SpringUS$ 0.322 - 0.362MOQ: 1000 Pieces
-
8-32mm 16x16 and 8T White Zinc Plated Clevis With M8 for Gas SpringUS$ 0.395 - 0.461MOQ: 5000 Pieces
-
8-32mm 16x16 and 8T Yellow Zinc Plated Clevis /U-connector With M8 for Gas SpringUS$ 0.264 - 0.329MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
CL
Model Number
CL
Specifications
Clevis for Gas spring1.Inner thread M8
2.Bore eye Diam 8mm
3.Width between two eyes 8mm
4.gas spring clevis Effective lengt

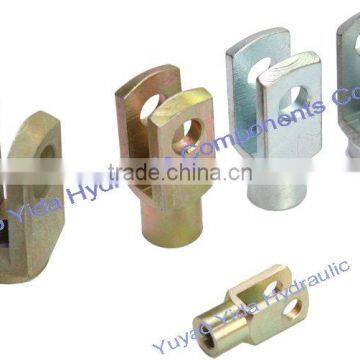

Clevis for Gas spring
- We have attained ISO9001 certification and also have been audited by the SGS Group.
- Material: Low carbon steel or Mild stell, Q235.
- Surface treatment: Nickel, white or yellow zinc or blue or black, chrome, copper plating, electroplate, etc
- A wide range of clevises in differents sizes, materials and finishes for easy installation of your gas spring or other industrial applications.

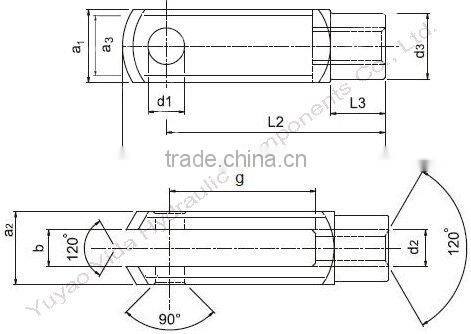

More photos & Drawing ABOUT Clevis for Gas spring:
Clevis, Fork heads, U-fork (dimension in mm) | ||||||||||
Type | M | a1 | d1 | L1 | L2 | L3 | d3 | a2 | b | g |
CL01 | M6 | 10 | 5 | 26 | 20 | 7 | 9.5 | 10 | 5.5 | 9 |
CL02 | M6 | 10 | 5 | 26 | 20 | 7 | 9.5 | 10 | 5.5 | 9 |
CL03 | M8 | 16 | 8 | 34 | 24 | 7 | 14 | 16 | 8 | 15 |
CL04 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL05 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL06 | M8 | 16 | 8 | 42 | 32 | 12 | 14 | 16 | 8 | 16 |
CL07 | M10 | 20 | 12 | 40 | 28 | 3 | 18 | 20 | 10 | 20 |
CL08 | M10 | 20 | 12 | 49 | 37 | 4 | 18 | 20 | 8 | 28 |
Clevis, Fork heads, U-fork(dimension in mm) | |||||
Type | M | a1 | d1 | L1 | L2 |
CL10 | M10 | 16 | 8 | 39 | 30 |
CL11 | M8 | 16 | 8 | 42 | 33 |
L3 | d3 | a2 | b | g | a3 |
6 | 15 | 16 | 8 | 20 | 12 |
6 | 14 | 16 | 8 | 13 | 12 |
Many types are available, special versions upon request!
For more information, please contact us!
