CE RoHS waterproof SMD 5730 3 chips LED injection module pcs high power 5730 LEDs
Product Name |
Waterproof LED injection module |
LED type |
SMD 5730 |
LED Qty |
3pcs |
Power Consumption |
1.44W |
Work Voltage |
DC12V |
Light Color |
Warm white/ Pure white/ Cold white |
Chain Qty |
20pcs modules a chain |
Luminous Flux |
120lm |
Ra |
>75 |

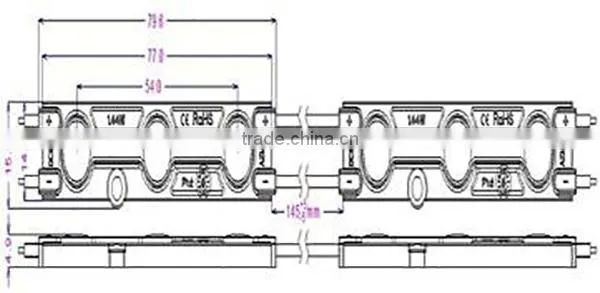

Size |
61mm*14.6mm*4.9mm |
Beam Angle |
120 degrees |
Waterproof Grade |
IP67 |
Work Temperature |
-40-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
4 years |
1). Constant Current Technology (CCT), 20pcs per series
2). The exposed Aluminum plate for heat dissipation
3). Injection molding process, Waterproof IP67
4). Bigger chip, 10% brighter than before
5). Energy saving, Environment friendly
6). Long life span
7). With optical lens, wide view angle 120 degrees
8). Suitable for 10~30cm depth channel letters and light boxes backlighting etc.
Channel letter lighting
Commercial standing lighting
Letter background lighting
Light box lighting
Logo lighting
Line/shape lighting
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 3-4 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
