Home > Lights & Lighting > LED Encapsulation Series > LED Module > CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty

CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty

Name: CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty
Brand: PACKEVER
SKU: 126858813
Availability: InStock

CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty thumbnail-1

CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty thumbnail-2

CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty photo-1

CE RoHS SMD 5050 Injection LED Module, 4 Years Warranty photo-2

US$ 0.6 - 0.62 MOQ: 40 Pieces

Key Specifications

Get Latest Price

Model Number:

IAPW225B

Emitting Color:

Other, Pure White

Luminous Flux(lm):

66lm

Contact Supplier Request Quote Chat Now

Shenzhen Packever Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number IAPW225B

Emitting Color Other, Pure White

Luminous Flux(lm) 66lm

Power Other, 0.72W

Color Rendering Index(Ra) 75

Color Temperature 6000-7000K

Operating Temperature(℃) -40, 60

Place of Origin Guangdong, China

Brand Name PACKEVER

Certification CE

Waterproof SMD 5050 injection LED module

Product Description

Product Name	Waterproof LED injection module
LED type	SMD 5050
LED Qty	3pcs
Power Consumption	0.72W
Work Voltage	DC12V
Light Color	Warm white/ Pure white/ Cold white
Chain Qty	40pcs modules a chain
Luminous Flux	66lm
Ra	>75

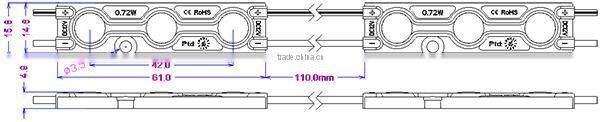

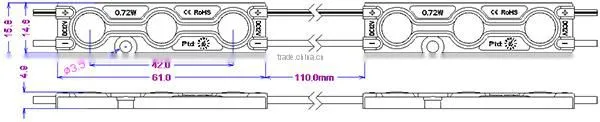

Size	61mm15.8mm4.9mm
Beam Angle	120 degrees
Waterproof Grade	IP67
Work Temperature	-40-+60°C
Life-span	50,000H
Certificate	CE&RoHS
Warranty	4 years

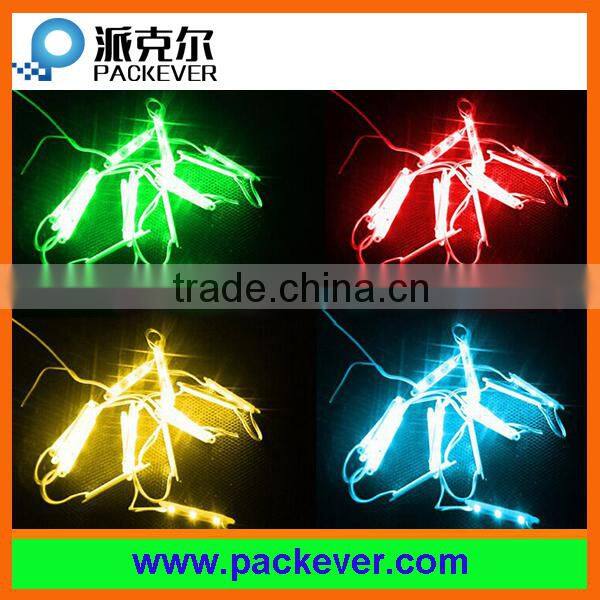

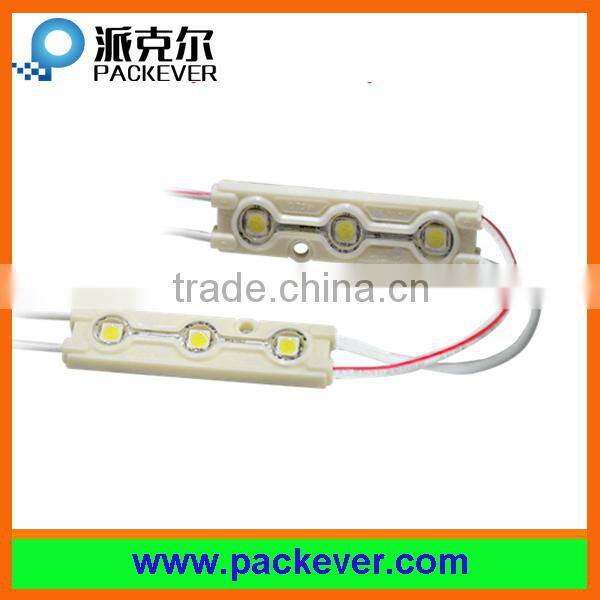

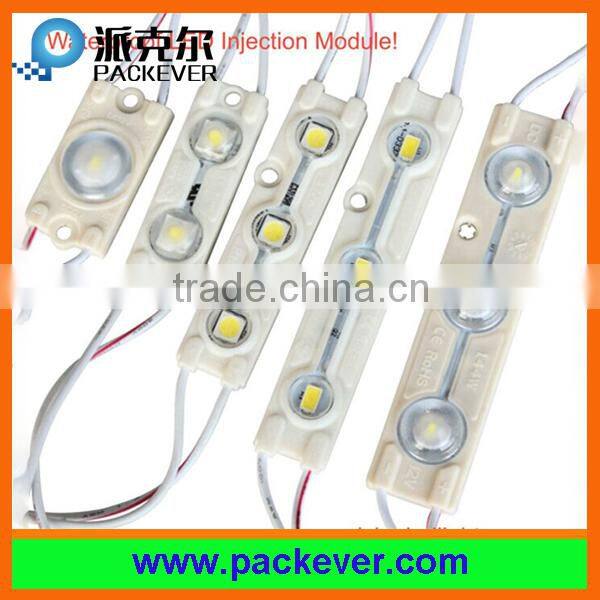

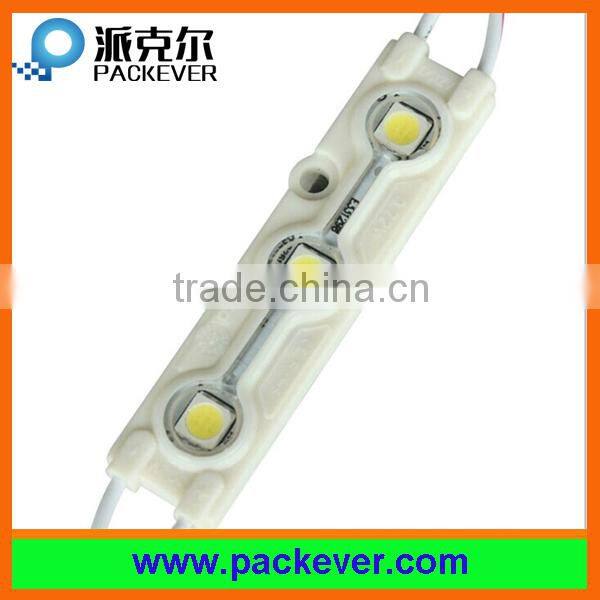

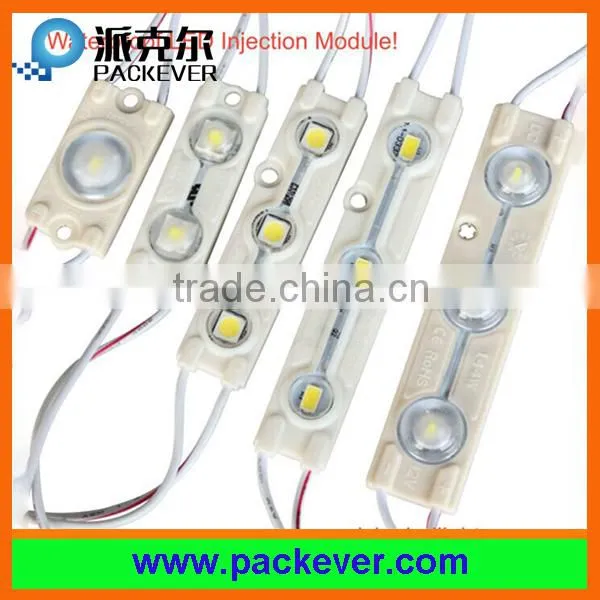

Product photos

Advantages

1). Constant Current Technology (CCT), 40pcs per series
2). The exposed Aluminum plate for heat dissipation

3). Injection molding process, Waterproof IP67

4). Bigger chip, 10% brighter than before

5). Energy saving, Environment friendly

6). Long life span

7). 98% transmittance lens, wide view angle 120 degrees

8). Suitable for 8~15cm depth channel letters and light boxes backlighting etc.

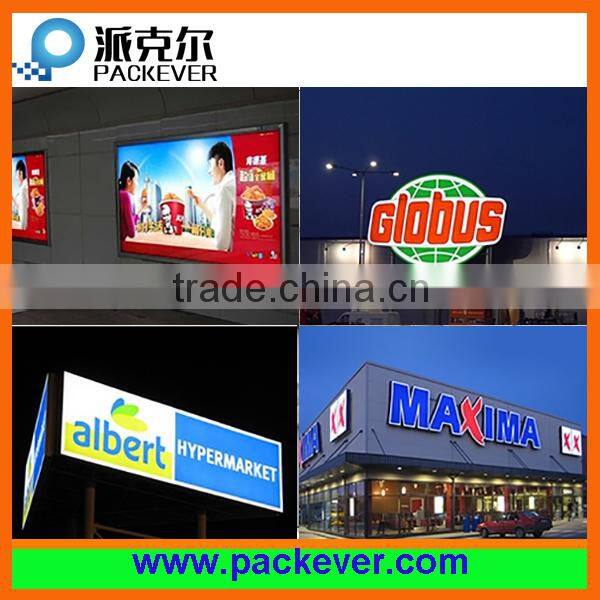

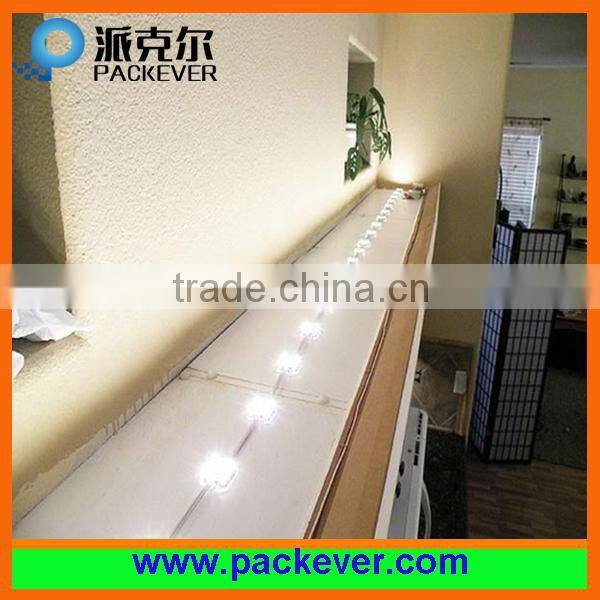

Applications

Channel letter lighting

Commercial standing lighting

Letter background lighting

Light box lighting

Logo lighting

Line/shape lighting

FAQ

How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.

How to pay:
TT, Western Union, Paypal, Moneygram

How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!

Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 3-4 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
