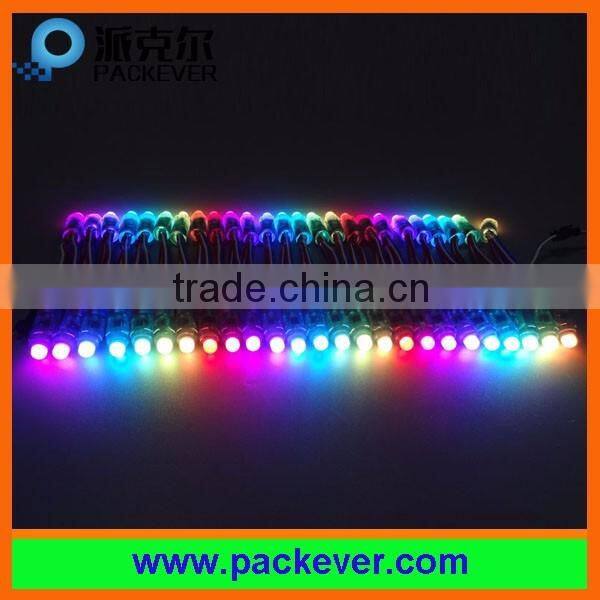

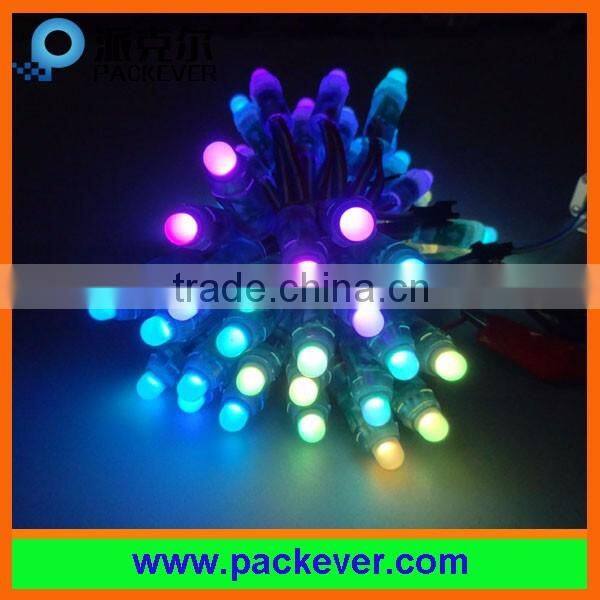

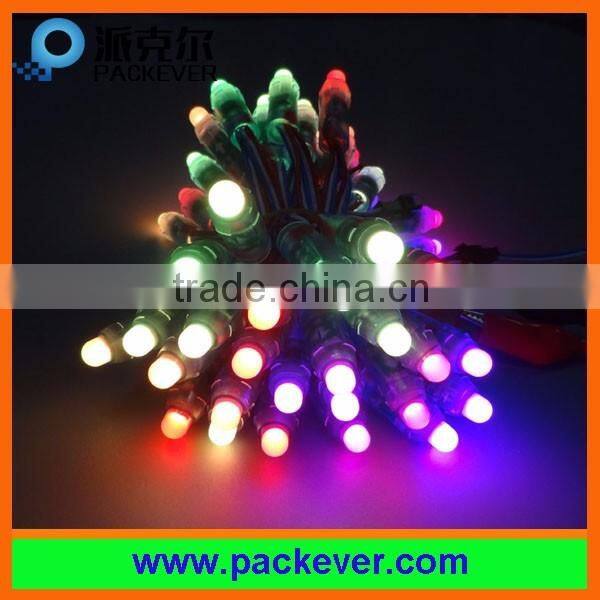

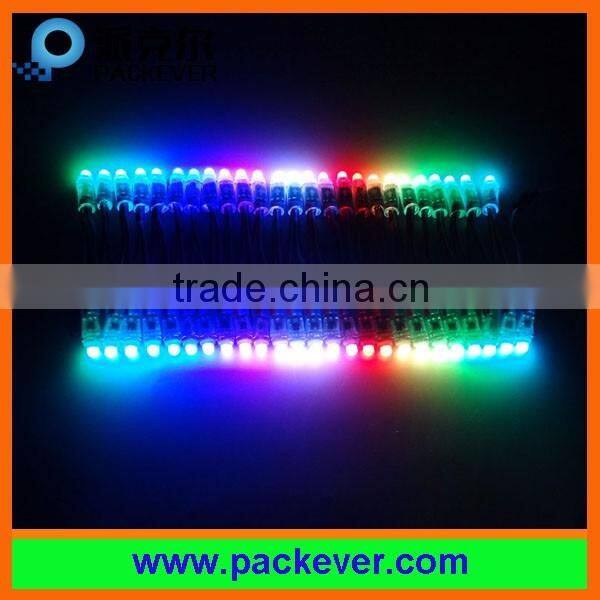

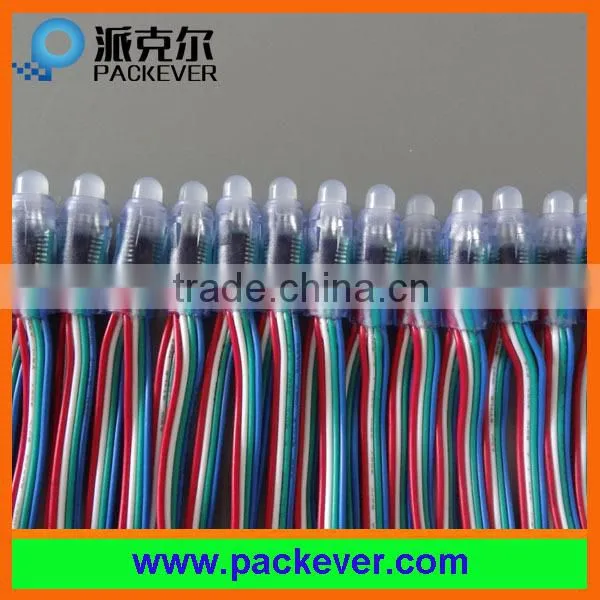

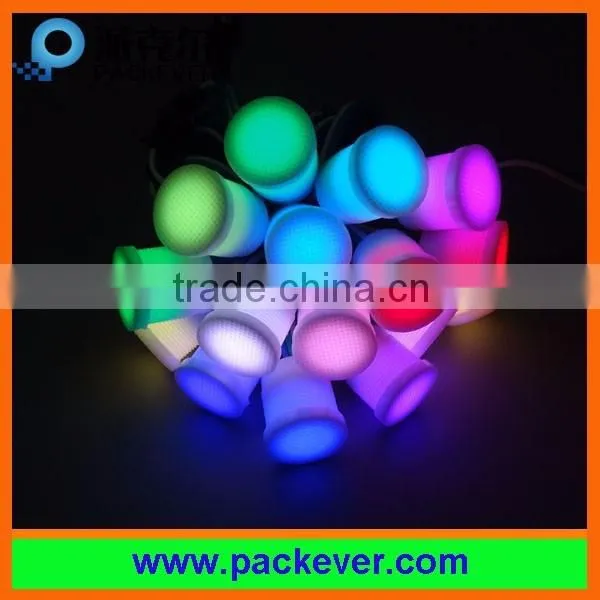

12mm 5V/12V waterproof rgb pixel led ic 16726 pixel string
- 10000 Piece / Pieces per Month
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
Product Details
Emitting Color: | Tri-Color(Red-Blue-Green) | Luminous Intensity: | 2000-2500MCD per LED | Luminous Flux(lm): | 6-7m per LED |
Optical Attenuation(%): | 3% | Power: | Other, 0.72w/pcs | Power Dissipation: | 0.3W |
Color Rendering Index(Ra): | 80% | Color Temperature: | RGB | Operating Temperature(℃): | -30, 60 |
Storage Temperature(℃): | -10, 40 | Place of Origin: | Guangdong, China | Brand Name: | PACKEVER |
Certification: | CE |
Product Description

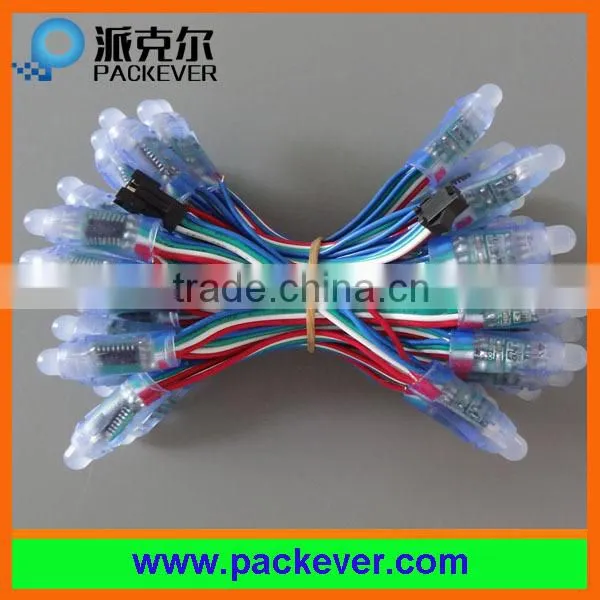

12mm 5V/12V waterproof rgb pixel led ic 16726 pixel string
Different IC availabe, one signal/two signal type! Different cable color/length availabe.
Product Name | 12mm 5V/12V waterproof rgb pixel led ic 16726 pixel string |
Function | address pixel/digital pixel/full color pixel/IC pixel |
Power Consumption | 0.3W/pcs for 5V, 072W for 12V |
Work Voltage | DC5V/DC12V |
IC Type | ws2811/UCS1903/ws2801/lpd6803/sm16726 |
LED Qty | 1pc |
PCB Color | Black/white/yellow |
Dimension | D12mm (installation hole size) |
Waterproof Grade | IP68 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
12mm 5V/12V waterproof rgb pixel led ic 16726 pixel string Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to make operate
3. Rainproof, outdoor use
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available Our pixel difference: 1. Not only DC5V, DC12V can be made!2. Not only 12mm size, 9mm available!
3. Not only round shape, square shape available!
4. Almost all type IC available!
5. No MOQ!

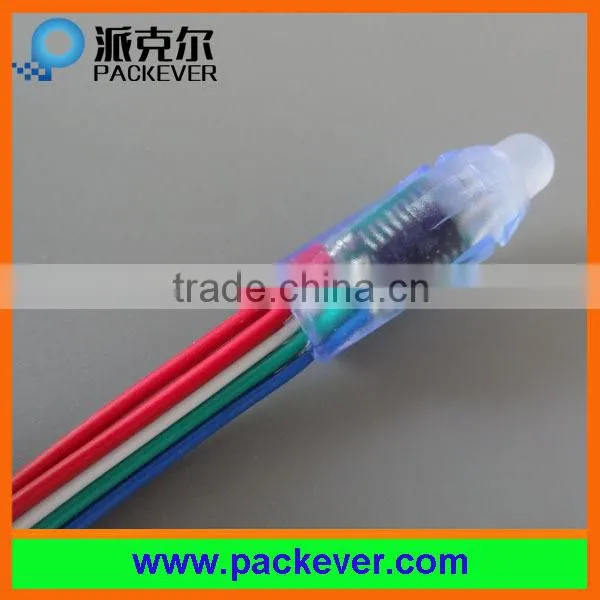

12mm 5V/12V waterproof rgb pixel led ic 16726 pixel string Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
CLK: connect to controller CLK (for 2 signal IC, like ws2801, lpd6803)
GND: connect to power supply GND & controller GND

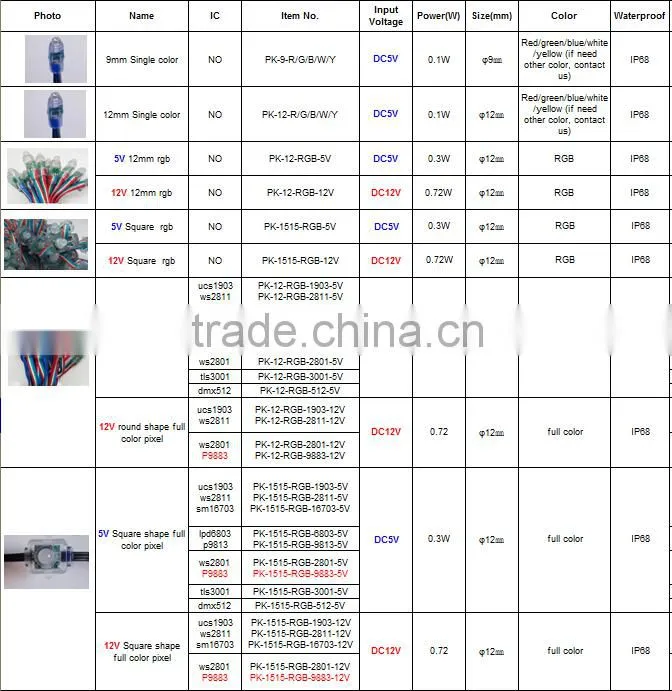

We have more than 50 different items, if need more information, email or call us now! Accept customized design!

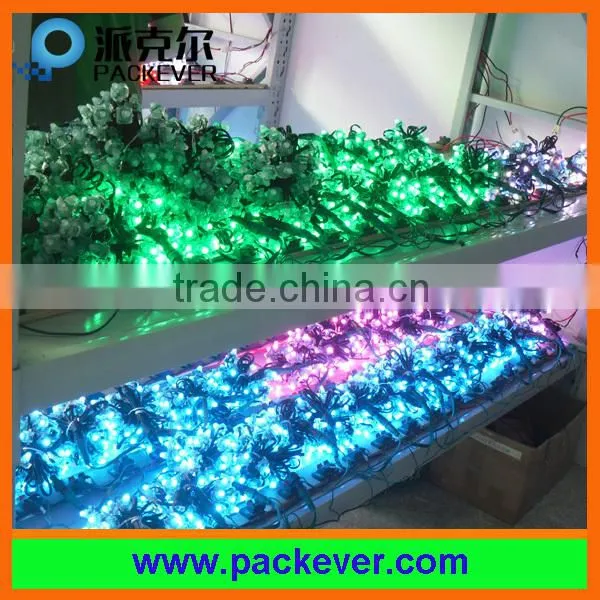

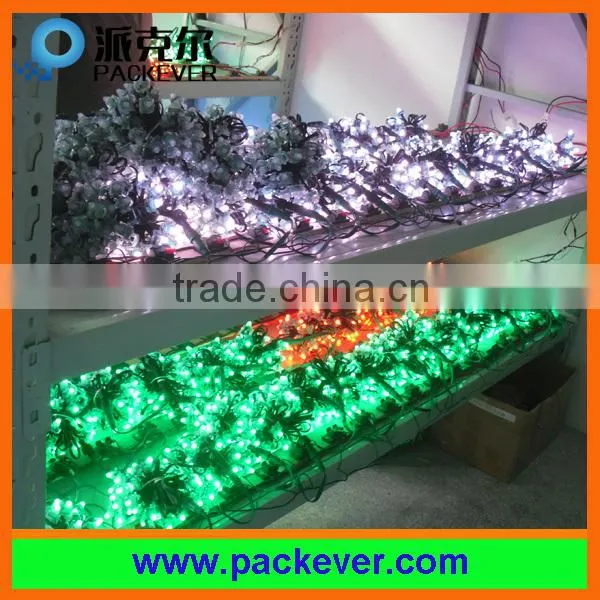

Burn-in test photos:

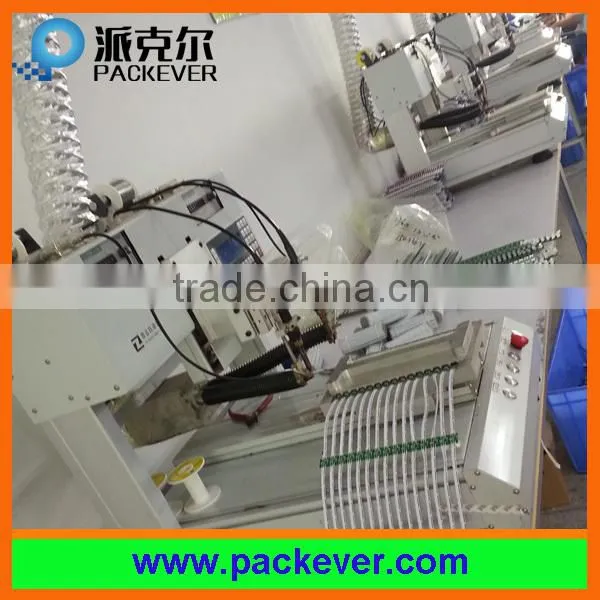

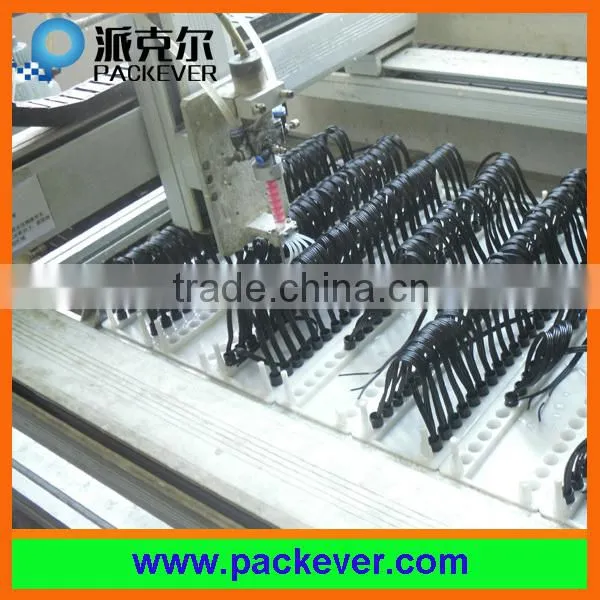

Automatic glue injection machines:
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
