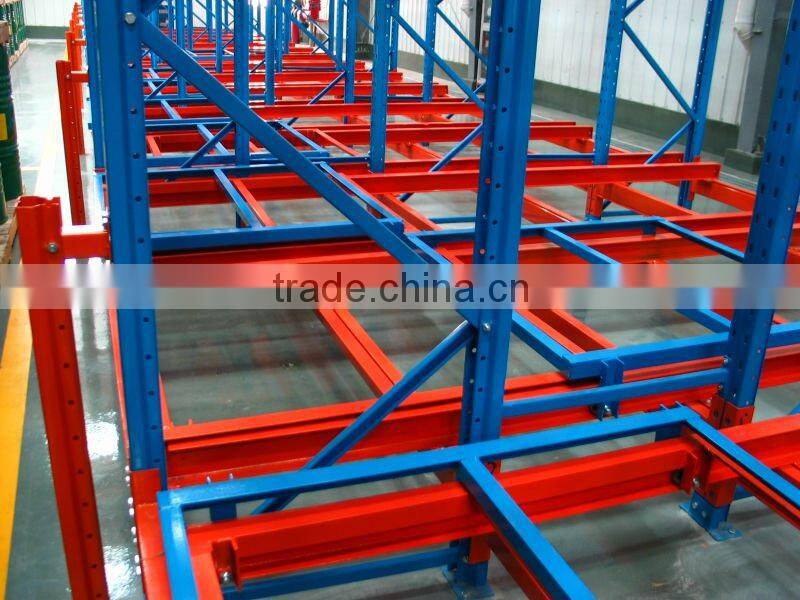

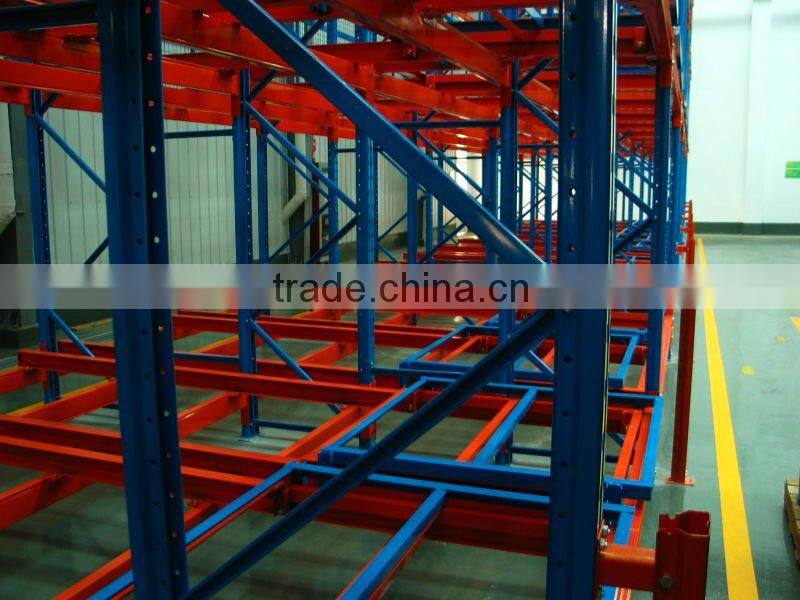

Best price and quality warehouse steel push back racking
Push-back racking systems are designed around the principle of organizing space by depth rather than width. This depth arrangement greatly reduces aisle space and increases storage density. In this configuration, each bay can be up to six pallets deep; each pallet stored on wheeled carts that fit onto rails. The rails are slightly angled toward the load/unload side of the rack in order to take advantage of gravity, saving enormous amounts of energy for moving heavy pallets. When a forklift sets the pallet onto the cart, it drives forward and causes the pallet to bump the next pallet, causing the entire row of pallets to roll backwards. When removing a pallet from the front position the remaining pallets immediately stage themselves forward so that the next available pallet can be accessed. Push back rack is a LIFO (last in, first out) storage system.
Specification
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1200(mm) | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70*1.8mm/2.0mm/2.3mm | ||
| Beam | 80*50&100*50&120*50&&140*50/1.5mm | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons/level | ||
| notes | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions |
|
||
Detail Feature
1.Frame and Beam Material:Q235b steel
2.Beam adjustment:The beam levels are adjustable by 75mm,76mm
3. Procedure:Moulding+ Acid cleaning/or Sand cleaning+ Phosphoration+ Degrease+ Dryness+ Powder coat+ Polymerization
4.Finishing:Powder coated or galvanised
5.racking color:many colors are available such as orange,blue and so on.
6.Safety standard:Products and designs are in compliance with the most stringent safety norm AS4084-1993 and FEM10.202.
Package
Why chossing us?
