Home > Transportation > Cargo & Storage > Storage Racks > China Made Heavy Duty Warehouse Storage Pallet Push Back Racking

China Made Heavy Duty Warehouse Storage Pallet Push Back Racking

Name: China Made Heavy Duty Warehouse Storage Pallet Push Back Racking
Brand: Everunion
SKU: 126853525
Availability: InStock

China Made Heavy Duty Warehouse Storage Pallet Push Back Racking thumbnail-1

China Made Heavy Duty Warehouse Storage Pallet Push Back Racking photo-1

US$ 900 - 1,000 MOQ: 10 Tons

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Everunion

Model Number:

PBR

Contact Supplier Request Quote Chat Now

Shanghai Everunion Logistics Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Everunion

Model Number PBR

Type Push-Back Pallet Rack

Material Other, Q235b steel

Feature Corrosion Protection

Use Warehouse Rack

Certification CE

Depth 1.8-2.5mm

Weight Capacity 4000kgs

Width 1.3-1.6m

Height 13m

Specifications

Warehouse Storage Pallet push back racking
1.Beautiful design
2.10 years experience
3.Competitive price
4.Quick delivery

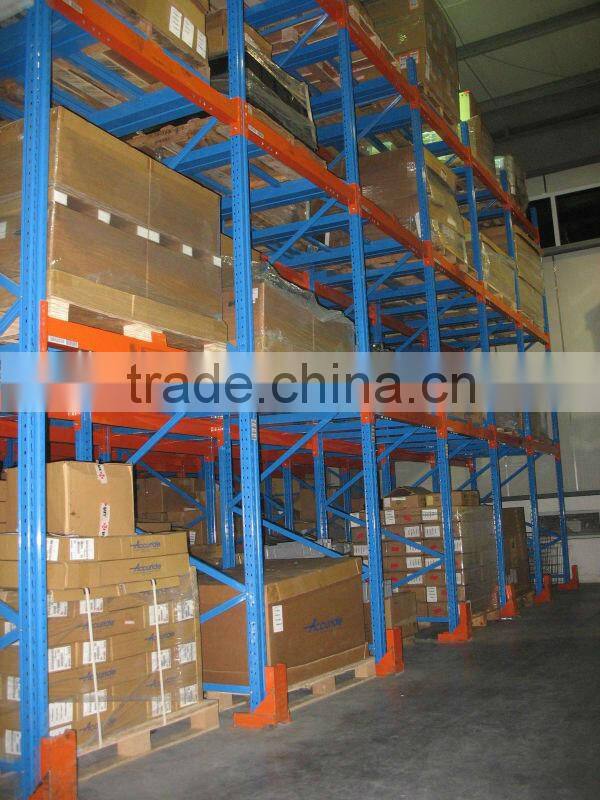

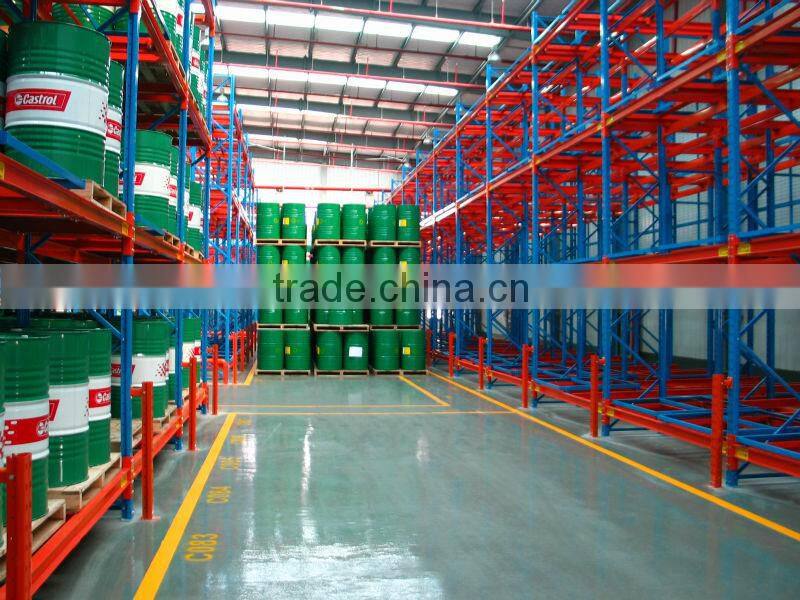

Push back rack is an accumulative storage system that allows you to store up to four pallets deep per level.
All of the pallets each level except the last, are placed on a set of trolleys that are pushed along the rolling rails. These rails are built on a slight incline, lower at the front, so that the pallets at the back move forward when the pallet closest to the aisle is removed.

1. Features	Pallets can be located, accessed and moved individually. Rapid handling of almost all types of palletised goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs
2. Load capacity & Dimension	Loading capacity: 500-4,000 kgs / beam level. Height: 1,000-13,000mm Depth: 400-1,500mm Length: 1,300-1,600mm Beam levers are adjustable in 75mm pitch interval Specail sizes also avaiable to specific storage needs
3. Main parts	Upright section: (thickness 2.0-3.0mm) 9070mm 10080mm 12095mm 14095mm Box beams section: (thickness 1.5-3.0mm) 8050mm 9050mm 10050mm 11050mm 12050mm 13050mm 14050mm 15050mm 160*50mm Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Meterail	High-quality steel Q235
5. Finish	High-quality Powder Coating Finish or Galvanized.
6. Quick delivery	8 days for 120GP 15days for 140HQ
7. Certified	CE certificate ISO9001:2008 ISO14001:2004
