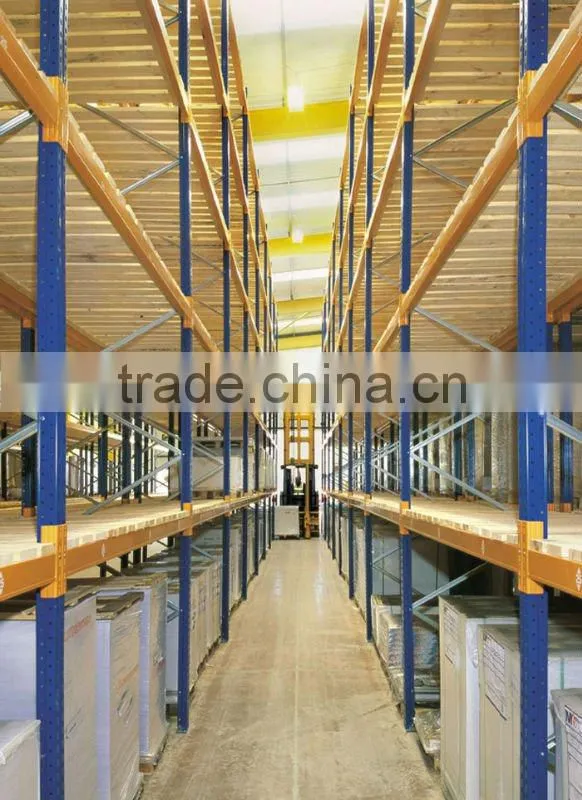

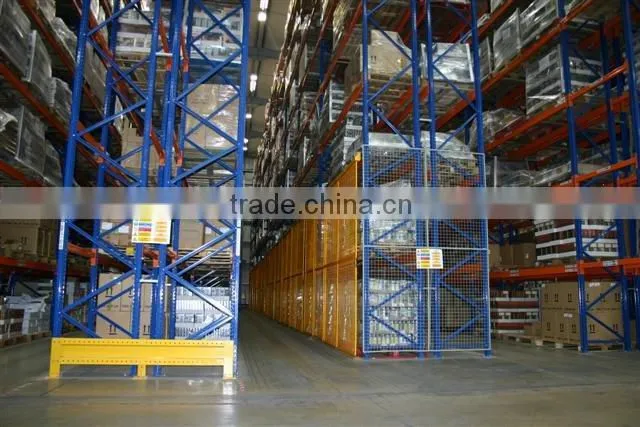

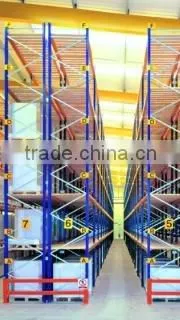

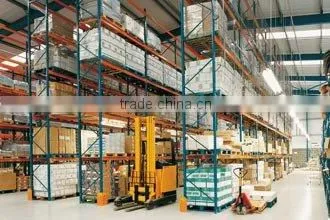

Heavy duty warehouse VNA very narrow aisle rack
1.VNA heavy duty rack:
1) This storage racking makes optimum use of floor area and roof height by providing high density storage
2) It still allows individual access to all pallets.
3) The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.
4) Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.
2.Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
3.Everunion - Specificationsof pallet rack
Frame |
Height (3-13m) |
Depth (800-1,200mm) |
Upright section: 90 x 70; 100 x 90; 120 x80mm | ||
Thickness: 1.8/2.0/2.3/2.5mm | ||
Beam |
Length (1200-3600mm) |
|
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50mm | ||
Thickness: 1.5mm | ||
Load capacity |
1-4Tons/Layer |
|
Others |
- MOQ. 20 sets - Pitch: 75 - Delivery time: 7-20days - Payment term. T/T (30% down payment) or L/C at sight - Necessary accessories: for free(bracing, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated - Production capacity: 3000T/month - Main market: more than 40countries, such as Australia, Europe, Asia, Central America, South America, North Africa and etc. - Available in various colors/specifications/sizes |
|
