Drive in pallet rack drive in warehouse rack
Drive in warehouse pallet rack:
1."First in last out " storage style .
2.Forklift can drive through the aisle to pick and load pallets.
3.It can improve the storage sufficiency .
4.Guide rail should be installed on each level .
5.High storage sufficiency .
6.Slow picking but low cost.
7.Suitable for items with large quantity .
1.Drive in rack is designed for the storage of homogenous products.
2. It accommodates a large number of pallets for each SKU(stock keeping unit).
3.This system makes better use of the floor area and height space than any other.

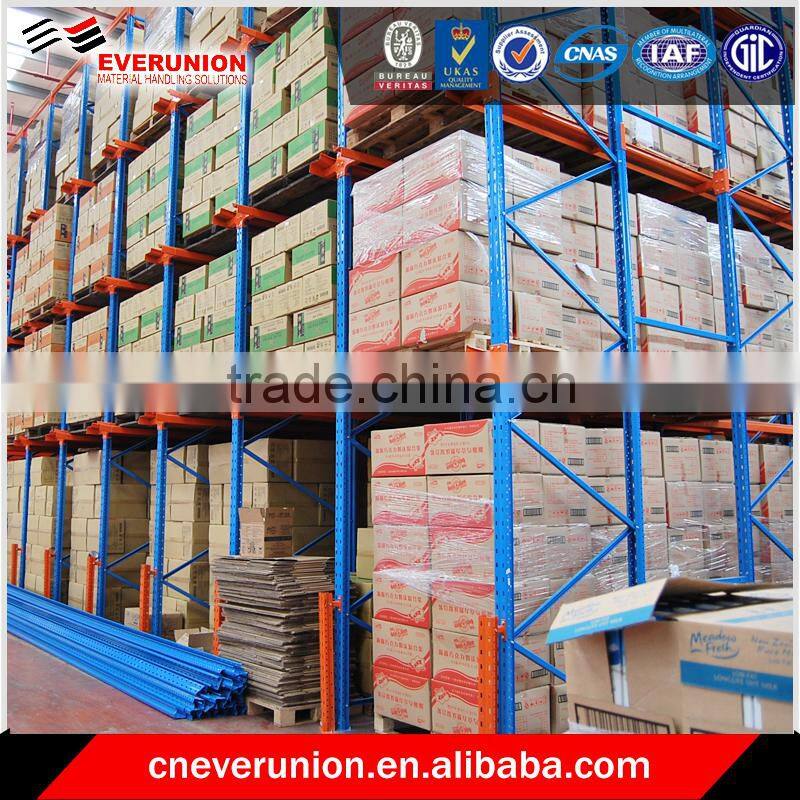

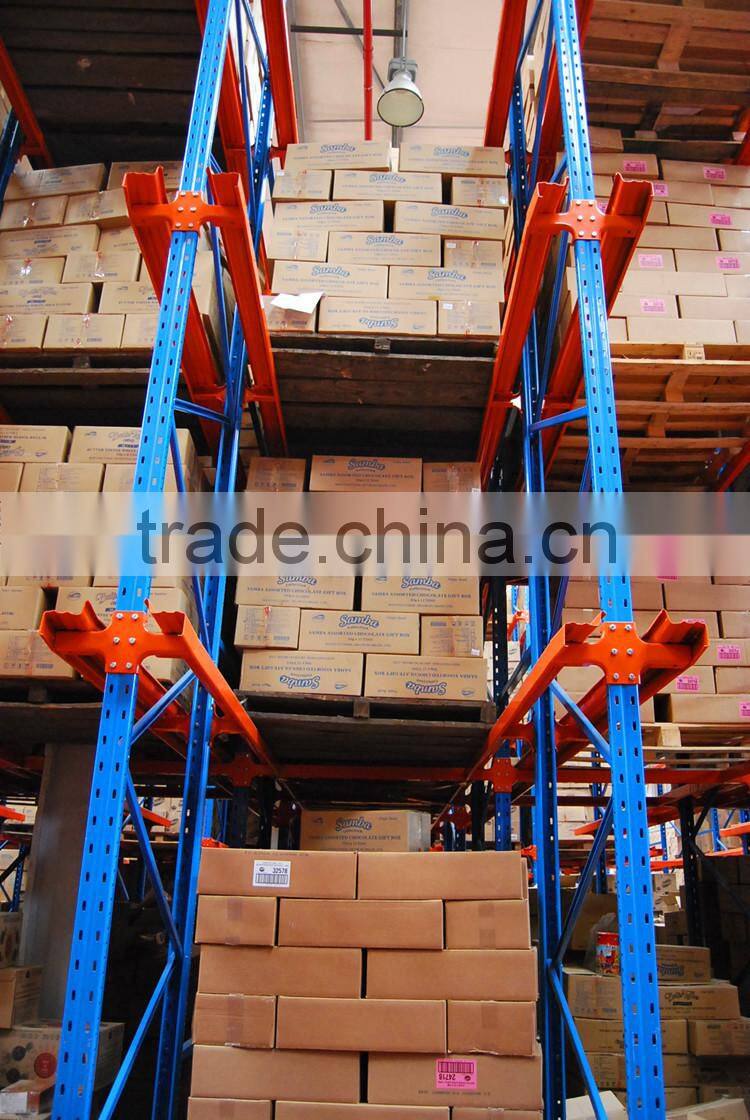

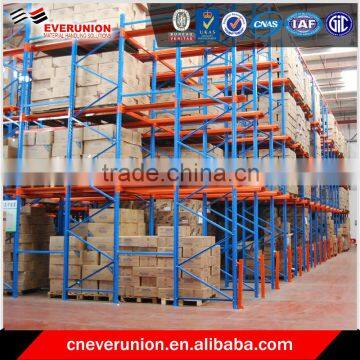

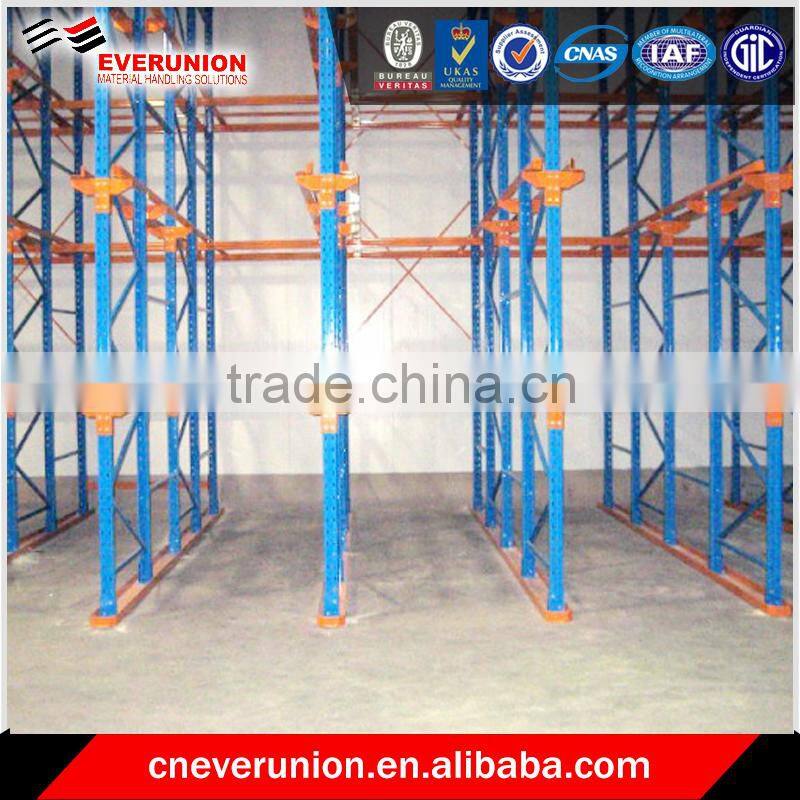

DIR is suitable for volume cargo with few categories, it consists of a continuous block of frames ,undivided by aisles.Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets, can realize first in last out arrangement, maximize utility rate of warehouse space.This design does not require cross beams which would block entry.Instead the pallets are put on the continuous rails which are supported by corbels on each level.Top and back link bars are configured.
Frame |
Height (3-13m) |
Depth (800-1,200mm) |
Upright section: 90 x 70; 100 x 80; 120 x95mm | ||
Thickness: 1.8/2.0/2.3/2.5mm | ||
Guide rail |
Length (1500-9000mm) /2-7pallets deep |
|
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50mm | ||
Thickness: 2.0mm/2.3mm/2.5mm | ||
Load capacity |
1-4Tons/Layer |
|
Others |
-MOQ. 3 tons -Pitch: 75 or 76mm -Delivery time: 7-20days -Payment term. T/T (30% down payment) or L/C at sight -Necessary accessories: for free(bracing, base plate, etc) -Packing: stretch film & carton - Surface treatment: powder coated -Production capacity: 3000T/month -Main market: more than 60countries, such as Australia, Europe, Asia, Central America, South America, North Africa and etc. -Available in various colors/specifications/sizes |
|
Two way corbel & top crossing:
Company Name |
Shanghai Everunion Logistics Equipment Co.,Ltd |
Location |
Factory is in Kunshan city,convenient transport |
Main products |
Standard pallet racking and other type racks |
Main markets |
Australasia,Europe,Asia,Central America,South America,North Africa ...(more than 40 Countries) |
Annual sales amount |
25 millions US dollar |
Quality |
ISO9001:2008 |
Safety standard |
AS4084 and FEM 10.202 |
Company Concept |
Personality is Product,Standard is Quality |

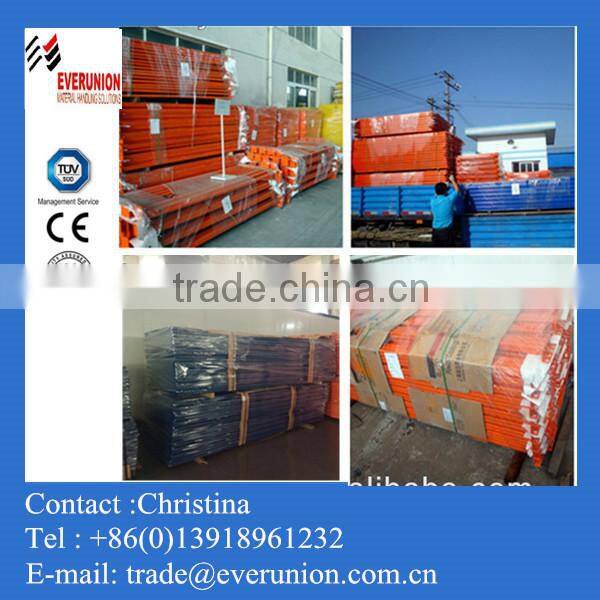

Experienced export packing:
(1)both uprights and beams end with cardboard ,then outside bundled tightly with plastic belts.
(2)paper cartons for accessories.
(3)according to your requirements.
Quotation requirements:
kindly inform us the info as below
- Drawing (if available) of rack. or CAD design service
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many pallets in one deep you would like
- How many levels you would like
