Multier metal steel drive rack

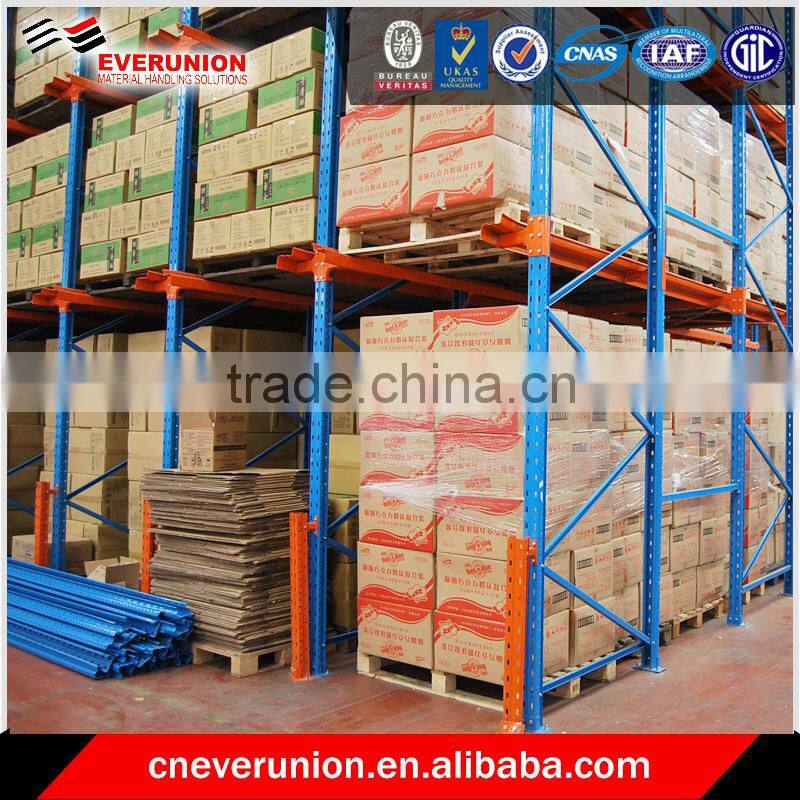

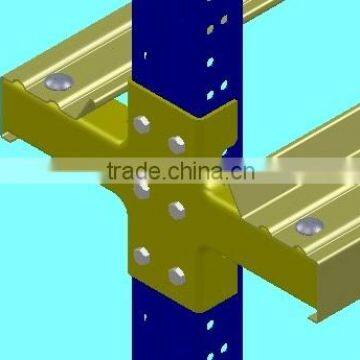

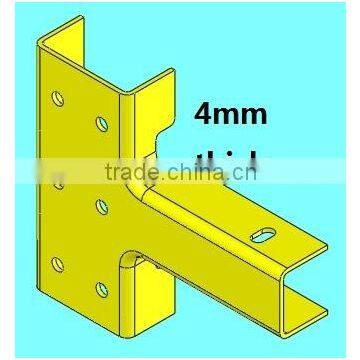

DIR is suitable for volume cargo with few categories, it consists of a continuous block of frames ,undivided by aisles.Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets, can realize first in last out arrangement, maximize utility rate of warehouse space.This design does not require cross beams which would block entry.Instead the pallets are put on the continuous rails which are supported by cor-bels on each level.Top and back link bars are configured.
1.Upright: 3m-11m / 90 x 70, 100 x 90 & 120 x 95mm.
2.Thickness of upright: 1.8mm, 2.0mm, 2.3mm, 2.5mm
3.Material:Q235B

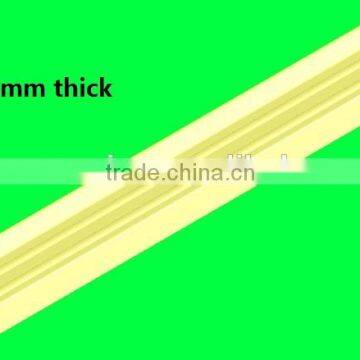

4.Guide beam: 80 x 50 x 1.5mm
5.good pre-sales and after-sale service
6.Depth: 800 to 2,400mm
7.Loading capacity of each level: 1,000 to 4,000kg
8.Strict QC department has been settled
9.This design does not require cross beams .
10.Pallets are put on the continuous rails .
Experienced export packing:
(1)both uprights and beams end with cardboard ,then outside bundled tightly with plastic belts.
(2)paper cartons for accessories.
(3)according to your requirements.
