Help CenterDouble Deep Racking for Warehouse
US$ 950 - 1,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Everunion
Model Number:
DDPR-01
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blue and Orange Double Deep Pallet RackingUS$ 950 - 1,000MOQ: 10 Tons -
Blue and Orange Double Deep Pallet RackingUS$ 950 - 1,000MOQ: 1 Unit
-
Steel Box Beam Double Deep Pallet Racking for WarehouseUS$ 0.5 - 0.9MOQ: 3000 Kilograms
-
2016 Years Cheap Q235b Steel Pallet Racking SystemsUS$ 0.7 - 1MOQ: 3 Kilograms
-
Q235b Steel Material Double Deep Pallet Racking SystemUS$ 0.9 - 1.01MOQ: 10 Tons
Place of Origin
Shanghai, China
Brand Name
Everunion
Model Number
DDPR-01
Type
Other, double-deep pallet rack
Material
Other, Q235 b
Feature
Other, warehouse storage
Use
Warehouse Rack
Certification
CE
Depth
1.8-2.5mm
Weight Capacity
1-3tons/level
Width
1200/1900/2300/2700/3300/3600(mm)
Height
2-11m
Specifications
1.Store two pallets or four pallets deep in double entry rack2.high utilization of floor space.
3.Need a special reach truck

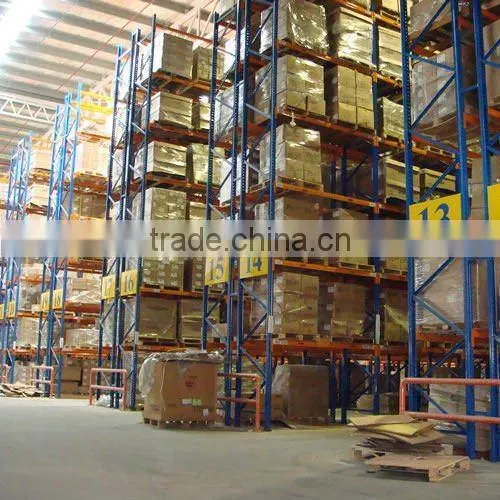

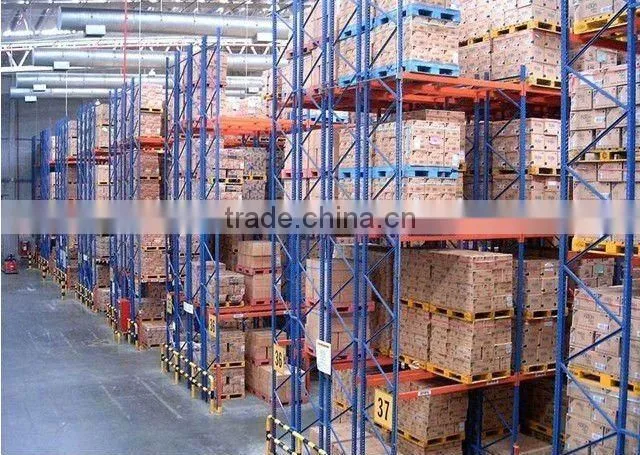

Facts about double deep pallet racking :
1.double-deep pallet racking can store two pallets deep or four pallets deep in double entry rack .
2.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachment.
3.It offers an increase of storage density,ideal for storing homegeneous products
| loading sheet for box beam | |||||||||||
| CE | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| B74*45*1.5 | load(KG) | 2300 | 1800 | 1600 | 1400 | 1200 | 1000 | 700 | |||
| B88*45*1.5 | 2600 | 2300 | 2000 | 1800 | 1500 | 1200 | 1000 | 700 | |||
| B106*45*1.5 | 3500 | 2800 | 2500 | 2300 | 2100 | 1800 | 1400 | 1200 | 800 | ||
| B120*45*1.5 | 3800 | 3500 | 3300 | 3000 | 2600 | 2200 | 1800 | 1600 | 1400 | 1000 | |
| B140*45*1.5 | 4000 | 3800 | 3600 | 3400 | 3100 | 2800 | 2400 | 2200 | 2000 | 1600 | |
| B80*50*1.5 | 2500 | 2200 | 1800 | 1600 | 1300 | 1100 | 800 | ||||
| B100*50*1.5 | 3500 | 3200 | 2600 | 2300 | 2000 | 1700 | 1500 | 1200 | 900 | ||
| B120*50*1.5 | 4000 | 3600 | 3400 | 3200 | 2600 | 2300 | 2100 | 1700 | 1600 | 1200 | |
| B140*50*1.5 | 4000 | 4000 | 3800 | 3600 | 3300 | 3000 | 2800 | 2500 | 2100 | 1400 | |
| EVERUNION——ISO9001 Selective pallet rack (Powder coating) | |||
| UPRIGHT Frame | BOX BEAM | ||
| Upright Height(mm) | 3,000-11,000 | Beam Length(mm) | 1,350-3,600 |
| Upright section Size(mm) | 90*70; 100*70mm | Beam section Size(mm) | 80*50;100*50;120*50;140*50 |
| Thickness (mm) | 1.8, 2.0, 2.3, 2.5 | Thickness(mm) | 1.5 |
| Depth of frame(mm) | 1600-4,800 | Load capacity(kg/layer) | 1,000-4,000 |
| Raw material | Q235b or SS400 | ||
| load capacity | 1000kgs -4000kgs U.D.L/pair beams,within 18T for frame | ||
| Delivery time | 7 days for one 40'container,14 days for 2*40' container | ||
| Payment terms | T/T(30% advance payment,70% payment against fax copy B/L)Sight L/C | ||
| Adjustable | Beam levels are adjustable by 75mm or 76mm , Dexion compatitable | ||
| Package | steel strap ,plastic film, suitable for truck operation and ocean shipping . | ||
| Warranty | 24 months warranty from the date of delivery to the carrier. | ||
| Customized | Various capacities, sizes & colors are available.OEM are welcome | ||
