Q235b steel material double deep pallet racking system

Q235b metal material double deep pallet racking system

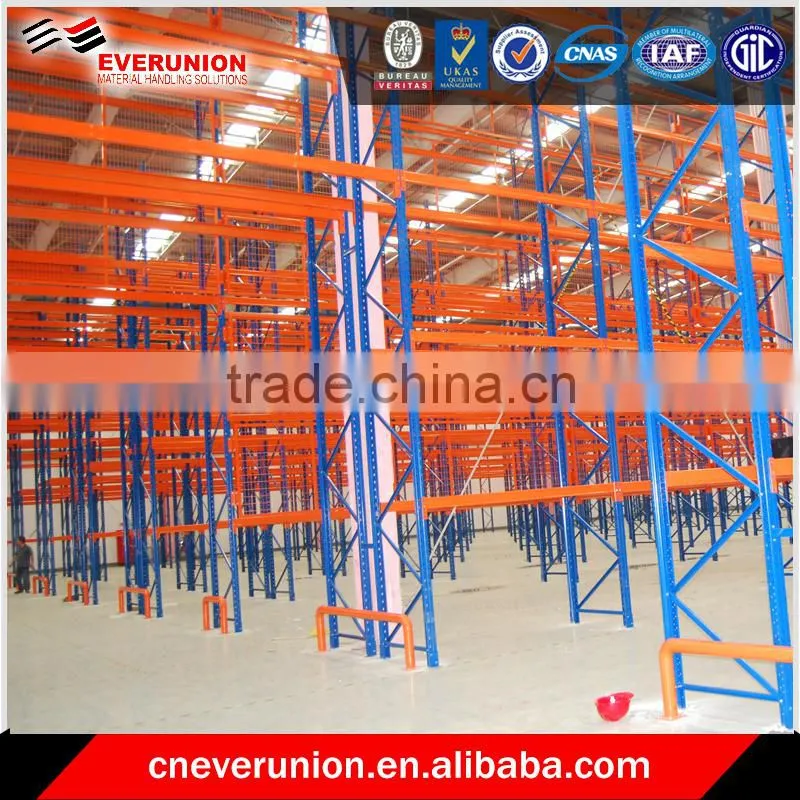

Double deep pallet racking system is constructed to store two pallets deep,or four pallets deep in a double entry rack.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachments.

1.specifications of double deep racks: specification of double deep pallet rack

length 1000-3900mm depth 1200-4000mm height 2000-13000(mm)

Upright 90*70& 100*80& 120*95mm

thickness:1.8, 2.0, 2.3, 2.5mm

Beam 80*50& 100*50& 120*50 & 140*50mm

thickness:1.5mm thickness 1.8mm-2.5mm

capacity/layer 1-4tons/layer

remarks 1. All racking shall be fixed onto the ground by means of Expansion bolts

2. Each beam is secured by 2 safety pins

3. There are link bars between two back-to-back rack rows.

4. Protector is recommended to mount in the junction of over two directions
