Double Deep Pallet Racking

Name: Double Deep Pallet Racking
Brand: Everunion
SKU: 126846543
Availability: InStock

Shanghai Everunion Logistics Equipment Co., Ltd.

US$ 11 - 12 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Everunion

Model Number:

DDPR-01

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Everunion

Model Number DDPR-01

Type Other, double-deep pallet rack

Material Other, Q235 b

Feature Other, warehouse storage

Use Warehouse Rack

Certification CE

Depth 1.8-2.5mm

Weight Capacity 1-3tons/level

Width 1200/1900/2300/2700/3300/3600(mm)

Height 2-11m

Specifications

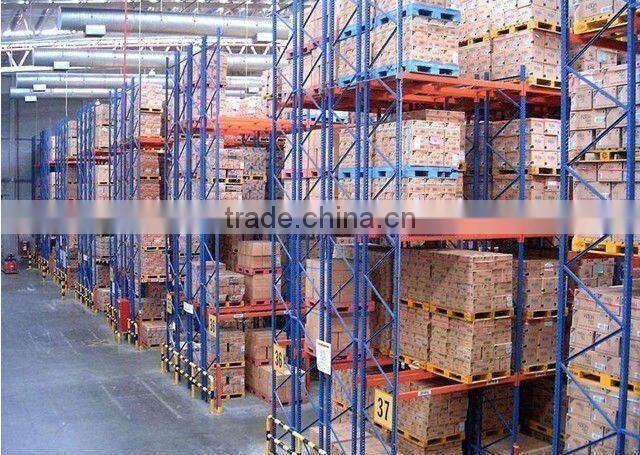

1.Store two pallets or four pallets deep in double entry rack
2.high utilization of floor space.
3.Need a special reach truck

Facts about double deep pallet racking :

1.double-deep pallet racking can store two pallets deep or four pallets deep in double entry rack .

2.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachment.

3.It offers an increase of storage density,ideal for storing homegeneous products

EVERUNION——ISO9001 Selective pallet rack (Powder coating)

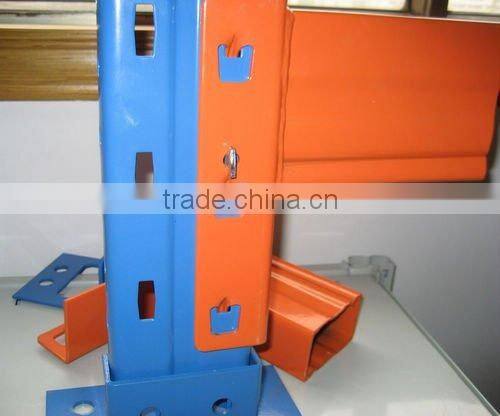

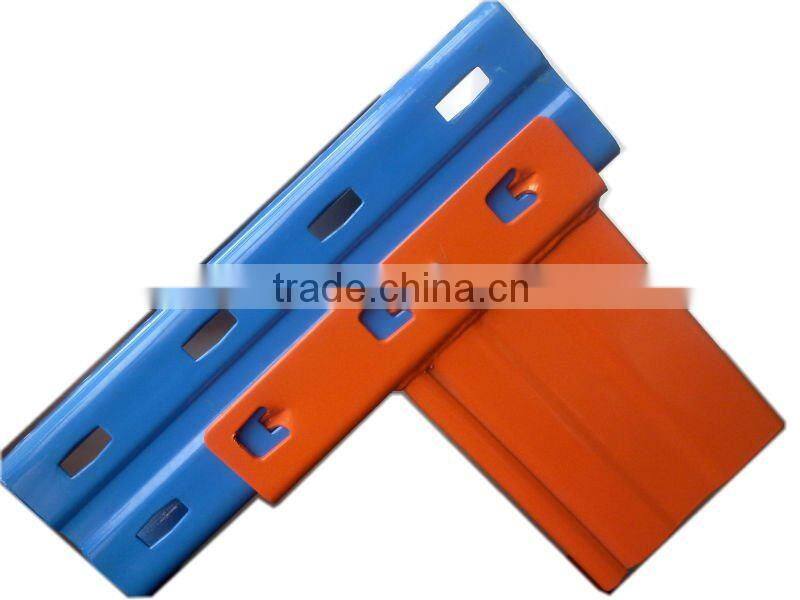

UPRIGHT Frame		BOX BEAM
Upright Height(mm)	3,000-11,000	Beam Length(mm)	1,350-3,600
Upright section Size(mm)	9070; 10070mm	Beam section Size(mm)	8050;10050;12050;14050
Thickness (mm)	1.8, 2.0, 2.3, 2.5	Thickness(mm)	1.5
Depth of frame(mm)	1600-4,800	Load capacity(kg/layer)	1,000-4,000
Raw material	Q235b or SS400
load capacity	1000kgs -4000kgs U.D.L/pair beams,within 18T for frame
Delivery time	7 days for one 40'container,14 days for 2*40' container
Payment terms	T/T(30% advance payment,70% payment against fax copy B/L)Sight L/C
Adjustable	Beam levels are adjustable by 75mm or 76mm , Dexion compatitable
Package	steel strap ,plastic film, suitable for truck operation and ocean shipping .
Warranty	24 months warranty from the date of delivery to the carrier.
Customized	Various capacities, sizes & colors are available.OEM are welcome
