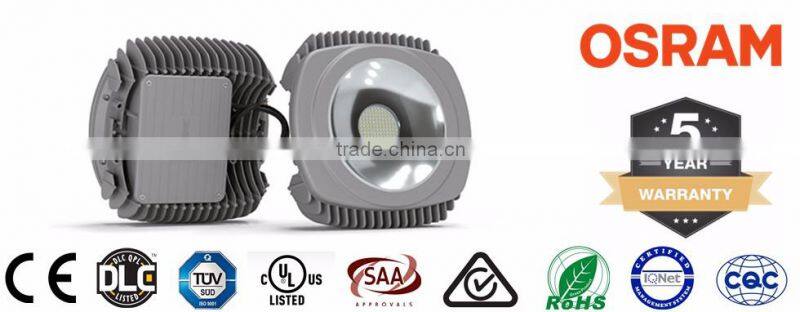

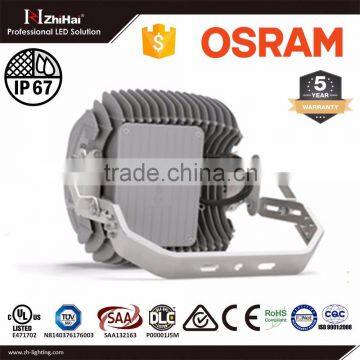

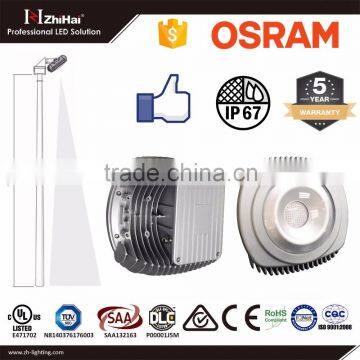

IP67 outdoor Waterproof high lumen Osram chips 60 watt led street light

Name: IP67 outdoor Waterproof high lumen Osram chips 60 watt led street light
Brand: Zhihai
Availability: InStock
Rating: 4.7 (24 reviews)

FOB Price

USD $10 - $500 / Unit

2 Units(Min.Order)

Supply Ability 7000 Piece / Pieces per Month
Port TianJin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

LED Light Source:	Osram	Input Voltage(V):	80~315 Vac	Lamp Power(W):	400
Lamp Luminous Flux(lm):	48000	Lamp Luminous Efficiency(lm/w):	120	Color Temperature(CCT):	Cool White
Working Temperature(℃):	-40, 60	Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum Alloy
IP Rating:	IP67	Certification:	C-tick, CCC, CE, EMC, LVD, SAA, UL	Place of Origin:	Shaanxi, China
Brand Name:	Zhihai	Model Number:	ZHGL-120A

Product Description

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product Description

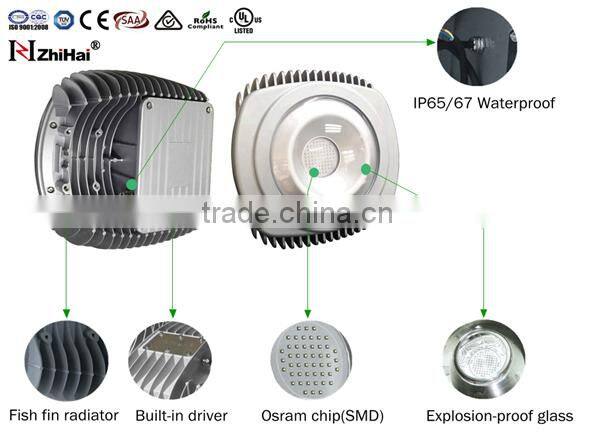

Features & Characteristic:
*Patent multi- function design, suitable for all projects
*5-5-10 year warranty
*Top performance LED chips, 120 lm/w system efficacy
*80% lumen maintenance over 50,000hours
*0-10Vdc dimming driver available
*Photocell and motion sensor system available
*Built-in surge protection
*Built-in thermal protection
*Maintenance free
*Mercury free, No UV or IR
*Universal 80-347Vac input without additional adapter
*Instant start and flicker free
*High uniformity and color rendering

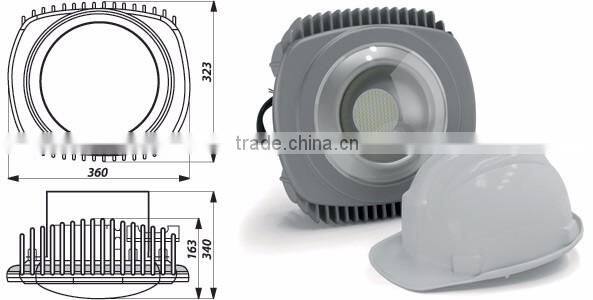

Dimensions:

Description:

Model		ZHGL-30A	ZHGL-60A	ZHGL-90A	ZHGL-120A	ZHGL-150A	ZHGL-180A	ZHGL-210A	ZHGL-270A
Power Consumption	LEDs	25W	50W	80W	108W	135W	162W	189W	243W
	Driver	5W	10W	10W	12W	15W	18W	21W	27W
	Total	30W	60W	90W	120W	150W	180W	210W	270W
Initial Lumen Lamp(6000K)		3600 lm	7200 lm	10800 lm	14400 lm	18000 lm	21600 lm	25200 lm	32400 lm
Replace HID Lamp		50-100W	100-150W	150-250W	250-300W	300-400W	400-500W	500-600W	600-1000W
Dimension		360x323x163mm
Net Weight		8kg (17.6lbs)
Color Temperature		4000K - 6000K
Color Rendering		≥Ra75
Working Life		≥50000Hrs
Housiong Material		Aluminum
Coating		Zinc Rich Paint
IP Class		IP 65 (Upgradeable to IP 67)
Insulation Class		Class I (Upgradeable to Class II)
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80 ~ 315Vac, (347Vac available on request)
DC Input		80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

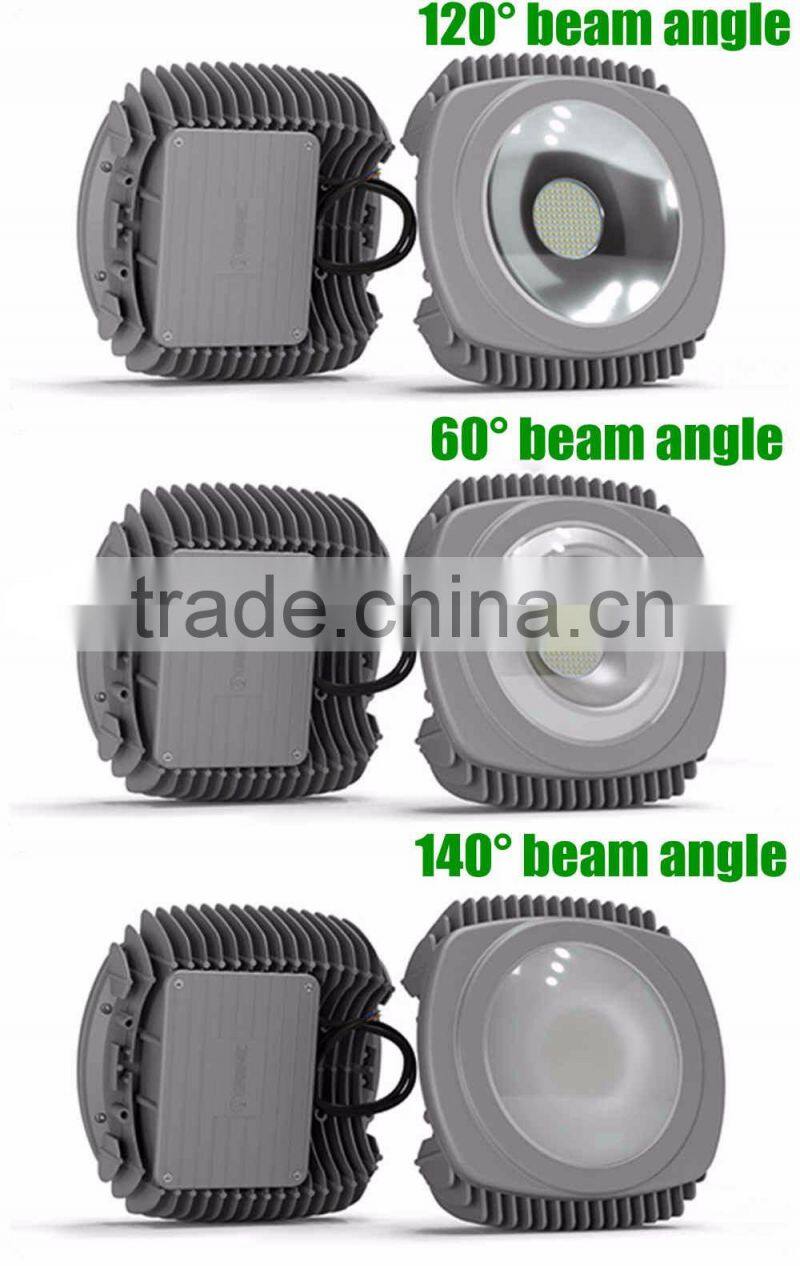

Beam Angle Options:

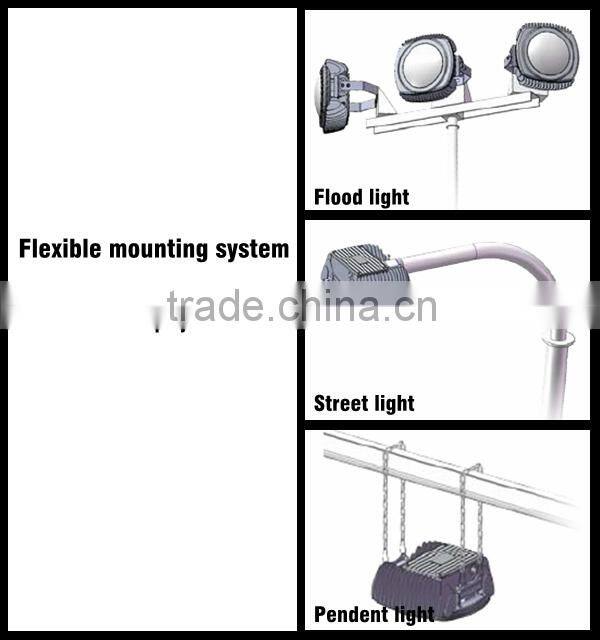

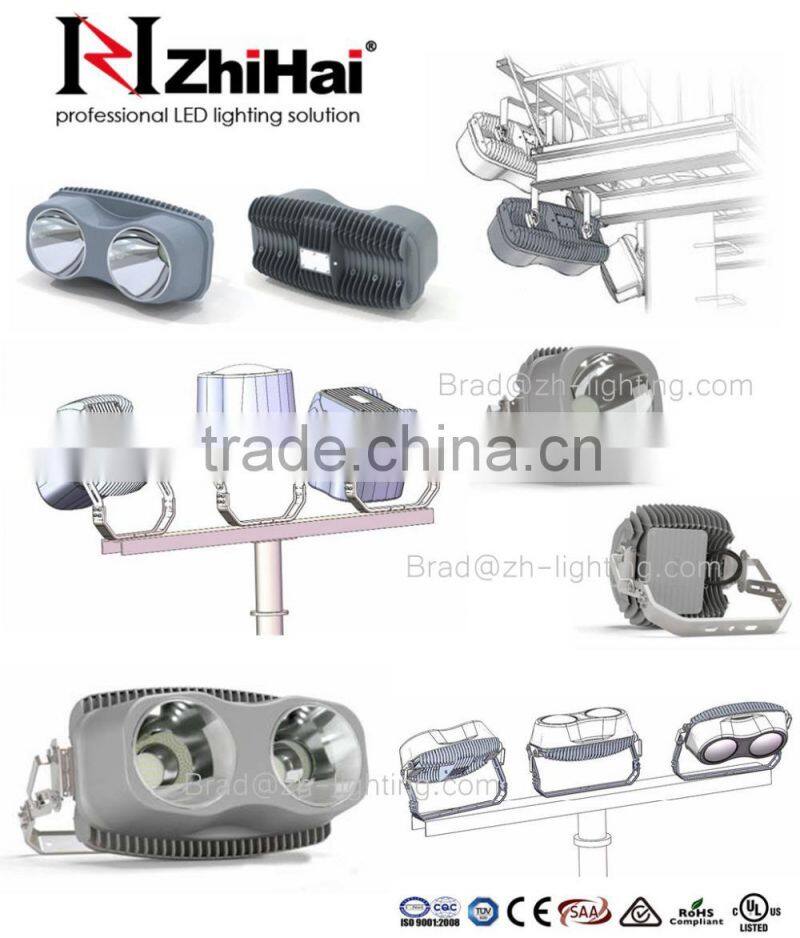

Flexible Multi-function Design Mounting Brackets:

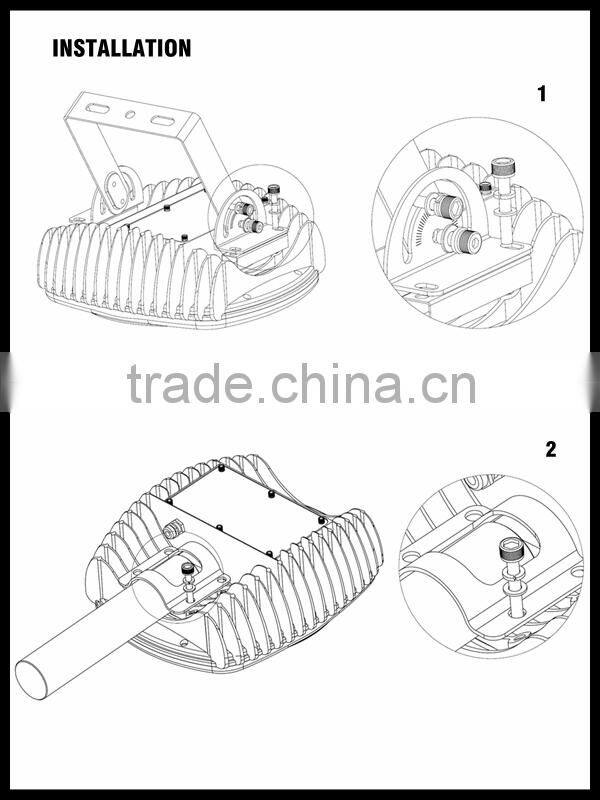

Installation:

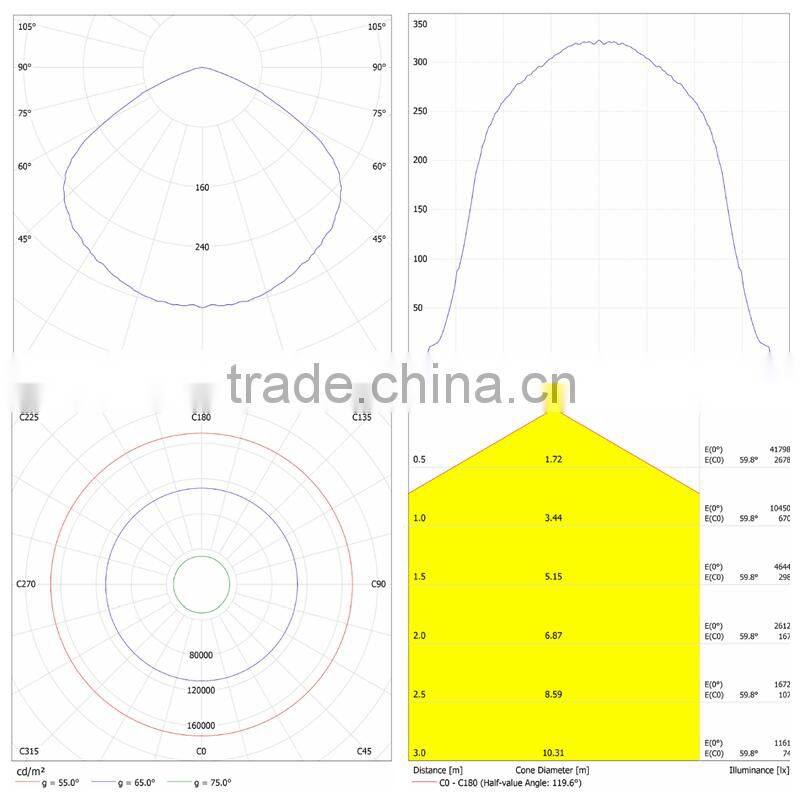

Beam Spread:

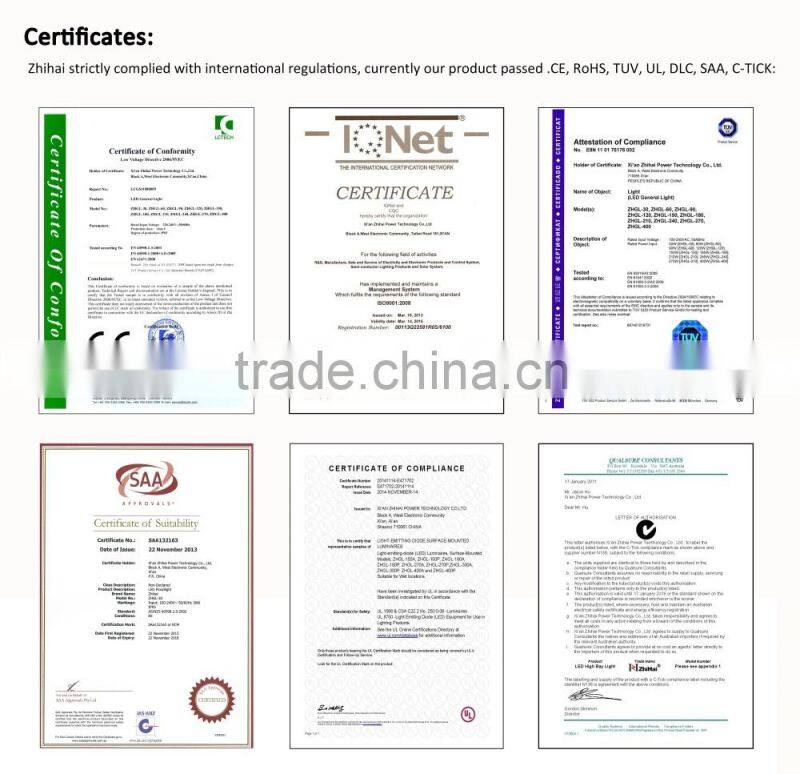

Certificates:

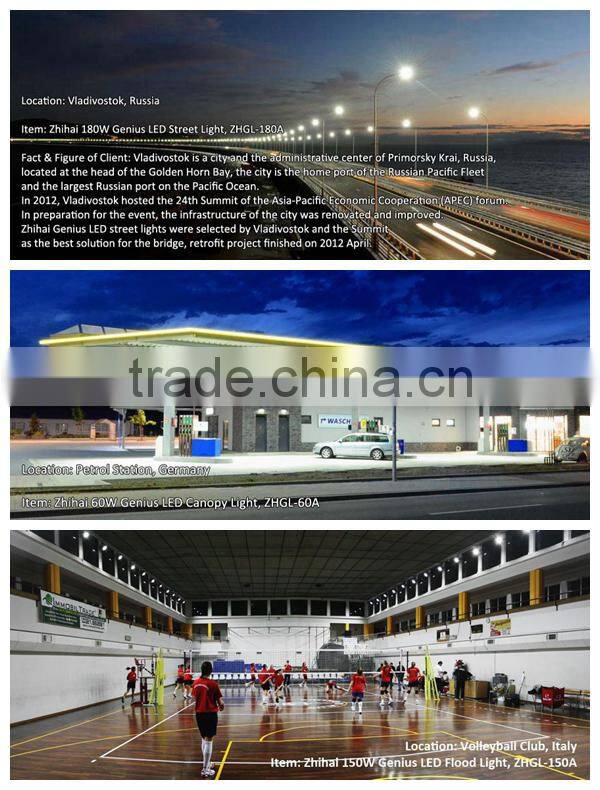

Projects:

Trade Shows

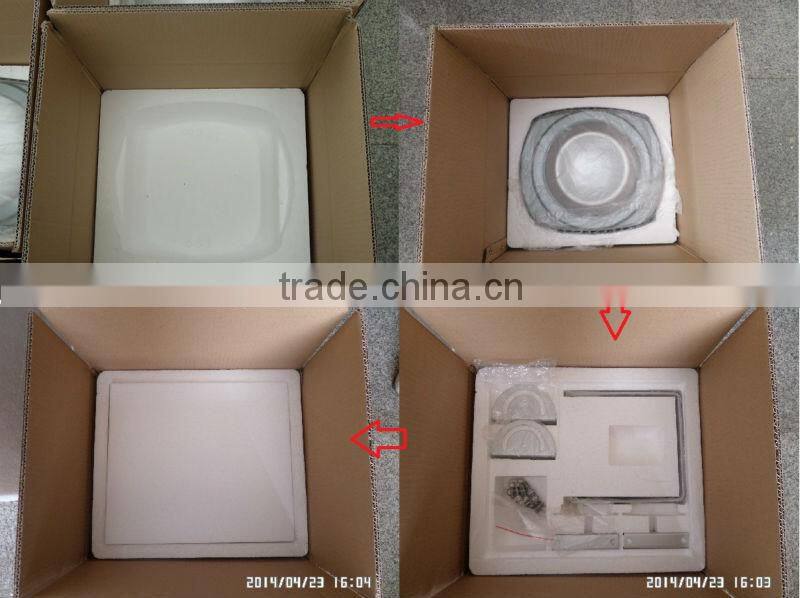

Packaging & Shipping

Model	N.W (KGS)	G.W (KGS)	CTN SIZE (MM)	PCS/CTN
ZHGL-30A	8.1	12/13.5	430430320	1
ZHGL-60A	8.1	12/13.5	430430320	1
ZHGL-90A	8.1	12/13.5	430430320	1
ZHGL-120A	8.1	12/13.5	430430320	1
ZHGL-150A	8.1	12/13.5	430430320	1
ZHGL-180A	8.1	12/13.5	430430320	1
ZHGL-210A	8.1	12/13.5	430430320	1
ZHGL-270A	8.1	12/13.5	430430320	1

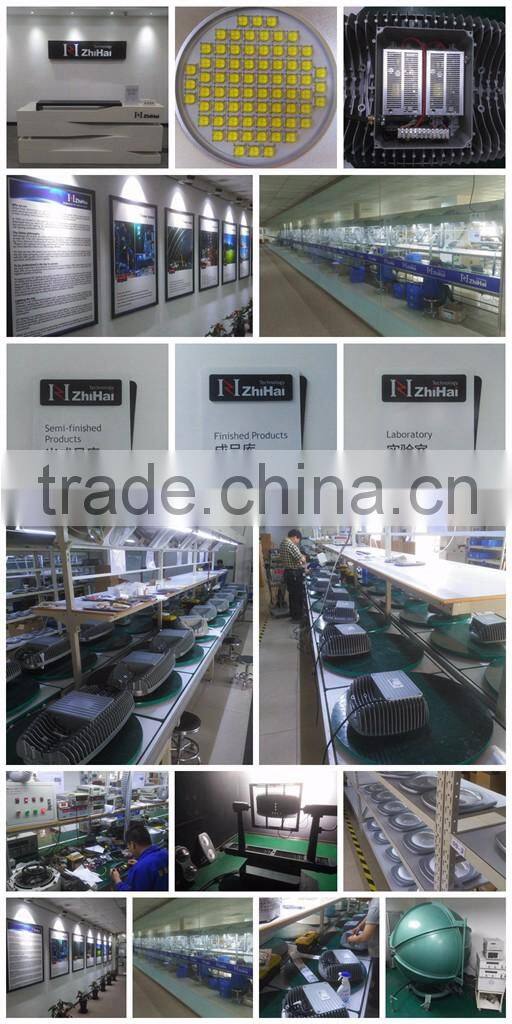

Company Information

Zhihai Power Technology Co., Ltd. was established in 1998, before 2006 we were one of the most advanced provider of power supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.

In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting, and very quickly, we became one of the leading and most professional LED lighting company in China.

Technology and quality are always playing key roles on Zhihai philosophy, we are holding the "Xi'an LED Lighting Engineering Laboratory" which is authorized and supported by China National Development and Reform Commission, and we are also holding the "Shaanxi LED Lighting Technology and Research Center" which is authorized and supported by China National Science and Technology Ministry. We have more than 10 professors and doctors in our company R&D dep. and more than 30% of our employees have bachelor or higher degrees and fully trained.

Till 2012 we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are TUV, CE, SAA, C-tick and RoHS certificated, and we are also applying UL.

We are working on high quality and professional LED lighting products, and more than manufacture, we are also providing our clients with lighting layout design and brightness calculation of projects. Zhihai would always be your first choice of professional LED lighting supplier.

Our Services

Trade Terms

1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping , or Western Union for small amount .

2. Lead time : normally in 5~7 days after deposit received

3. Shipping port: Tianjin, China

4. Discounts : We offer discount for big quantity.

FAQ

Q1. Are you a trading company or factory?

We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001 quality standard since 2001 and we are the TUV audited manufacturer.

Q2. How much will the shipping cost of light be?

We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.

Q3. How can I make orders for it ?

Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-10 days for bulk order

We accept mini order.

Q4.How do you ensure the quality ?

We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.

Q5.Do you offer free sample ?

Sample will be charged with same price of bulk order's, not any surcharge will happen.

Q6.How long can I get your reply?

We respond to every inquiry within 1 hours.

contact

Brad Zhang / Business Department / Hong Kong Zhihai Investment Limited

Manufacturer: Zhihai Power Technology / Block A, West Electronic Community, Xi'an, 710061, China

T: +86-29-88258603 ext 819

F: +86-29-88218292
M: +86-13572452745

Skype: live:brad_2981
