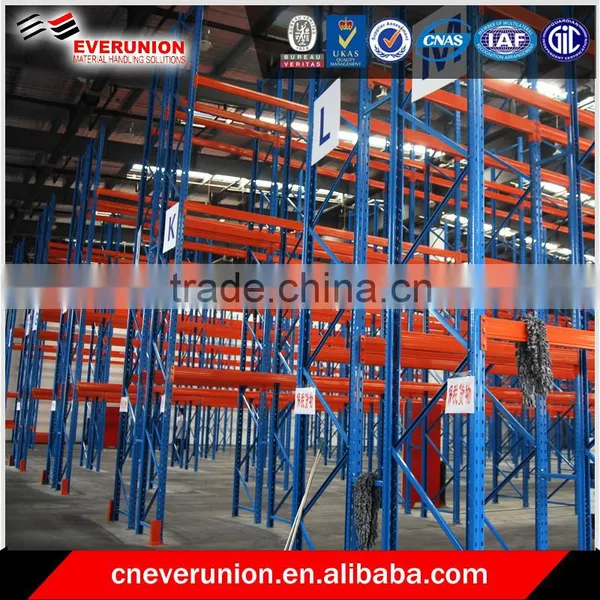

High quality warehouse pelleting Rack System
Double deep pallet racking system is constructed to store two pallets deep,or four pallets deep in a double entry rack.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachments.
1.specifications of double deep racks:
| specification of double deep pallet rack | length | 1000-3900mm | |
| depth | 1200-4000mm | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70& 100*80& 120*95mm thickness:1.8, 2.0, 2.3, 2.5mm | ||
| Beam | 80*50& 100*50& 120*50 & 140*50mm thickness:1.5mm | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons/layer | ||
| remarks | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
2.Features of double deep pallet rack:
1.It is constructed to store 2 pallets deep or 4 pallets deep in double entry rack .
2.It requires the use of a special reach truck with either dual pantograph or sliding fork attachments.
3.It offers an increase of storage density,ideal for storing homegeneous products.
4.Better use of the warehouse space due to the density of the loads stored and narrow aisle design.
5.It is significantly less costly than conventional pallet racks .
6.50% immediate pallet access provides reasonable stock rotation on a FILO(FIRST IN LAST OUT)
1. After long time’s usage, you can check if the bolts are still tight enough to make the racks more safety;
2. If there is some striking on the upright protector to make it distortion, you can rectify it or contact us for some new;
3. Our racks are assembled, you can adjust them freely based on your actual requests, if need professional guidance, contact freely with our service team for some details.
If you are interested in our products,pls just tell us the following information:
1).Size of your warehouse (Length x Width x Clear height)
2).Size(W*D*H) & weight of pallet (after loading)
3).How many pallets in one deep you would like
4).How many levels you would like
