Standard Genius™ LED Projection Light
Features & Characteristic:
l20° beam angle for long distance projection lighting applications
lPatent multi- function design, suitable for all projects
l5-5-10 year warranty
lOSRAM chips, 120 lm/w lamp efficiency *
l80% lumen maintenance over 50,000hours
l10Vdc dimmerable version available
lBuilt-in surge protection, Built-in thermal protection
lMaintenance free
lMercury free, No UV or IR
l Universal input without additional adapter , 80-315Vac, 80-400Vdc
lInstant start and flicker free
lHigh uniformity and color rendering

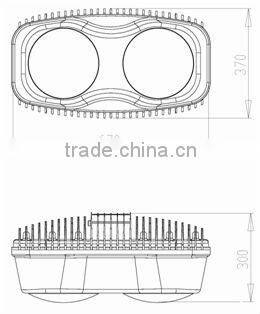

Dimmension:
Lens available for the high mast, stadium, crane, further lighting projects and so on.
20 beam angle
Parameter:
Model: |
ZHGL-210P |
ZHGL-270P |
ZHGL-400P |
|
Power Consumption: |
LEDs: |
189W |
243W |
360W |
Driver: |
21W |
27W |
40W |
|
Total: |
210W |
270W |
400W |
|
Initial Lumen Flux: |
23100 lm |
29700 lm |
44000 lm |
|
Replace HID Lamp: |
400-600W |
600-800W |
800W-1000W |
|
Dimension: |
670x370x300mm |
|||
Net Weight: |
16kg (35lbs) |
|||
Color Temperature: |
4000K (warm white) / 6000K (cool white) |
|||
Color Rendering: |
≥Ra75 |
|||
Working Life: |
≥50000Hrs |
|||
Housing: |
Copper free aluminum |
|||
Lens: |
Tempered Glass |
|||
Coating: |
Cathode EPD |
|||
IP Class: |
IP 65 (Upgradeable to IP 67) |
|||
Insulation Class: |
Class I (Upgradeable to Class II) |
|||
Working Temperature: |
-40C ~ 60C / -40F ~ 140F |
|||
Working Humidity: |
10% ~ 95% |
|||
AC Input: |
80 ~ 315Vac, (347Vac available on request) |
|||
DC Input: |
80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) |
|||
THD: |
<10% |
|||
Power Factor: |
≥0.98 |
|||
Warranty: |
LED Module: |
5 year |
||
Driver: |
5 year |
|||
Housing: |
10 year |
|||

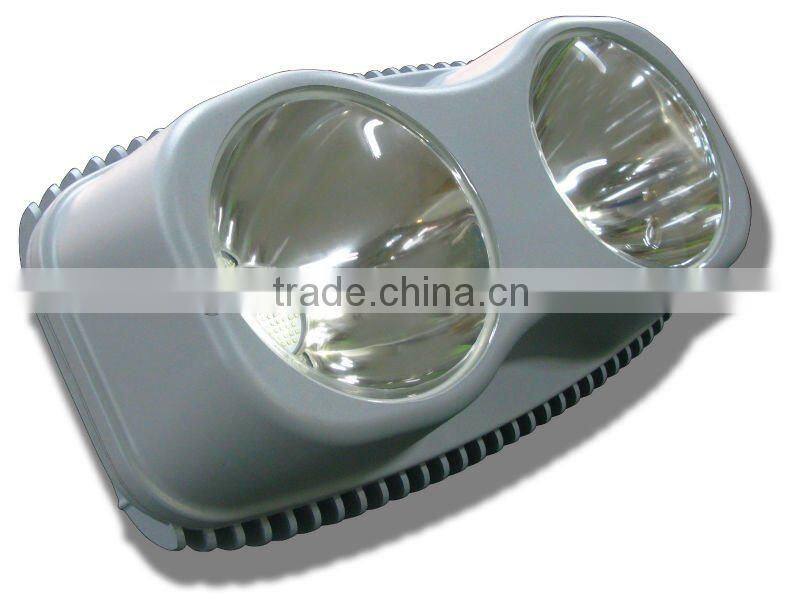

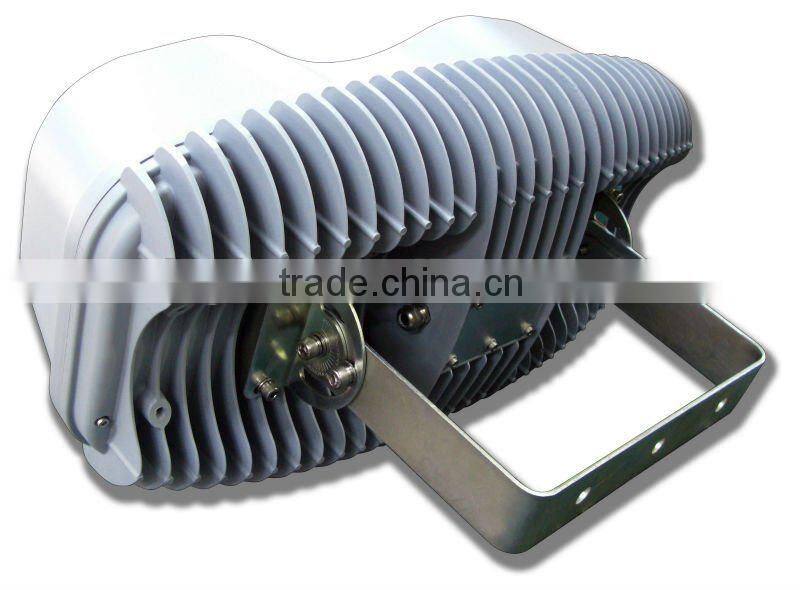

Picture:

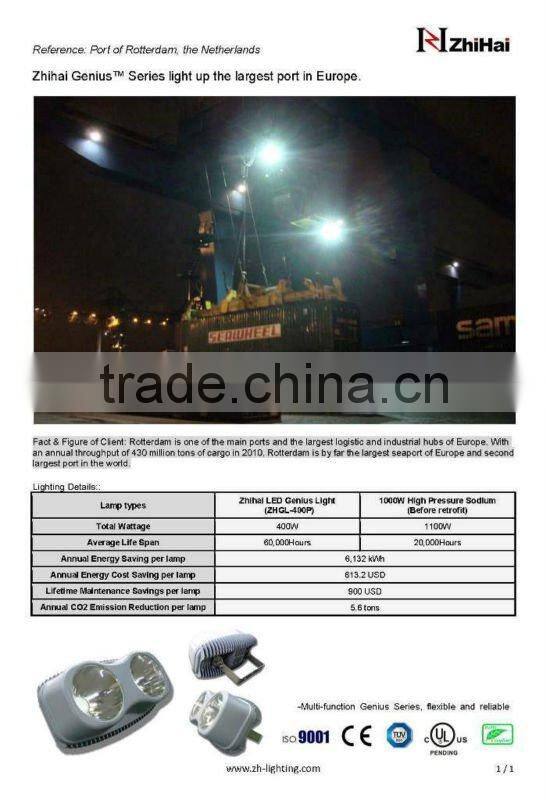

Project:
