Specifications
TUV/CE/RoHS approved projector light bulb5-5-10 year warranty
OSRAM chips,
110 lm/w lamp efficiency
- 20° beam angle for long distance lighting
- Flexible and reliable, a LED light for all professional projects
- Only practical LED light for 1000W HID retrofit
Features & Characteristic of projector light bulb
l 20° beam angle for long distance lighting application
l Patent multi- function design, suitable for all projects
l 5-5-10 year warranty
l Top performance LED chips, 110 lm/w system efficacy
l 80% lumen maintenance over 50,000hours
l 0-10Vdc dimming driver available
l Photocell and motion sensor system available
l Built-in surge protection
l Built-in thermal protection
l Maintenance free
l Mercury free, No UV or IR
l Universal 80-347Vac input without additional adapter
l Instant start and flicker free
l High uniformity and color rendering

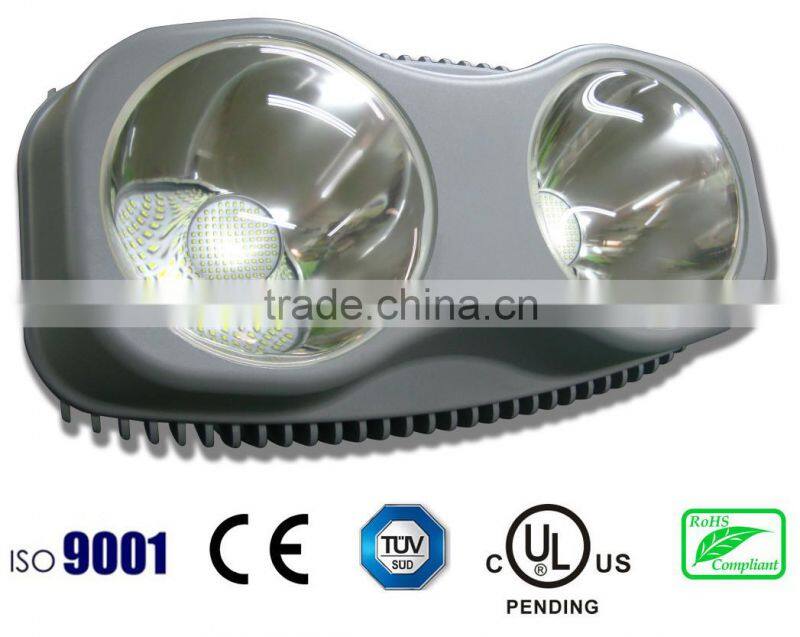

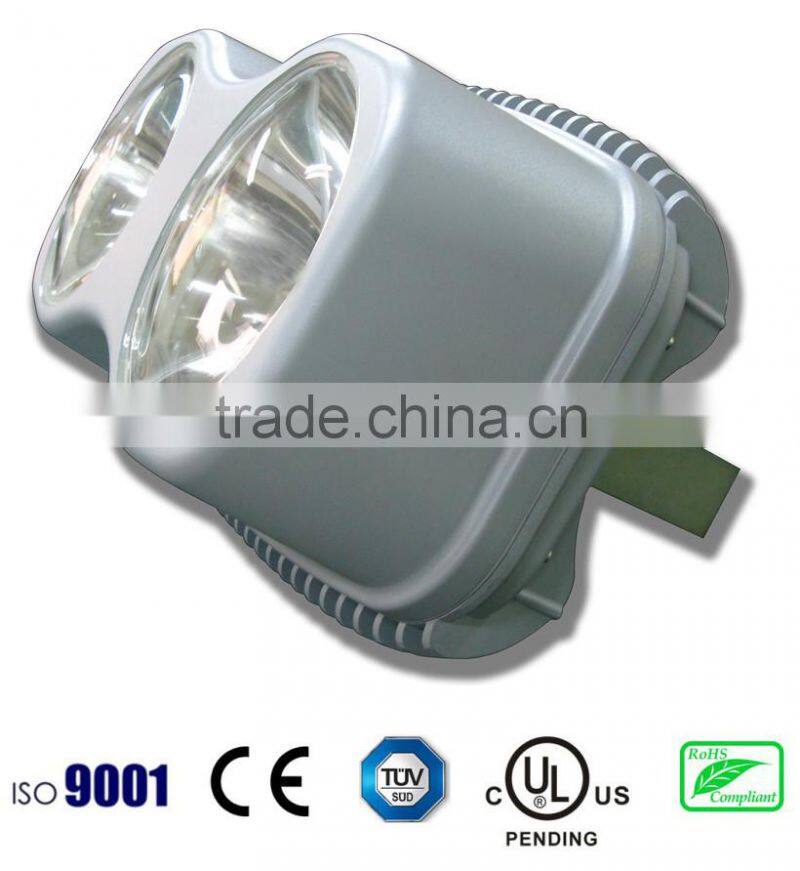

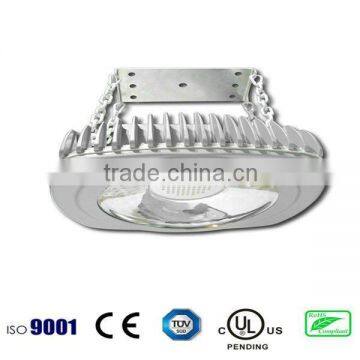

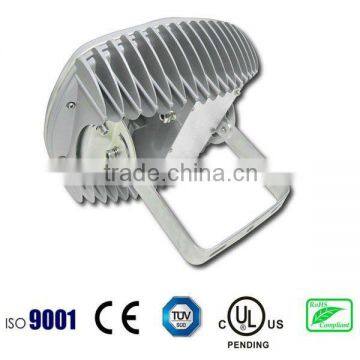

Product Photos of projector light bulb
Typical application of projector light bulb
Street | Bridge | Architecture | Warehouse | Stadium | Tunnel | Garden | Parking | Billboard | Plaza | Show Room | Factory |
Shopping Mall | Petrol Station | Conference Centers | Cold Storage | Floodlighting
Parameter Table of projector light bulb
| Model of night light projector | ZHGL-400P | |
| Power Consumption | LEDs | 360W |
| Driver | 40W | |
| Total | 400W | |
| Initial Lumen Flux (6000K) | 44000 lm | |
| Replace HID Lamp | 1000-2000W | |
| Dimension | 670x370x300mm | |
| Net Weight | 20kg (44lbs) | |
| Color Temperature | 2000K - 6000K | |
| Color Rendering | ≥Ra80 | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum | |
| Coating | Zinc Rich Paint | |
| IP Class | IP 65 (Upgradeable to IP 67) | |
| Insulation Class | Class I (Upgradeable to Class II) | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 80 ~ 315Vac, (347Vac available on request) | |
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |

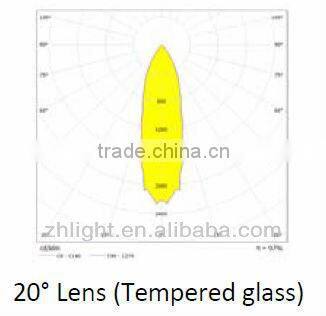

Beam Available of projector light bulb

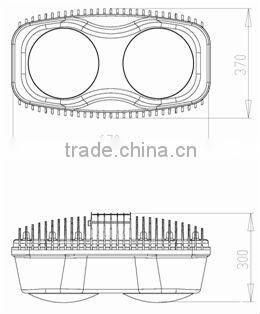

Product Dimension of projector light bulb :
Our Projects: projector light bulb
Calgary International Airport Canada--ZHIHAI 150W LED HIGH BAY LIGHT; ZHHB-150A
Rotterdam Port The Netherland—ZHIHAI 400W GENIUS LED PROJECTION LGIHT;ZHGL-400P
Hockey Club Germany –ZHIHAI 400w GENIUS LED PROJECTION LIGHT; ZHGL-400P
Vladivostok Russia—ZHIHAI 180W GENIUS LED STREET LIGHT;ZHGL-180A
Our Booth : projector light bulb
Certificates: projector light bulb
Model code |
N.W(KGS) |
G.W(KGS) |
CTN SIZE(MM) |
PC/CTN |
|
8 |
9 |
320*320*290 |
1 |
ZHGL-400P | ||||
|
high bay light
Quality: We belive that the quality is the soul of an enter prise and we also think our products will give you an edge over your competitions, so We can serve samples for you to make a test.
Warranty: We also supply 3 / 5 years Warranty for our products. In this meantime, if not man-made factors, we offer replacement, maintenance and other after-sales service.
Zhihai Power Technology Co., Ltd. was established in 1998, before 2006 we were one of the most advanced provider of power supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.
In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting, and very quickly, we became one of the leading and most professional LED lighting company in China.
Technology and quality are always playing key roles on Zhihai philosophy, we are holding the "Xi'an LED Lighting Engineering Laboratory" which is authorized and supported by China National Development and Reform Commission, and we are also holding the "Shaanxi LED Lighting Technology and Research Center" which is authorized and supported by China National Science and Technology Ministry. We have more than 10 professors and doctors in our company R&D dep. and more than 30% of our employees have bachelor or higher degrees and fully trained.
Till 2012 we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are TUV, CE, SAA, C-tick and RoHS certificated, and we are also applying UL. high bay light
We are working on high quality and professional LED lighting products, and more than manufacture, we are also providing our clients with lighting layout design and brightness calculation of projects. Zhihai would always be your first choice of professional LED lighting supplier.
Q1:Where to use this product? high bay light
A1: Sport Field, car park, sea port, stadium and any large emptiness area which require a super bright lighting effect.
Q2: How to choose suitable beam angle?
A2: It is depend on the height of the pole or the roof, depend on how many flux you would like the light be. we can design the simulate effect for you for free.
Q3: Which brand LED Chip do you use?
A3: We adopt Osram or CREE led chip in our product, Osram is the preferred choice, CREE will according to customer's requirement.
